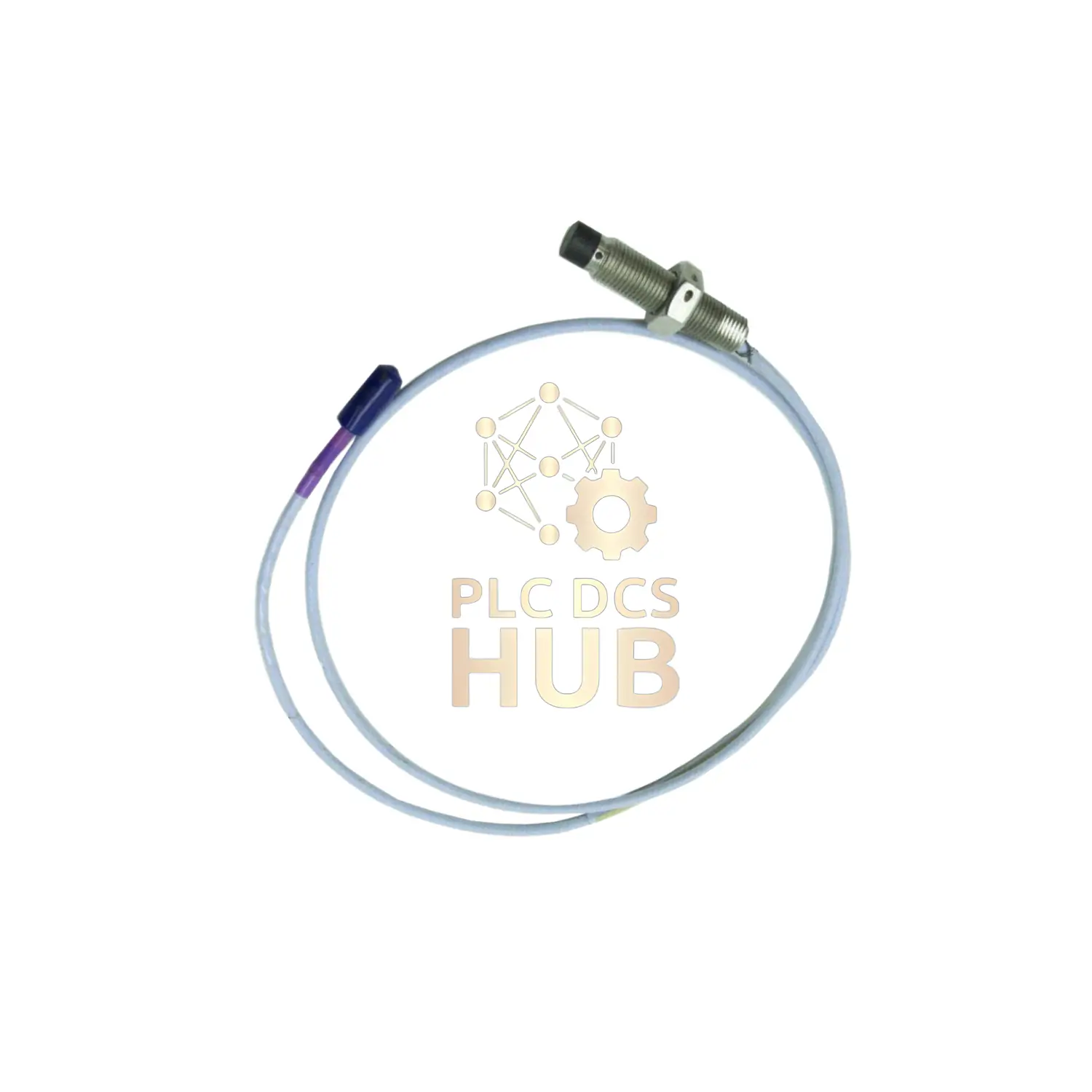

330707-00-10-10-02-00 Bently Nevada 3300 XL 11 mm Probe

Description

Bently Nevada 3300 XL 11mm Probe: Compact Vibration Monitoring Solution

Product Summary

New Bently Nevada 330707-00-10-10-02-00 proximity probe made in USA. Features 5/8-18 UNF thread, 1.0m cable, and compact 1.0″ case. Optional Certificate of Origin available.

Complete Part Number Details

Full ID: 330707-00-10-10-02-00

• 330707: Base model (5/8-18 UNF, no armor)
• 00: 0″ unthreaded length
• 10: 1.0″ case length
• 10: 1.0m cable (3.3 ft)
• 02: ClickLoc connector
• 00: No agency approvals

Key Specifications

• Probe Resistance: 5.9Ω ±0.5
• Thread Engagement: Max 0.938″
• Install Torque: 15.2 N•m (133 in•lb) recommended | 45.2 N•m max
• Temp Range: -51°C to +177°C | Avoid below -34°C
• Bend Radius: Min 25.4mm (1.0″)
• Connector Torque: Finger tight (0.565 N•m max)
• Cable Type: 75Ω triaxial FEP
• Weight: 0.17 kg

Materials & Construction

• Probe Tip: PPS plastic
• Case: AISI 304 stainless steel
• Seal: Viton O-ring (not pressure tested)

Shipping Details

Factory new with 12-month warranty. Ships via FedEx/UPS/DHL. Weight: 0.17kg.

Technical Questions

• Q: What thread sizes are available?
  A: This model has 5/8-18 UNF. Other models offer M16x1.5 or M14x1.5 threads.
• Q: Can I use this in high-pressure systems?
  A: Not pressure tested by default. Contact for custom pressure testing.
• Q: Is this probe armored?
  A: No armor (as specified in base model 330707).
• Q: What’s the minimum cable length?
  A: Available in 1m (this model), 5m, or 9m versions.
• Q: Can I use this with other connectors?
  A: This version has ClickLoc connector (option 02).
