Product Overview — Bently Nevada 3500/05 System Rack
The 3500/05 system rack 128031-01 is the mechanical foundation of the Bently Nevada 3500 Series machinery protection system. It houses monitoring modules, power supplies, and communication interfaces in one secure structure. The rack supports flexible installation and reliable operation in demanding industrial environments.
Configuration Breakdown (Hierarchical Structure)
- Ordering Model: 3500/05-Axx-Bxx-Cxx-Dxx-Exx
- A → Rack Size
- 01 = 19-inch Full-Size Rack (14 slots)
- 02 = Mini-Rack (7 slots)
- B → Mounting Format
- 01 = Rack Mount (EIA rail)
- 02 = Panel Mount
- 03 = Bulkhead Mount (Full rack only)
- 04–05 = Special mounting variations
- C → Agency Approval
- 00 = Standard industrial
- 01 = Hazardous area certified
- 02 = Extended approvals
- D → Reserved configuration
- E → European Compliance
- 01 = CE compliant version
- A → Rack Size
Core Product Advantages
- Central platform for full machinery protection systems.
- Supports multiple monitoring modules simultaneously.
- High structural strength for vibration environments.
- Front access simplifies maintenance work.
- Designed for long continuous operation.
- Flexible mounting reduces installation limits.
- Industrial EMC protection improves system stability.
Technical Specifications
- Manufacturer: Bently Nevada
- Series: 3500 Machinery Protection System
- Model: 3500/05
- Module Capacity: 14 slots (full rack)
- Mini Rack Capacity: 7 slots
- Rack Width: 482.6 mm (full size)
- Mini Rack Width: 304.8 mm
- Rack Depth: 264.16 mm
- Height with barriers: 422.91 mm
- Material: Industrial metal chassis
- Cooling Method: Natural airflow ventilation
- Front module accessibility supported
- Designed for continuous monitoring systems
I/O Module Cover Kit Details

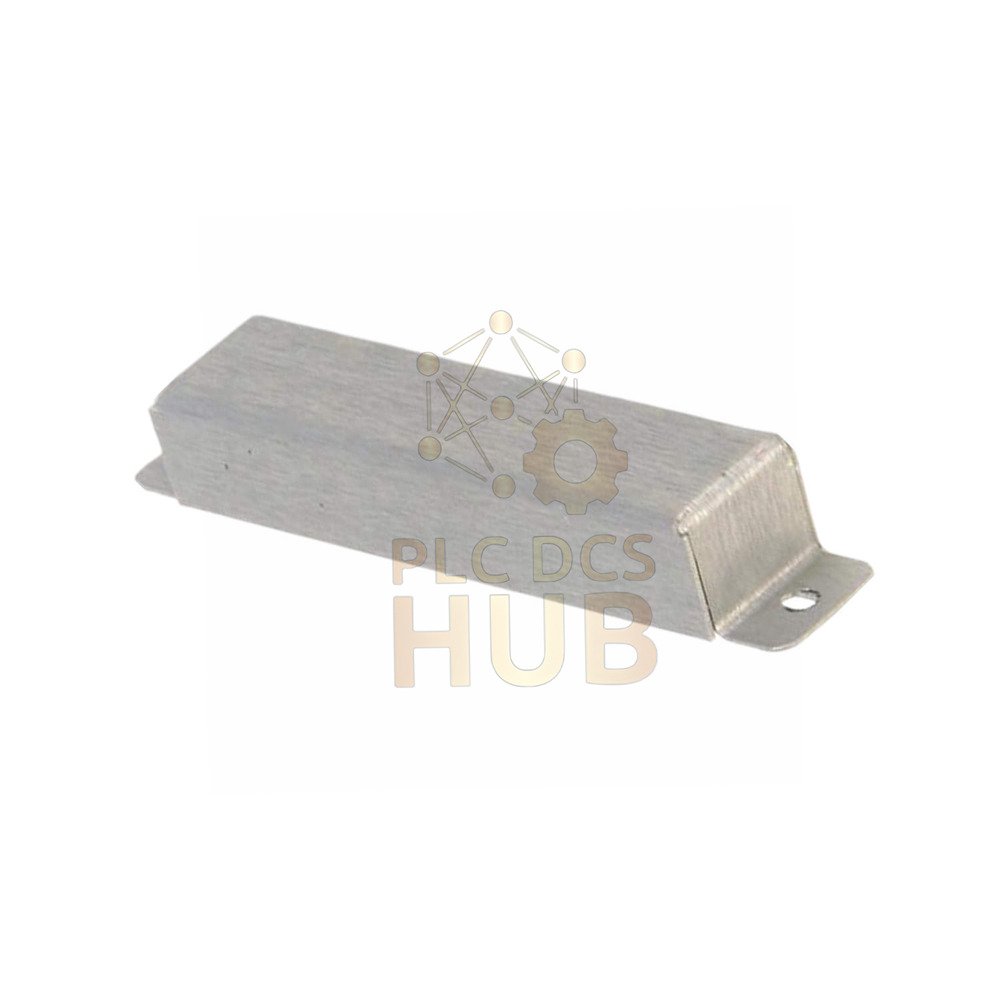

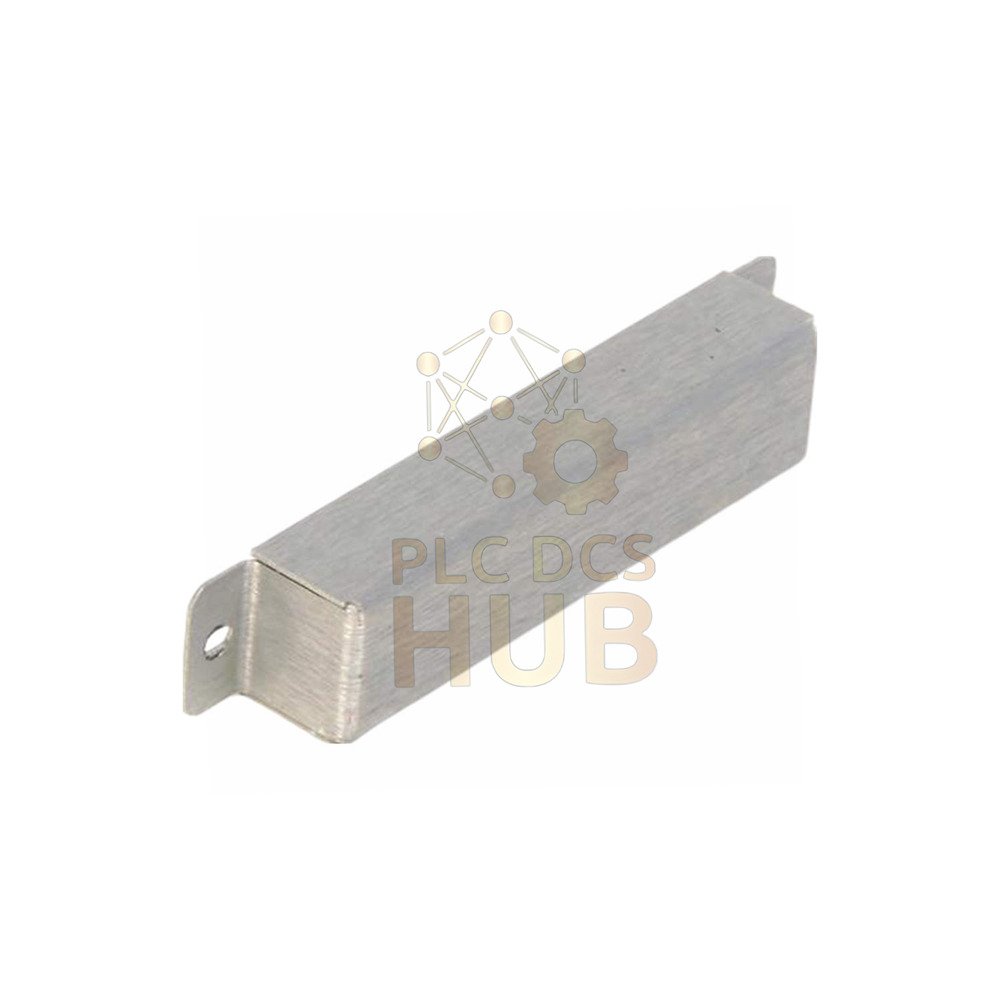

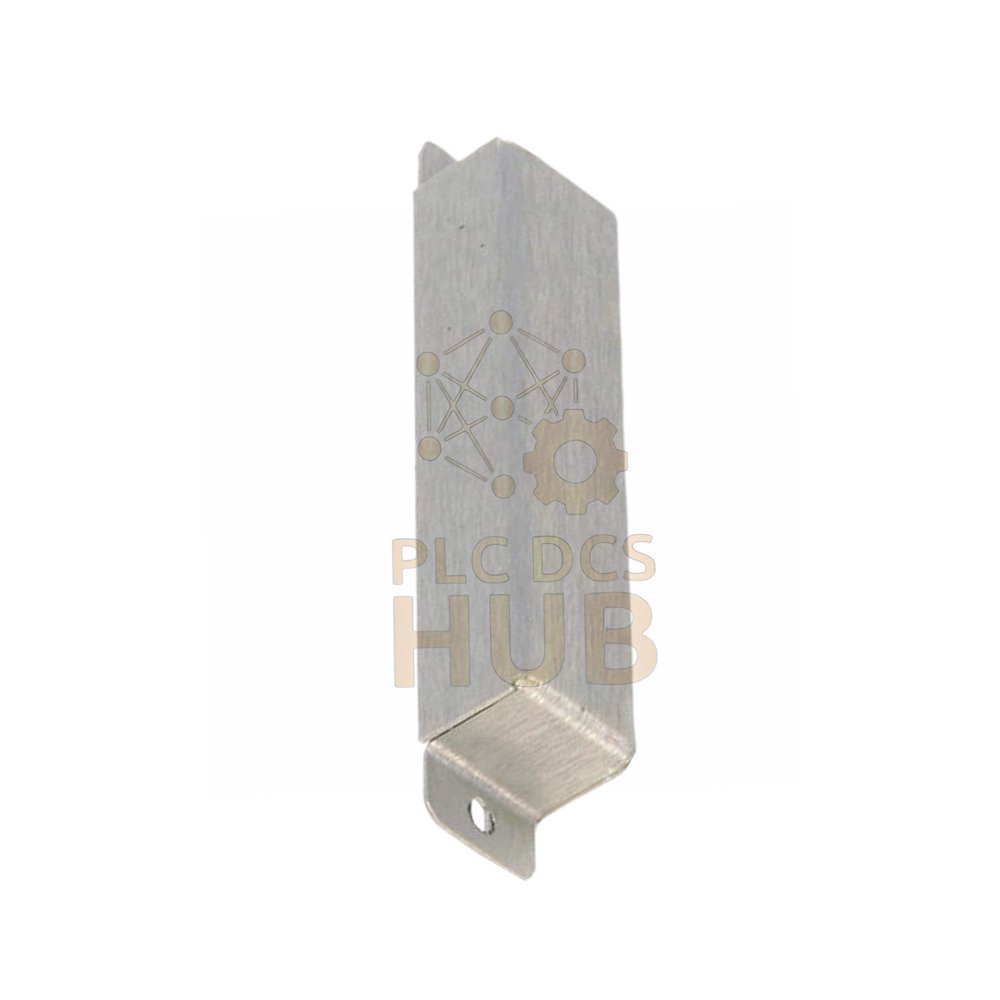

- Cover Part Number: 128031-01
- Component: I/O module protective cover
- Screw Part Number: 04310251
- Screw Quantity: 2 pieces
- Purpose: Protect unused rack openings.
- Improves airflow and dust protection.
Mounting Options Explained
- Rack Mount: Installs into standard 19-inch cabinets.
- Panel Mount: Fits rectangular panel cutouts.
- Bulkhead Mount: Wall mounting with front service access.
- Mini-rack excludes bulkhead mounting.
Compliance & Certifications
- EN 61000-6-2 Industrial Immunity Standard
- EN 61000-6-4 Industrial Emission Standard
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
- RoHS Directive 2011/65/EU
- CSA / NRTL / ATEX / IECEx approvals
- Class I Division 2 and Zone 2 certified
Environmental & Reliability Features
- Suitable for hazardous industrial locations.
- Strong resistance to electromagnetic interference.
- Stable operation under vibration conditions.
- Optimized grounding structure.
- Supports internal safety barrier configurations.
Installation Benefits
- Simple module insertion design.
- Clear slot arrangement reduces wiring errors.
- Front maintenance saves downtime.
- Compatible with existing 3500 infrastructure.
Packaging, Warranty & Delivery
- 1 × 3500/05 System Rack
- I/O cover and screws included (when specified)
- Industrial protective packaging
- 12-Month Warranty
- Shipping via FedEx, UPS, or DHL
Typical Application Scenarios
- Gas and steam turbine monitoring
- Compressor protection systems
- Power plant machinery monitoring
- Oil and gas production facilities
- Large rotating equipment diagnostics
Professional FAQ & Buying Guidance
- How do I choose between full rack and mini rack?
- Select full rack for expansion needs. Choose mini rack for compact systems.
- When is bulkhead mounting preferred?
- Use bulkhead mounting when cabinet depth is limited.
- Why install an I/O cover?
- It prevents dust entry and improves airflow balance.
- Can this rack operate in hazardous zones?
- Yes, approved configurations support Zone 2 installations.
- What should be checked before ordering?
- Confirm slot count, mounting type, and certification requirements.
