Description

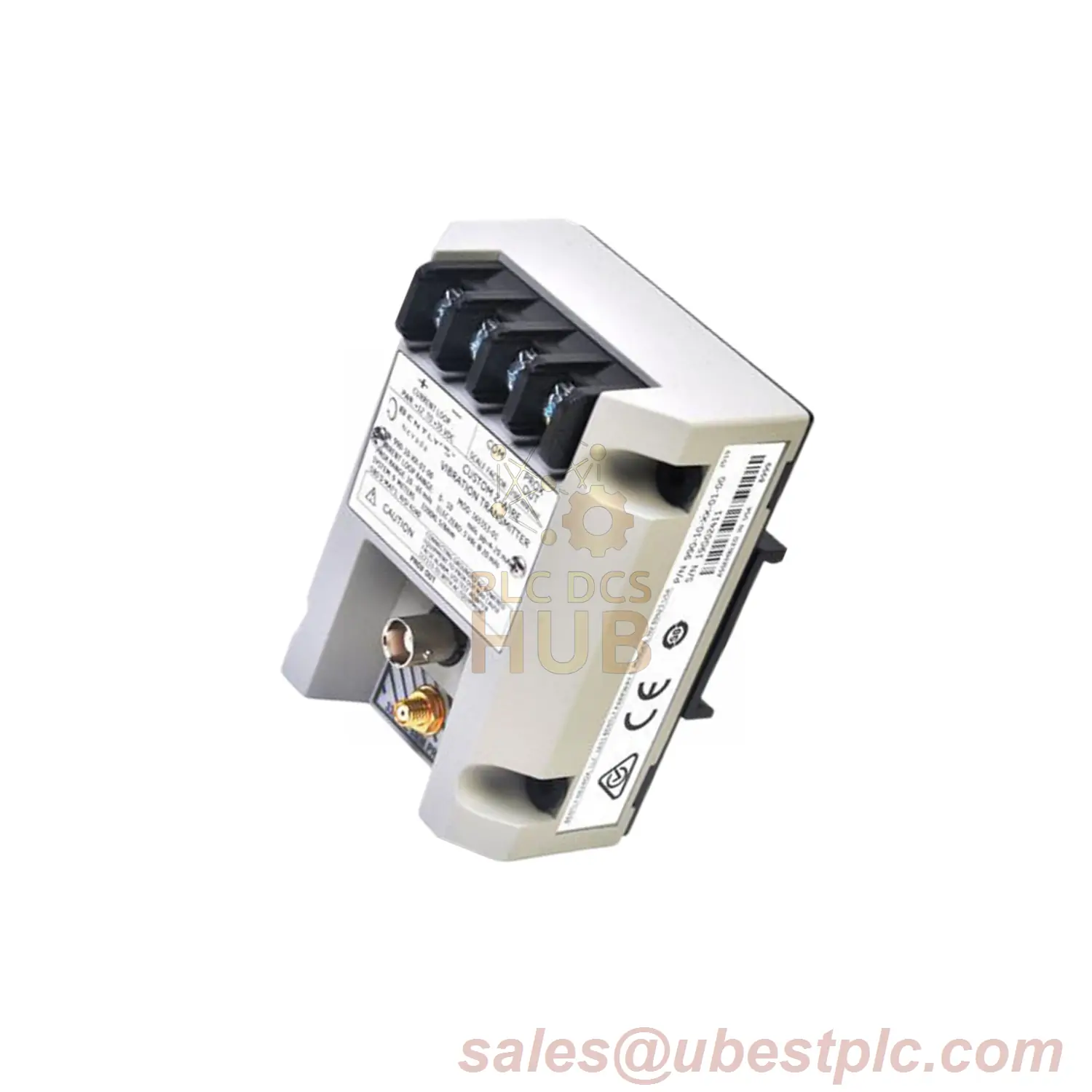

Bently Nevada 990 Vibration Transmitter: Rugged CSA-Certified Solution
Industrial Strength Monitoring
✔ Measures 0-8 mils/200μm vibrations
✔ CSA Division 2 approved (model 990-08-50-03-01)
✔ Includes DIN clips + screws for secure mounting
Essential Specifications for 990-08-50-03-01
???? Range: 0-200μm (±1.5% accuracy)
???? Power: 12-35VDC (28V ideal)
???? Response: 5Hz-6kHz (±3dB)
???? Cable: 3m max BNC connection
???? Weight: 0.9 lbs/0.43kg
???? Power: 12-35VDC (28V ideal)
???? Response: 5Hz-6kHz (±3dB)
???? Cable: 3m max BNC connection
???? Weight: 0.9 lbs/0.43kg
Perfect For
• Paper mill drying cylinders
• Chemical reactor mixers
• Packaging conveyor systems
• HVAC centrifugal fans
Installation Made Simple
1. Mount with DIN clips
2. Set probe gap 20-55 mils
3. Connect 28V power supply
4. Monitor 4-20mA signals
Global Support Package
???? Ships via FedEx/DHL/UPS
???? 12-month full warranty
???? Optional COO certificate
Performance Features
• Auto-shutdown (<3.6mA in 100μs)
• Works with 9.5mm+ metal surfaces
• Handles -40°C to +85°C extremes
• 1000Ω max loop resistance
Common Questions
Q: Suitable for wet areas?
A: Non-hazardous zones only
Q: Replacement parts available?
A: Through authorized partners
Q: Calibration needed?
A: Pre-calibrated for 0-8 mils
