Description

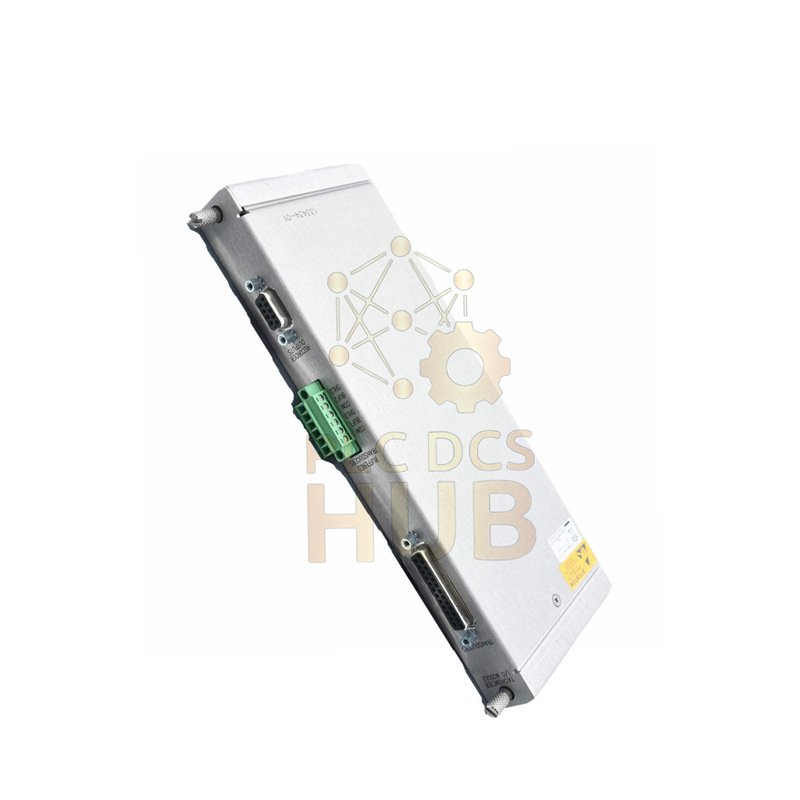

Product Overview
- Brand: Bently Nevada
- Model: 133434-01
- Series: 3500
- Module Type: I/O Module with External Terminations
- This module handles input signals from field devices.
- It installs in the rear slot of a 3500 rack.
- The design supports flexible external wiring.
Main Product Benefits
- Flexible wiring design using external blocks.
- Stable signal input for monitoring systems.
- Compact size saves rack space.
- Easy maintenance without rack removal.
Electrical Characteristics
- Input Signal Range: +10.0 V to −24.0 V
- Input Impedance:
- 20 kΩ for standard configuration
- 40 kΩ for TMR systems
- 7.15 kΩ with internal barrier
- Power Consumption: About 5.8 W typical
- Signal Stability: Designed for low noise environments
Mechanical Specifications
- Dimensions: 241.3 x 24.4 x 163.1 mm
- Weight: About 0.46 kg
- Rack Slot: One full-height rear slot
- Mounting: Direct rack installation
System Integration Notes
- External termination blocks are required.
- Cables must be ordered separately.
- Internal termination modules are not compatible.
- Bussed blocks are used only with TMR setups.
Additional Technical Highlights
- Supports long-term continuous operation.
- Designed for industrial vibration systems.
- Stable performance across load changes.
- Optimized for clean signal routing.
Typical Applications
- Machinery condition monitoring
- Plant protection systems
- Multi-channel signal routing
- Critical equipment supervision
Professional FAQ
- Can this module work without termination blocks?
- No. External blocks are required for operation.
- Is this module suitable for TMR systems?
- Yes. Use bussed termination blocks only.
- What should I check before ordering?
- Confirm rack type and termination method.
- Does impedance choice affect performance?
- Yes. Match impedance to system design.
- Buying advice for upgrades?
- Ensure compatibility with existing I/O modules.
Packaging, Warranty and Shipping
- Secure industrial packaging included.
- Warranty: 12 months.
- Worldwide delivery via FedEx, UPS, or DHL.
