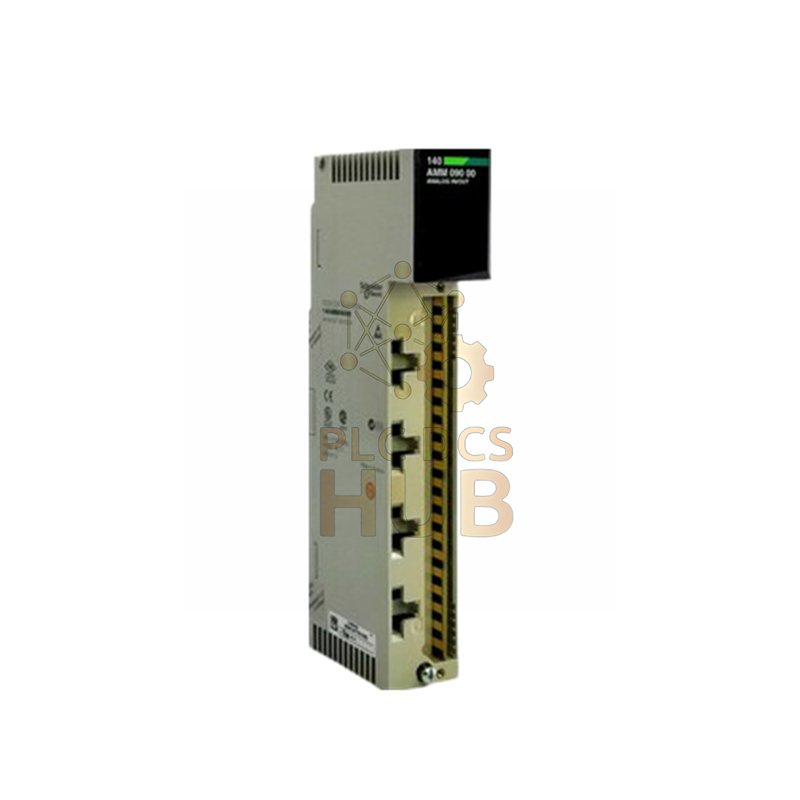

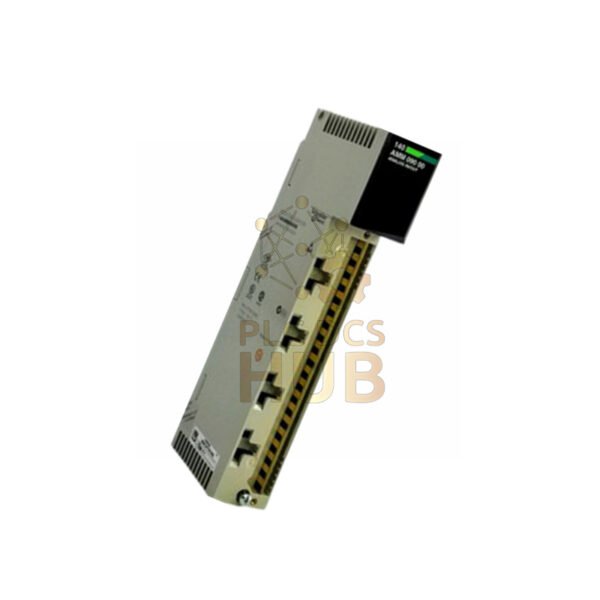

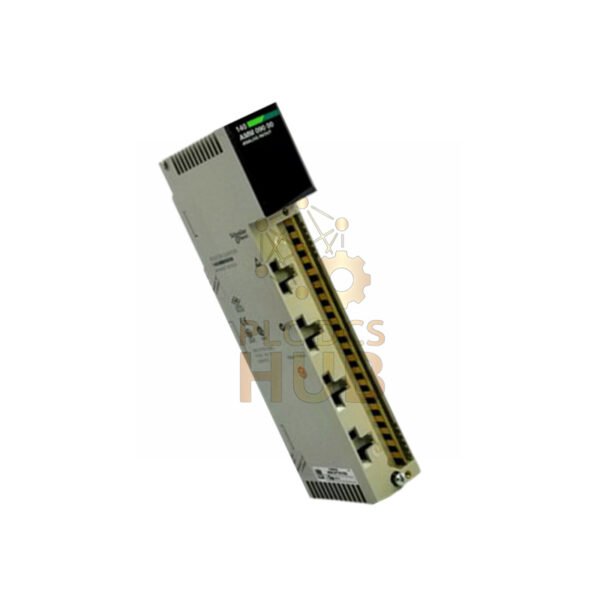

Schneider Electric 140AMM09000 Analog Mix Module
Two modules in one. The 140AMM09000 combines inputs and outputs. It has 4 analog inputs and 2 analog outputs. This saves space in your Modicon Quantum PLC rack. Perfect for compact control systems.
- Learn more: Download Full Manual (PDF)
- Quick help: Contact: +86 158 8020 0923
- Fast shipping: FedEx, UPS, DHL available
What This Module Does
The 140AMM09000 is a mixed analog module. It reads signals from sensors (inputs). It also sends commands to devices (outputs). This makes it very flexible. For any Inquiry, Contact: +86 158 8020 0923.
Technical Details
Brand: Schneider Electric
Model: 140AMM09000
Type: Analog Input/Output Module
Input Channels: 4
Output Channels: 2
Input Signals: ±10V, 0-20mA, 4-20mA, more
Output Signal: 4-20mA
Input Resolution: Up to 16 bits
Output Resolution: 12 bits
Input Accuracy: ±0.03% at 25°C
Isolation: 500V between channels
Speed: 320ms (inputs), 15ms (outputs)
Power Use: 350 mA from bus
Easy to Use
Install the 140AMM09000 module into your Quantum rack. It needs 5 input words and 2 output words in your PLC program. Connect your sensors and actuators. The LEDs show the status of all 6 channels.
5 Common Questions
1. Can I use different signal types at the same time?
Yes. You can mix voltage and current signals on the input channels.
2. What is the advantage of a mixed module?
It saves space and cost. You get both input and output functions in one module.
3. How fast are the readings?
The inputs update every 320ms. The outputs update faster, every 15ms.
4. Is there protection against wiring mistakes?
Yes. The module can handle overvoltage up to 50V on inputs.
5. What is the warranty?
We offer a solid 12-month warranty on this product.
Quality Promise
This module meets UL 508 and CSA standards. It works in temperatures from 0°C to 60°C. It is built for industrial environments.
