Description

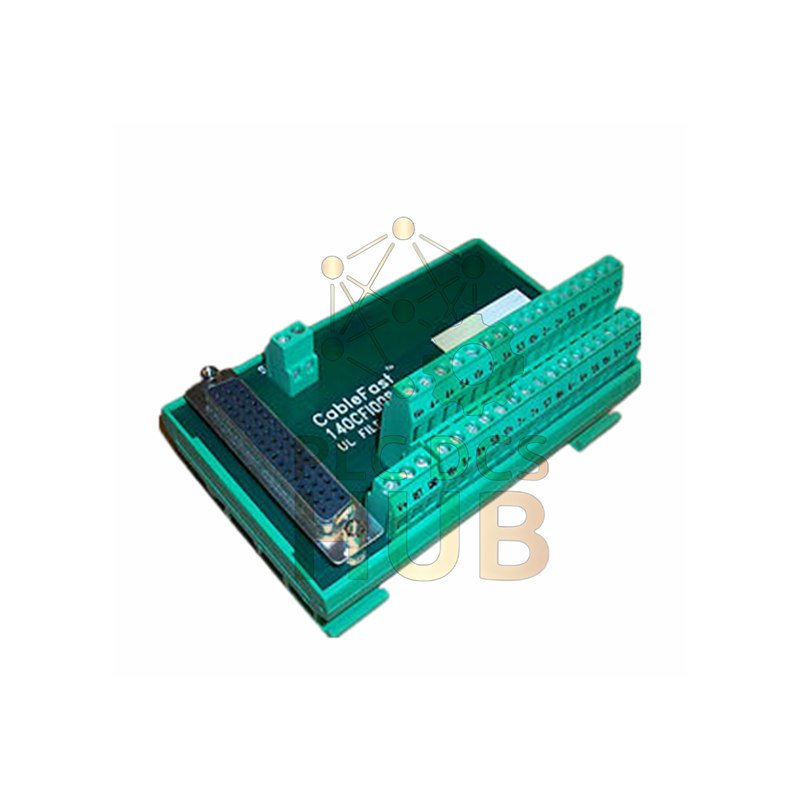

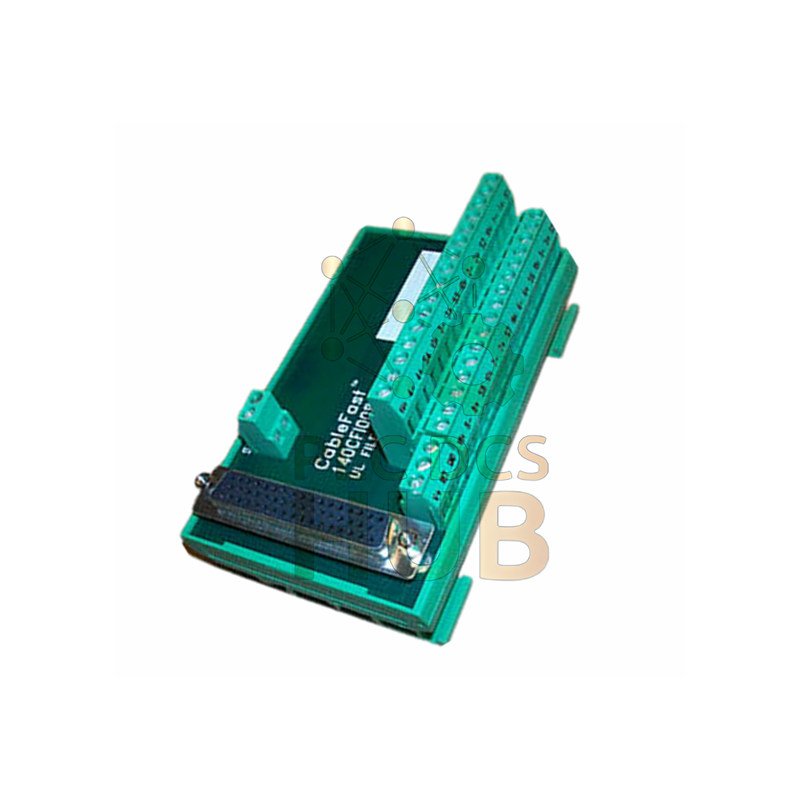

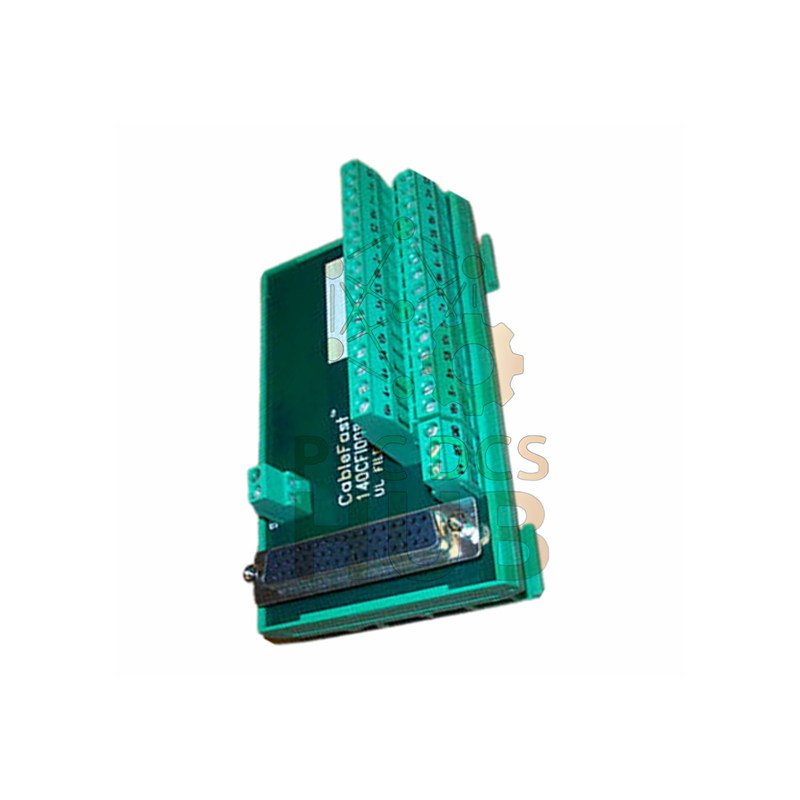

Schneider Electric 140CFI00800 Analog Input Terminal Block
The 140CFI00800 is a CableFast terminal block for Modicon Quantum systems. This non-fused analog input block provides 8 connection points. It works with analog input modules. Easy to install on DIN rails.
Technical Specifications
- Brand: Schneider Electric
- Model: 140CFI00800
- Series: Modicon Quantum
- Type: Terminal Block
- Connection Points: 8 sets
- Terminals per Point: 4 terminals
- Electrical Connection: SUB-D 50 female connector
- Mounting: Standard DIN rail
- Wire Size: Up to 2.5mm²
- Voltage Rating: 300V AC
- Current Rating: 10A
- Temperature Range: -20°C to +60°C
- Material: Polyamide (PA66)
Compatible Modules
Works with:
• 140AVI03000 analog input module
• 140ACI03000 analog input module
Perfect for Quantum I/O systems
Package Information
Includes:
• 1 x 140CFI00800 terminal block
• Installation guide
Size: 10.63″ x 7.09″ x 4.53″
Weight: 14.3 oz
Warranty & Shipping
We provide 12 months warranty. Ships via FedEx, UPS, DHL.
Professional FAQ
- What is the wire capacity?
Handles wires up to 2.5mm² with captive screw terminals. - Is shielding supported?
Yes, dedicated shield connections for noise protection. - What power supplies does it support?
Both field and loop power configurations. - How many terminals total?
32 terminals (4 per connection point). - What safety standards does it meet?
UL certified and IEC compliant.
Quick Start Guide
- Mount on standard DIN rail
- Connect SUB-D 50 connector
- Wire analog signals using captive screws
- Connect shield wires for noise reduction
- Verify all connections are secure
Need complete installation details? Download full manual here.
