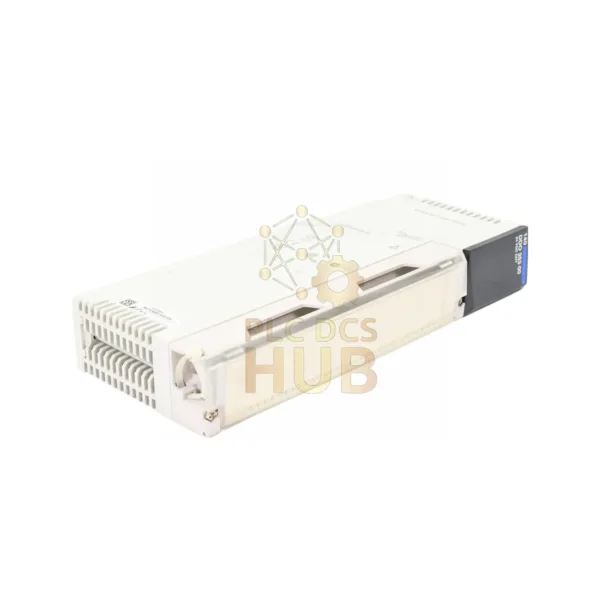

Schneider Modicon Quantum 140DDO35300: High-Density 32-Point Output Module
Industrial-grade DC output module for Modicon Quantum PLC systems. Delivers fast 1ms switching and fused protection. Ideal for harsh automation environments.
Technical Specifications
- Brand: Schneider Electric
- Model: 140DDO35300 (Full suffix: 140DDO35300)
- Output Type: 32-point DC, Positive logic
- Voltage Range: 24V DC (19.2-30V operating)
- Current Capacity: 4A/group (16A total)
- Response Time: ≤1ms (ON/OFF)
- Isolation: 1780Vrms (channel-to-bus)
- Power Dissipation: 1.75W + (0.4V × load current)
Installation Guide
- Mount on Quantum DIN rail
- Allocate 2 output words in PLC configuration
- Verify field power (19.2-30V DC)
- Group wiring: 4×8 channels
Compatibility
Designed for Modicon Quantum PLC systems. Not compatible with M340/M580 platforms.
Packaging List
- 1× Output module (140DDO35300)
- Installation leaflet
Shipping
Global delivery via FedEx, UPS, or DHL. Tracking provided.
FAQ
- Q: Max inductive load?
A: Use formula: L(H) = 0.5 / (I² × switching freq) - Q: Fault indicators?
A: Dual LEDs: Green (active), Red (fuse/power loss) - Q: Group current sharing?
A: 4 isolated groups (max 4A each)
