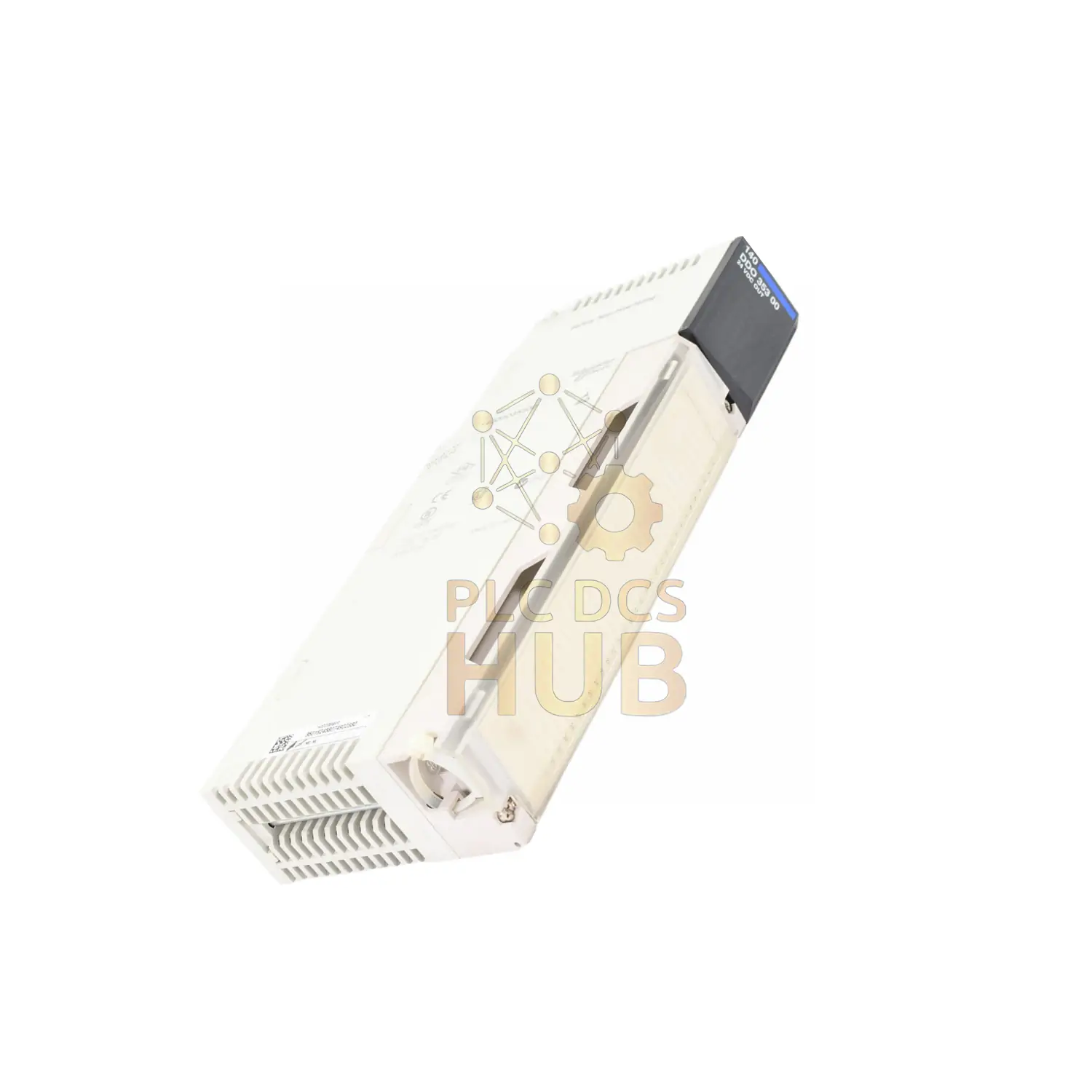

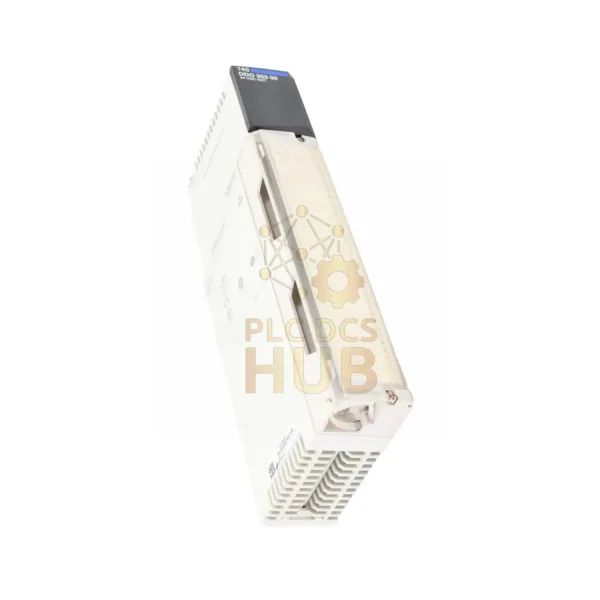

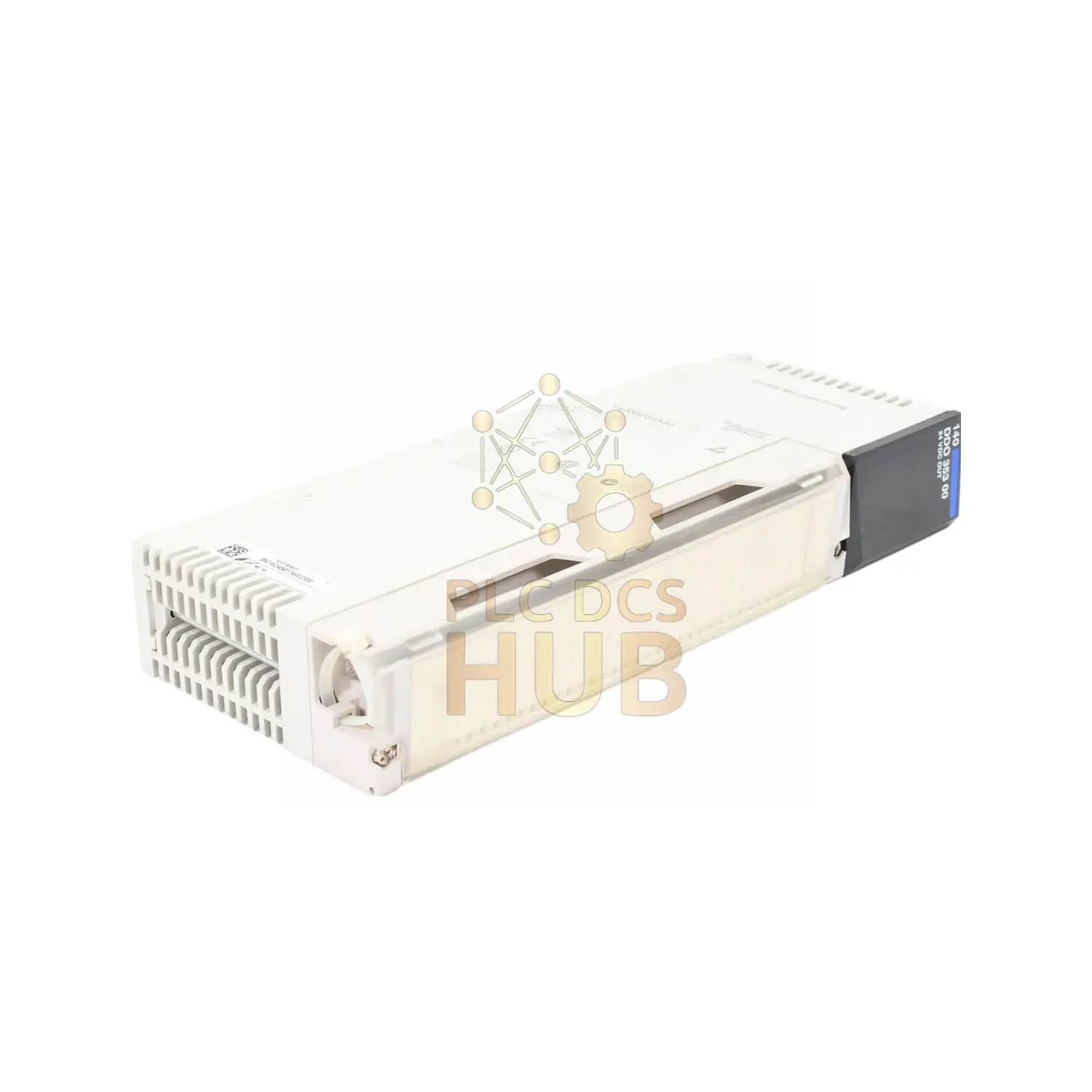

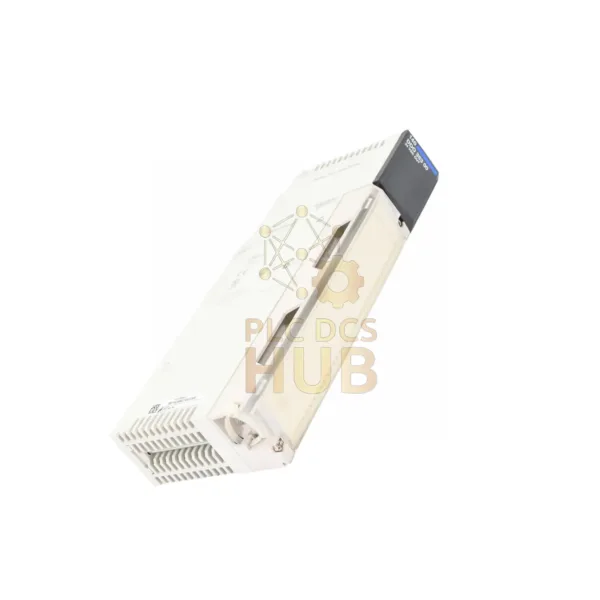

140DDO35310 Schneider Electric Discrete Output Module

Description

Schneider Electric 140DDO35310: Sink-Type 32-Point Output Module

High-density DC output module for Modicon Quantum systems. Features negative logic and fused protection. Optimized for industrial control applications.

Technical Specifications

• Brand: Schneider Electric
• Model: 140DDO35310 (Full suffix: 140DDO35310)
• Output Type: 32-point DC, Negative logic (sink)
• Voltage Range: 24V DC (19.2-30V operating)
• Current Capacity: 4A/group (16A module total)
• Response Time: ≤1ms (ON/OFF switching)
• Surge Protection: 50V max (1s pulse)
• Isolation: 1780Vrms (channels to bus)

Installation Guide

• DIN-rail mounting (Quantum platform)
• Requires 2 output words addressing
• Field power: 19.2-30V DC
• Group wiring: 4 isolated sections

Compatibility

Exclusively for Modicon Quantum PLCs. Verify controller compatibility before purchase.

Packaging List

• 1× 140DDO35310 output module
• Quick-install guide
• Note: Excludes certificates. 12-month manufacturer warranty.

Shipping

Worldwide via FedEx, UPS, DHL. Real-time tracking included.

FAQ

• Q: Logic type difference?
  A: Sink-type (current flows into module)
• Q: Inductive load formula?
  A: L = 0.5 × I² × f (I=current, f=switching frequency)
• Q: Fault indicators?
  A: Red LED (external faults) + 32 green status LEDs
