140DIO33000 | Schneider Quantum Intrinsically Safe 24V Output Module

Description

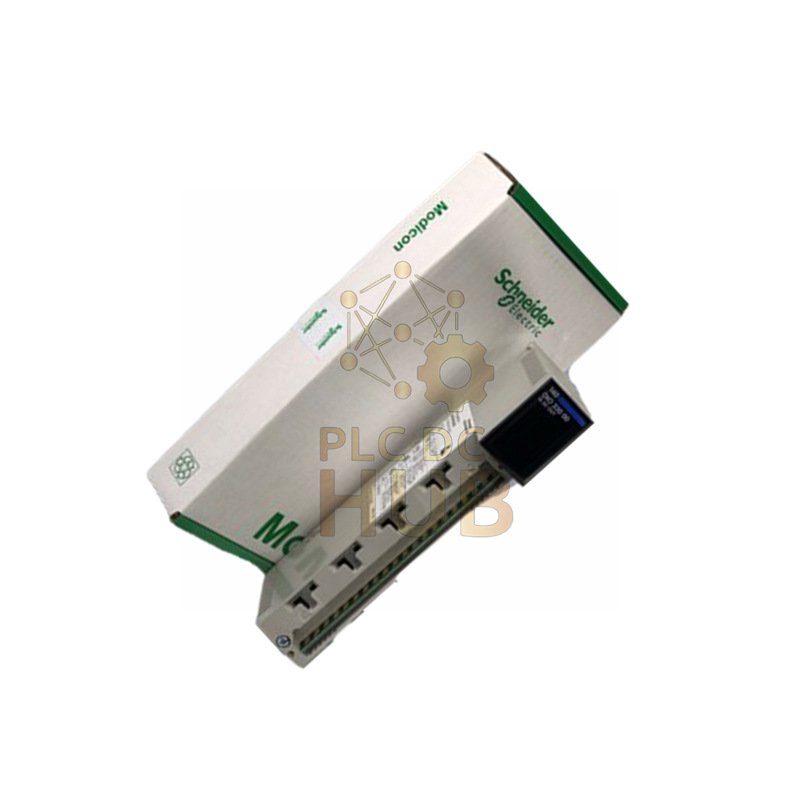

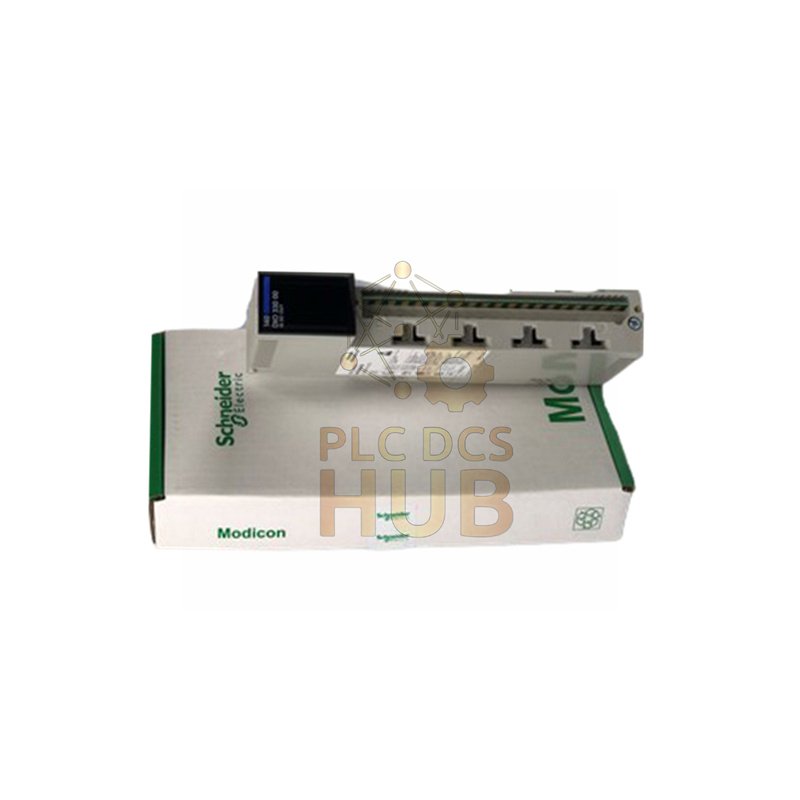

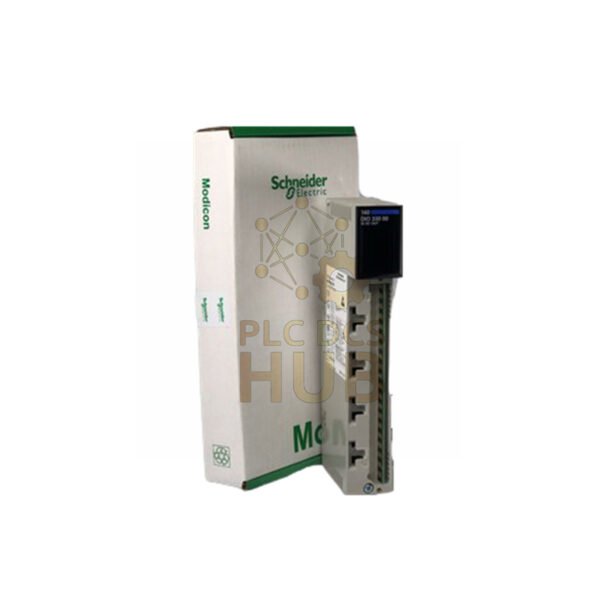

Schneider Electric 140DIO33000: Safe 24V Output for Hazardous Areas

The Schneider Electric 140DIO33000 module is designed for safety. It is an intrinsically safe output module for the Modicon Quantum platform. Use it in hazardous locations with confidence. It provides safe 24V DC control with open collector outputs.

Why Choose This Module?

• Intrinsically Safe: Approved for use in hazardous areas (Zone 20, 21, 22).
• Open Collector Outputs: Simple and reliable switching.
• 24V DC Operation: Compatible with standard industrial devices.
• High Isolation: 2500 V DC isolation for safety.
• Fast Response: 1 ms switching speed.

Key Technical Data

Brand & Model: Schneider Electric 140DIO33000
Platform: Modicon Quantum
Type: Intrinsically Safe Discrete Output
Output Voltage: 24 V DC
Max Current per Point: 45 mA
Max Current per Module: 360 mA
Leakage Current: 0.4 mA per point (Off state)
Response Time: 1 ms (ON and OFF)
Power Dissipation: 5 W
Isolation: 2500 V DC
Operating Temp: 0°C to 60°C (32°F to 140°F)
Certifications: ATEX, FM Class 1 Div 2, GOST

Safety & Installation

This 140DIO33000 module is for use in dusty or explosive environments. It works with Concept, ProWORX, and Unity Pro software. Important: Hot swapping is not allowed. Always follow intrinsic safety guidelines during installation. Need help? Support, Inquiry, Contact: +86 158 8020 0923.

Frequently Asked Questions

• Q1: What does “intrinsically safe” mean?
  A: It means the module is designed to prevent sparking or heat that could ignite flammable atmospheres.
• Q2: Where can I use this module?
  A: It is certified for Zone 20, 21, and 22 hazardous areas (dusty environments).
• Q3: What is the maximum output current?
  A: The total module current is 360 mA, with a maximum of 45 mA per output point.
• Q4: What software supports this module?
  A: It is supported by Unity Pro, Concept V2.2+, and ProWORX software.
• Q5: Why is hot swapping not allowed?
  A: Intrinsic safety standards prohibit hot swapping to prevent any potential ignition risk.

Warranty & Shipping

This product comes with a 12-month warranty. We ship globally using reliable carriers like FedEx, UPS, and DHL for fast delivery.

Download Complete Documentation

Get all the technical details you need:

• Full installation guide
• Wiring diagrams
• Safety certifications
• Application examples

Click to download the full 140DIO33000 manual now.
