Description

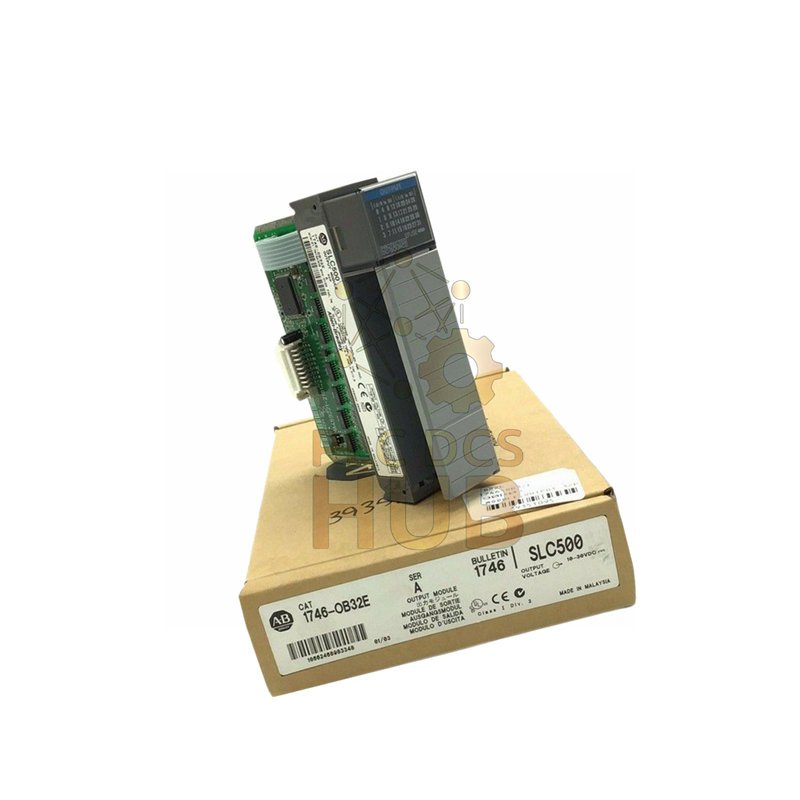

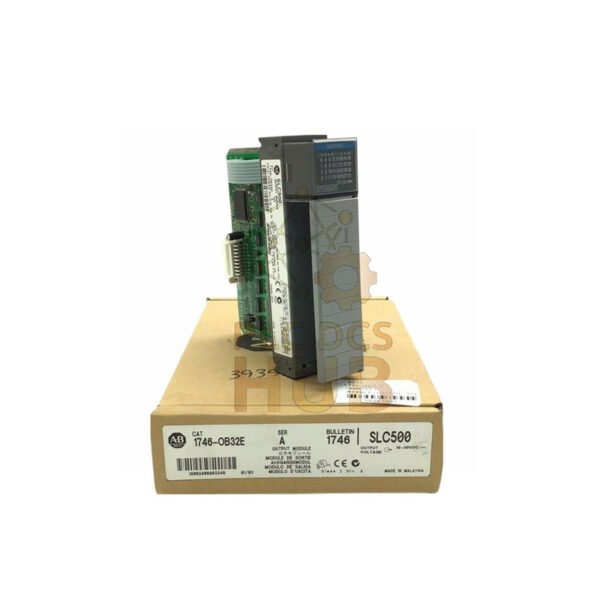

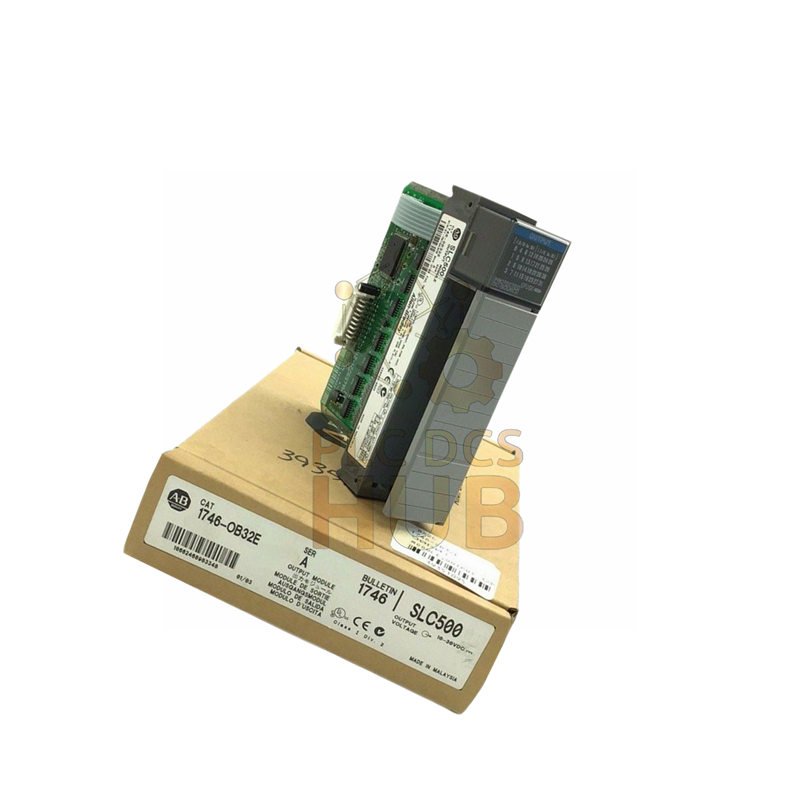

Allen-Bradley 1746-OB32E SLC 500 Digital DC Output Module

The Allen-Bradley 1746-OB32E is a 32-point DC output module for SLC 500 systems. It delivers reliable performance with built-in electronic protection for industrial applications. This module supports both fixed and modular SLC 500 chassis. For full details, download the product manual here.

Technical Specifications

• Brand: Allen-Bradley

• Model: 1746-OB32E

• Type: Digital DC Output Module

• Output Channels: 32

• Voltage Range: 10-30V DC

• Output Current: 0.25A or 0.5A per point

• Module Current: 8A total

• Backplane Current: 190 mA at 5V DC

• Response Time: ON in 0.1 ms, OFF in 1.0 ms

• Protection: Electronic overload and short-circuit protection

• Operating Temperature: -13°F to 140°F

• Terminal Type: Removable, color-coded block

Packaging Details

• One 1746-OB32E module

• Removable terminal block

• Product documentation label

• Shipping via FedEx, UPS, or DHL

FAQ

• Does the module auto-recover after a fault?
  Yes, it automatically resets when a fault clears.

• Can one channel fault affect others?
  No, each channel has independent protection.

• What external protection is recommended?
  Use external fuses for additional safety.
