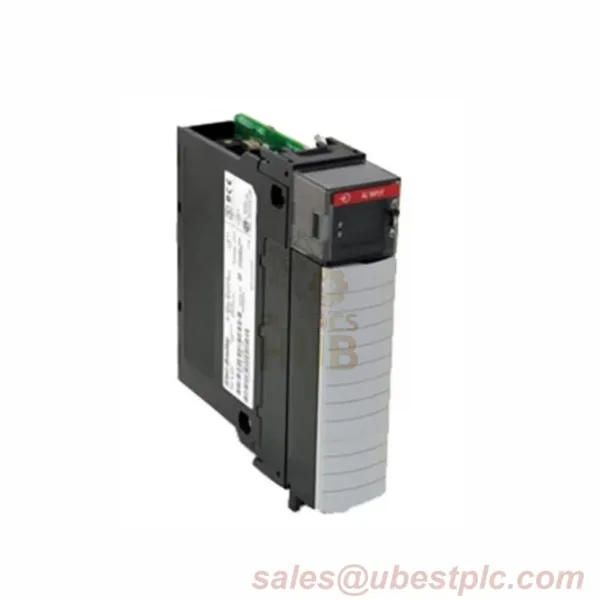

1756-IF16 & 1756-IF16K: Precision Measurement Powerhouse
Ultra-Flexible Industrial Sensing
Rockwell’s 1756-IF16 modules deliver 16-channel precision for ±10V signals and 0-20mA loops. Built for harsh plants with >100dB noise rejection and IEC surge immunity. Perfect for process control or quality monitoring.
Critical Specs
- Inputs: 16 single / 8 diff / 4 high-speed
- Resolution: 15-16 bit (80µV/count @5V)
- Noise Blocking: 80dB normal / 100dB common mode
- Power: 1.86W (Series B) / 2.33W (Series A)
- Surge Proof: ±2kV IEC 61000-4-5 certified
Rugged Build
Survives 50G shocks and -40°C to +85°C. Sealed against humidity (5-95% non-condensing). DIN rail-ready with TBCH/TBS6H terminals.
Wiring Made Simple
- Supports 14-22 AWG wires
- 0.5N•m torque terminals
- 250V isolation (Series A)
Warranty & Shipping
- 12-month defect coverage
- Ships via FedEx/UPS/DHL in 2 days
- Includes module, manual
FAQ
Q: Supports 4-20mA sensors?
A: Yes – 0-20mA range with auto-scaling.
Q: Self-calibration?
A: Built-in calibration for drift-free accuracy.
Q: Works with Studio 5000?
A: Full compatibility – program in ladder logic/FBD.
