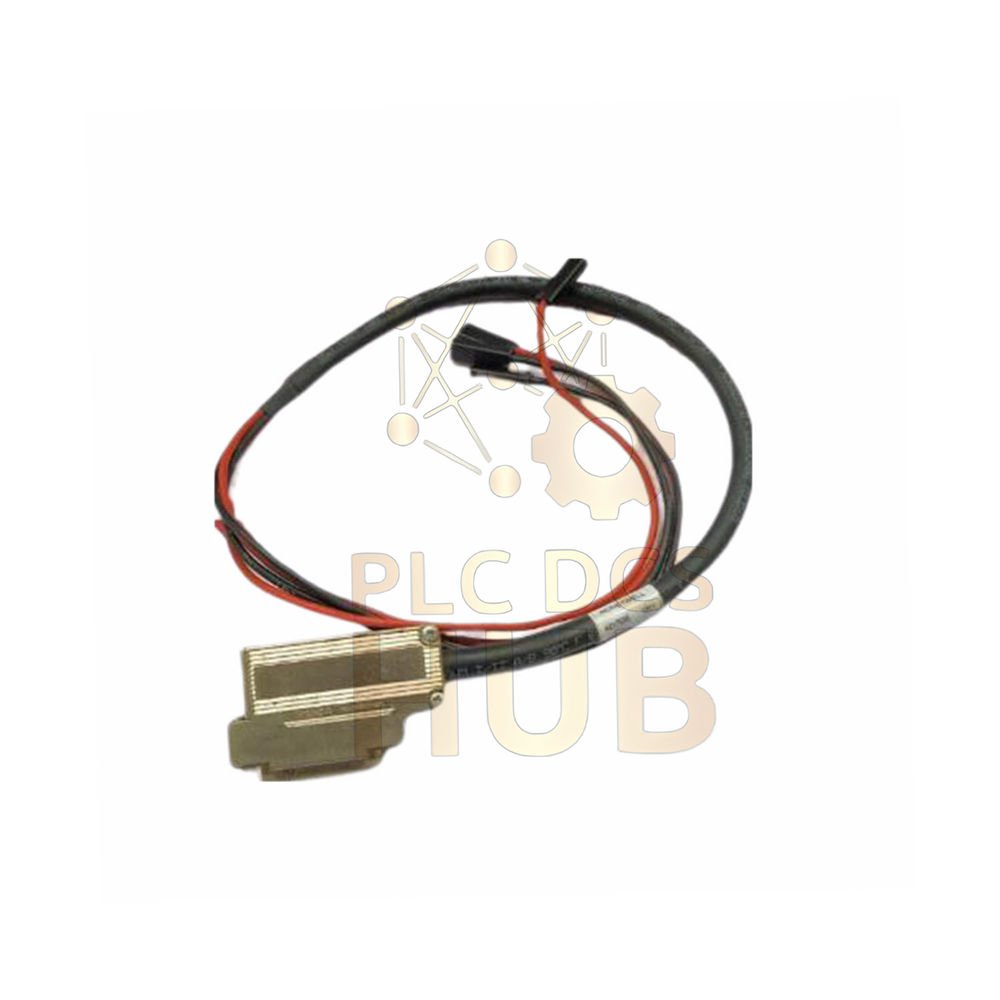

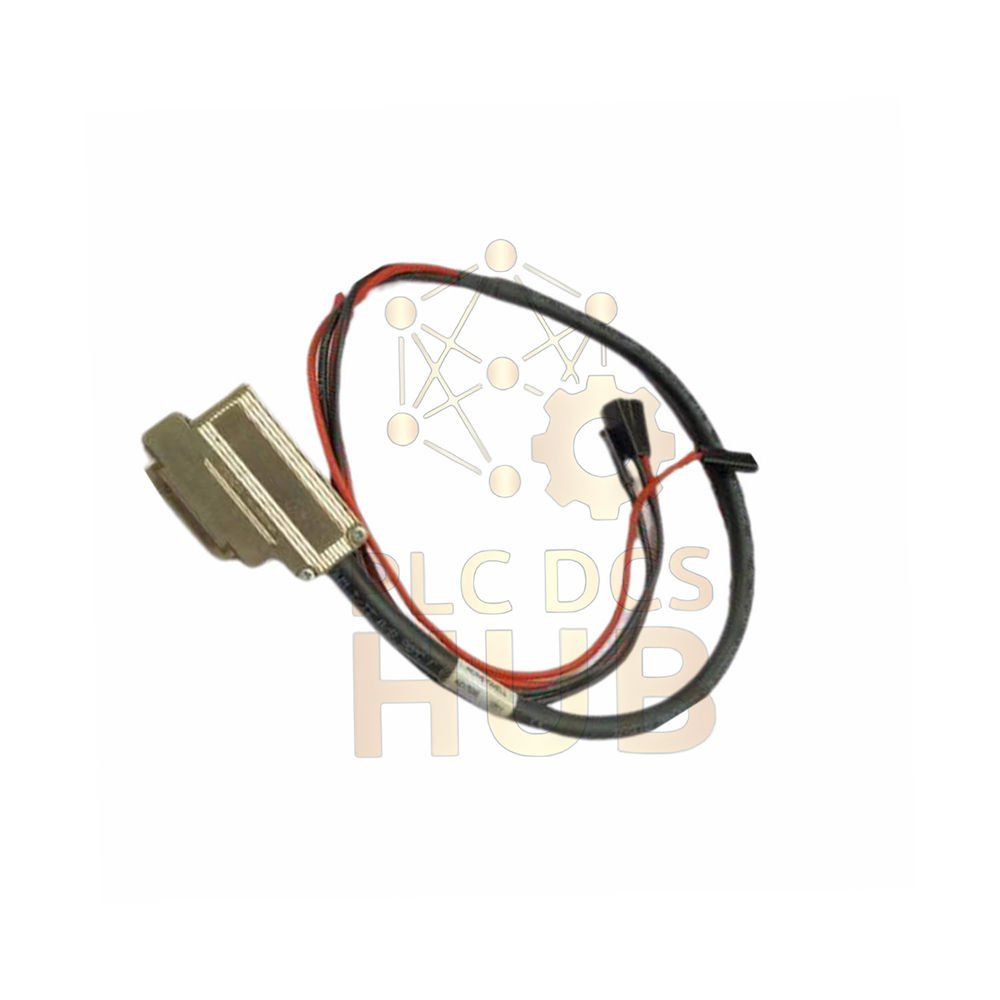

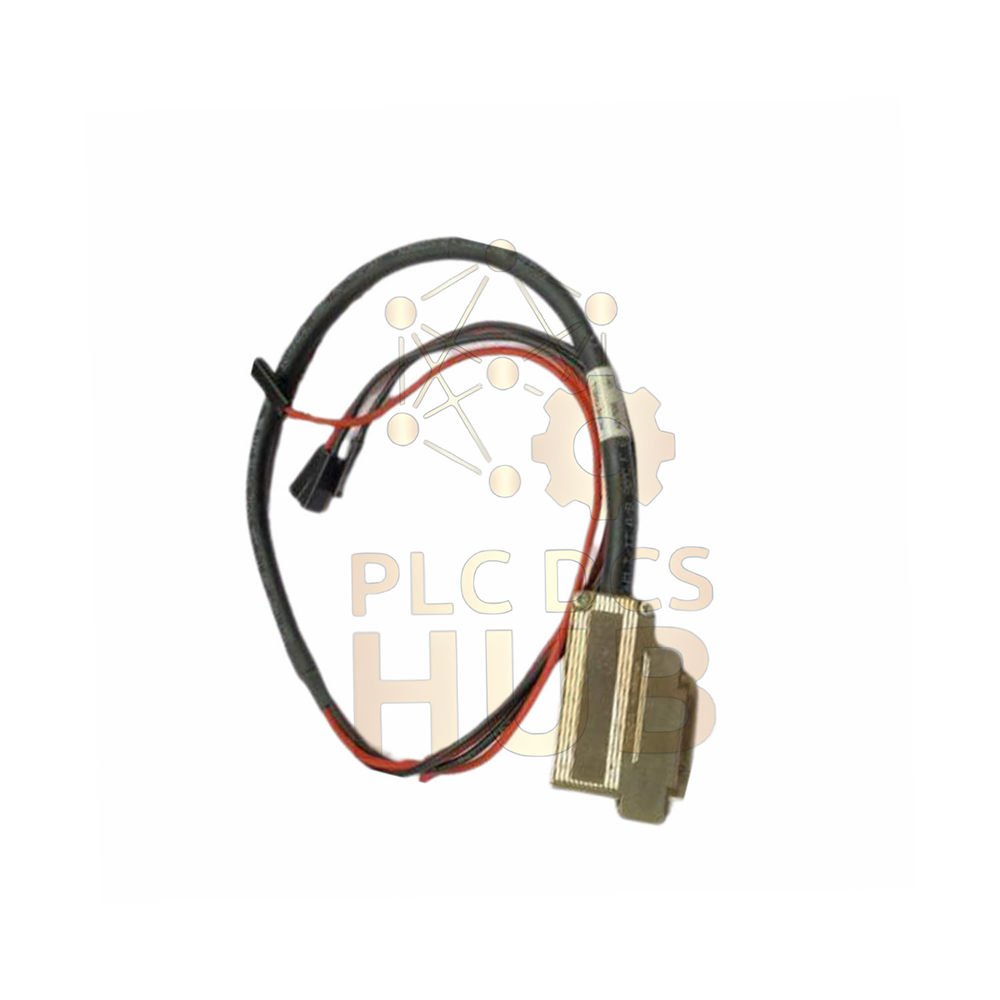

FS-PDC-IOSET Honeywell Power Distribution Cable IO Chassis PDC Cable Set

Description

FS-PDC-IOSET Honeywell Power Distribution Cable Set Overview

FS-PDC-IOSET is a power distribution cable set designed for Honeywell IO systems.
It transfers DC power from MB-0001 main power rails to IO chassis units.
The cable set supports multiple voltage levels.
It ensures stable and safe power delivery in industrial control systems.

Key Product Characteristics

• Brand: Honeywell
• Model: FS-PDC-IOSET
• Supports 24 VDC, 48 VDC, and 110 VDC power distribution.
• Designed for reliable IO chassis power connection.
• Compatible with MB-0001 power rail systems.
• Industrial cable structure ensures stable operation.
• Low profile connector design improves cabinet layout.

Cable Construction Details

• Cable type: CC 600 World 4 × 2.5 mm².
• Strong insulation for industrial environments.
• Stable power transfer with low resistance.
• Designed for long operating life.

Available Cable Length Options

• FS-PDC-IOEP1a – 33 cm
• FS-PDC-IOEP2a – 41 cm
• FS-PDC-IOEP3a – 49 cm
• FS-PDC-IOIP1a – 57 cm
• Multiple lengths allow flexible cabinet installation.

Connector Configuration

• Bus bar side connector: 2-pole squeeze-to-release type.
• Connector type: D-TAB-200-STR.
• IO chassis side: FM5W5 S female housing.
• Low profile 90° connector design.
• Easy installation and strong electrical contact.

Compliance and Certification

• UL approved.
• CSA certified.
• FM certification pending.
• Designed for industrial automation systems.

Manager’s Insight

• FS-PDC-IOSET simplifies power distribution in IO systems.
• Multiple voltage support reduces wiring complexity.
• Reliable connectors improve system safety.
• Short cable lengths reduce signal and power loss.
• Engineers often choose this set for modular control cabinets.
• Good cable layout improves maintenance efficiency.

Compatible Equipment

• Honeywell IO chassis systems.
• Industrial control cabinets.
• Process automation controllers.
• Distributed control systems.
• PLC and industrial power distribution networks.

Typical Application Scenarios

• Factory automation systems.
• Industrial process plants.
• Energy control panels.
• Manufacturing production equipment.
• Large scale control cabinets.

System Diagnostic Advantages

• Stable power path reduces voltage fluctuation.
• Improves reliability of IO chassis modules.
• Helps engineers identify power connection issues.
• Supports efficient troubleshooting.
• Improves overall system uptime.

Shipping and Warranty

• Standard warranty period: 12 months.
• Typical dispatch time: 24–48 hours.
• Global shipping via FedEx, DHL, and UPS.
• Professional protective packaging included.

Professional FAQ

• How do engineers select the correct cable length?
• Measure the distance between power rail and IO chassis before installation.
• Can the cable support different DC voltage systems?
• Yes. The cable supports 24V, 48V, and 110V DC power systems.
• Why is connector quality important for power distribution?
• High quality connectors reduce resistance and improve reliability.
• When should this cable set be replaced?
• Replace cables if insulation damage or connector wear appears.
• What is the best practice for installation?
• Keep cables organized and avoid sharp bends inside the cabinet.
