1756-OA16IK Allen-Bradley Output Module – 16-Point AC Isolated

Description

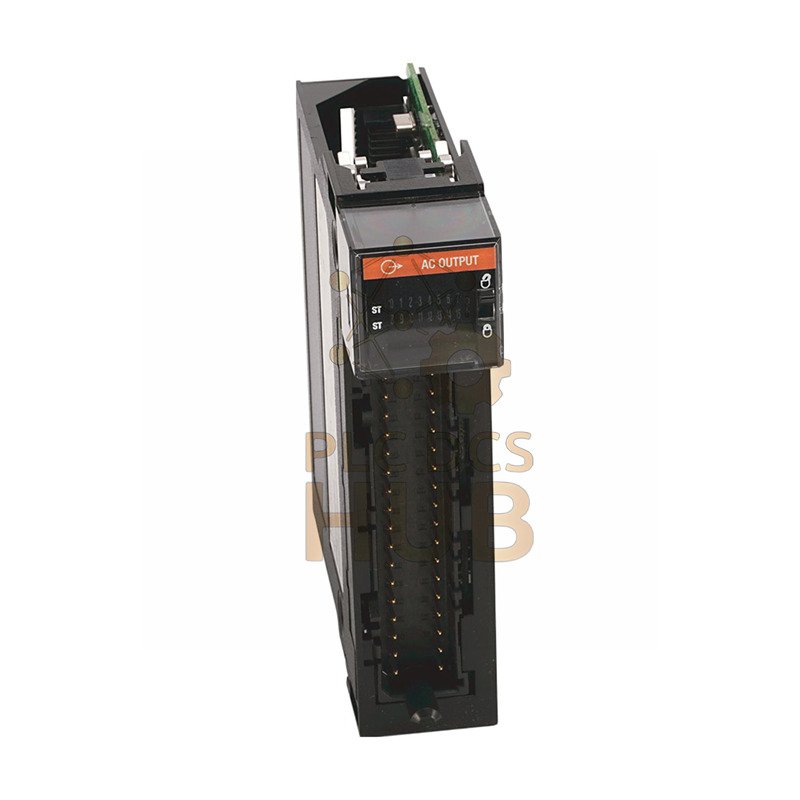

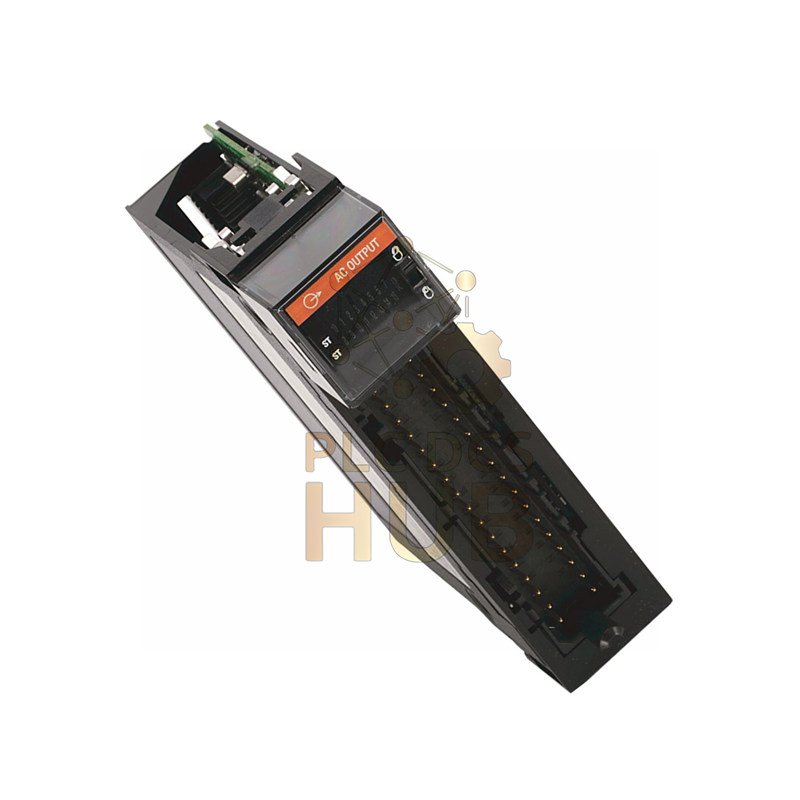

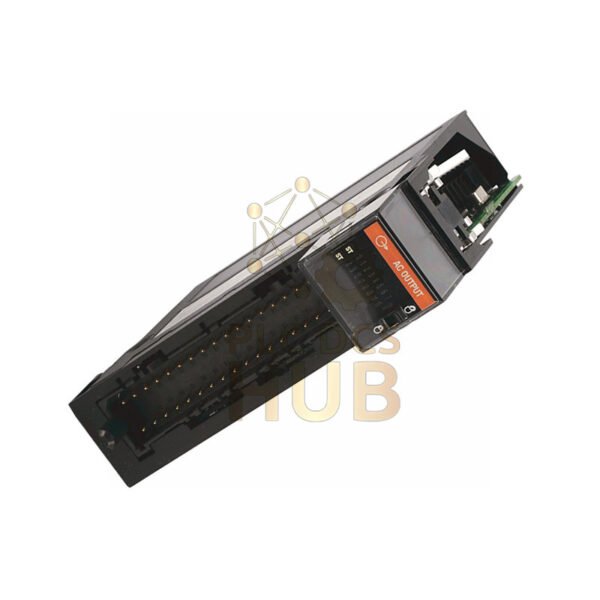

Allen-Bradley 1756-OA16IK ControlLogix AC Output Module

Power your high-voltage applications with the Allen-Bradley 1756-OA16IK, a robust 16-point isolated AC output module from Rockwell Automation. Designed for the ControlLogix platform, this conformally coated module delivers exceptional reliability in harsh industrial environments. Download the complete technical manual here for detailed specifications and installation guidelines.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)

• Model: 1756-OA16IK

• Type: Isolated AC Output Module

• Output Points: 16 individually isolated channels

• Voltage Range: 74-265V AC

• Voltage Category: 120-240V AC

• Frequency Response: 47-63Hz operating range

• Current per Point: 2A @ 30°C, 1A @ 60°C (linear derating)

• Current per Module: 5A @ 30°C, 4A @ 60°C (linear derating)

• Output Delay Time: 1/2 cycle maximum at 60Hz

• Isolation Voltage: 50V continuous (channel-to-backplane)

• Dielectric Strength: 1500V AC for 60 seconds (tested)

• Backplane Current: 300mA @ 5.1V, 3mA @ 24V

• Power Dissipation: 5.5W maximum at 60°C

• Thermal Dissipation: 18.8 BTU/hour

• Operating Temperature: 0 to 60°C (32 to 140°F)

• Storage Temperature: -40 to 85°C (-40 to 185°F)

• Terminal Blocks: 1756-TBCH, 1756-TBS6H (36-pin)

• Conformal Coating: Yes (protection against moisture and contaminants)

• Zero-Crossing Detection: Integrated for reduced EMI

• Surge Current Withstand: 15A for 100ms

• Leakage Current: <2mA per point at 265V AC

• UPC: Please contact for specific value
