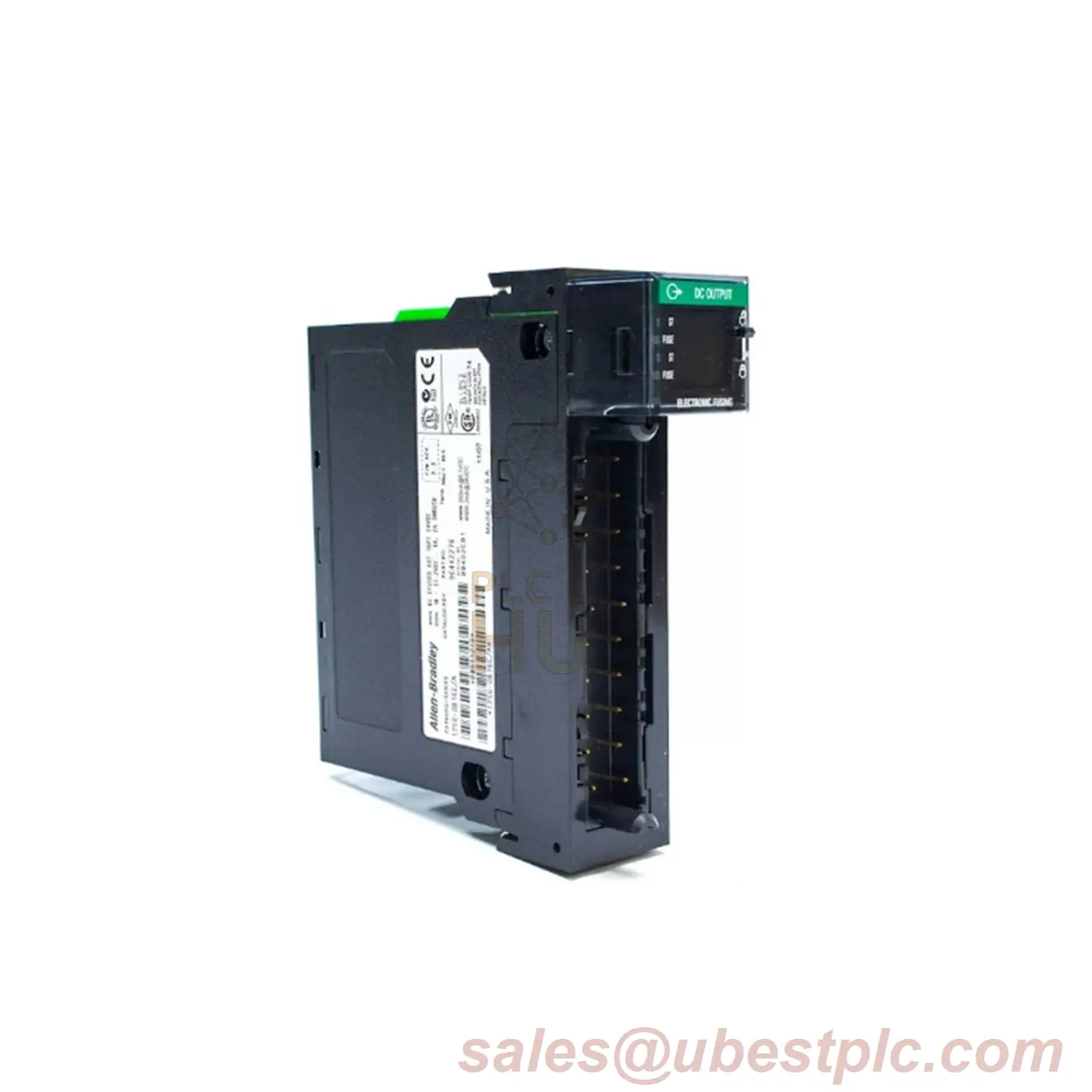

Allen-Bradley 1756-OB16E: High-Speed 16-Channel Relay Module
Core Features
16 fused outputs with 1ms response. Built for -40°C to +85°C extremes. Meets IEC/CISPR industrial standards.
Technical Specs
- Voltage: 10–31.2V DC
- Current/Point: 1A max @60°C
- Surge Current: 2A for 10ms
- Isolation: 250V outputs-to-backplane
- Certifications: IEC 61000, CISPR 11, CSA
Safety & Compliance
- IEC 60068 vibration/shock tested
- 50g shock survivability (non-operating)
- T4 Temperature Code for hazardous areas
Installation
1. Slot into 1756 ControlLogix rack
2. Connect 24V DC power
3. Wire outputs via 1756-TBNH terminal block
Real-World Use
Controls high-speed packaging lines – triggers emergency stops in <1ms.
Package Includes
- 1756-OB16E module
- Terminal block (1756-TBNH)
- 12-month warranty
Global Shipping
Via FedEx, UPS, DHL – 90% shipped in 24hrs.
FAQ
Q: Lead time for replacements?
A: 3-5 days (global stock)
Q: Max operating temp?
A: 60°C continuous
