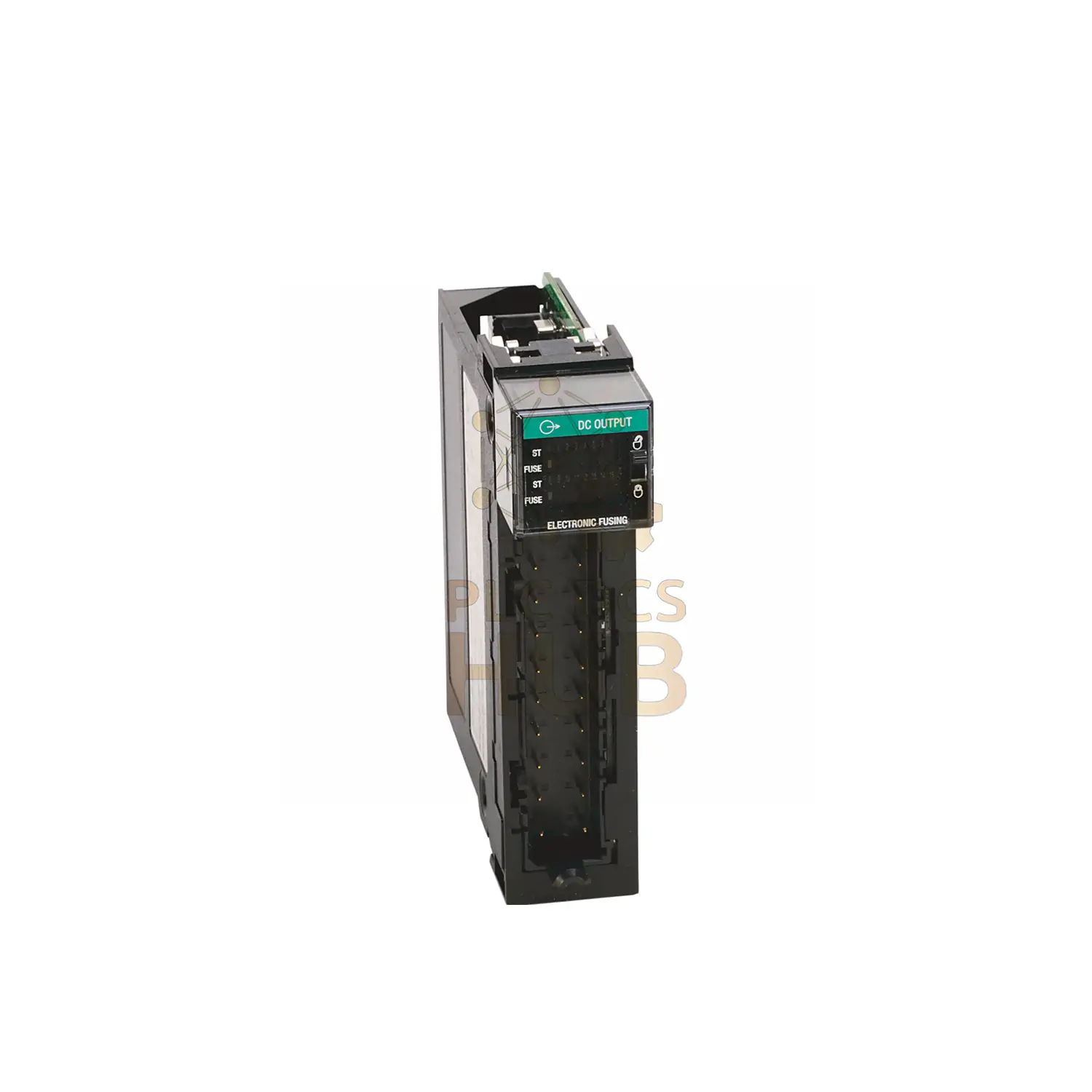

Allen-Bradley 1756-OV32E Electronically Fused Output Module
Industrial-grade 32-point sinking output module for ControlLogix systems. Provides reliable switching with electronic fuse protection.
CORE FEATURES
- 32-point electronically fused outputs
- Wide voltage range: 10-30V DC
- High current capacity: 16A @50°C
- Compact ControlLogix design
- Removable terminal blocks
TECHNICAL SPECIFICATIONS
| Brand: | Allen-Bradley | Output Type: | Sinking |
| Model: | 1756-OV32E | Voltage Range: | 10-30V DC |
| Series: | ControlLogix | Max Current (Point): | 0.5A @50°C / 0.35A @60°C |
| Isolation Voltage: | 50V continuous | Max Current (Module): | 16A @50°C / 10A @60°C |
| Power Dissipation: | 5.88W @60°C | Backplane Power: | 390mA @5V |
INSTALLATION GUIDE
- Mount in ControlLogix chassis (slot compatible)
- Use compatible terminal blocks: 1756-TBCH or 1756-TBS6H
- Maintain ambient temperature <60°C
DIAGNOSTICS & MAINTENANCE
- LED per-point status indicators
- Electronic fuse protection for fault isolation
- Quarterly contact inspection recommended
PACKING LIST
- 1756-OV32E output module
- Installation documentation
SHIPPING METHODS
FedEx | UPS | DHL | Global express available
INDUSTRY APPLICATIONS
- Motor control centers
- Conveyor control systems
- Industrial lighting controls
- HVAC equipment switching
FAQ
Q: Warranty period?
A: 12 months from shipment date
Q: Includes terminal blocks?
A: Blocks sold separately (1756-TBCH/TBS6H)
Q: Suitable for safety circuits?
A: Standard control only – not safety-rated
