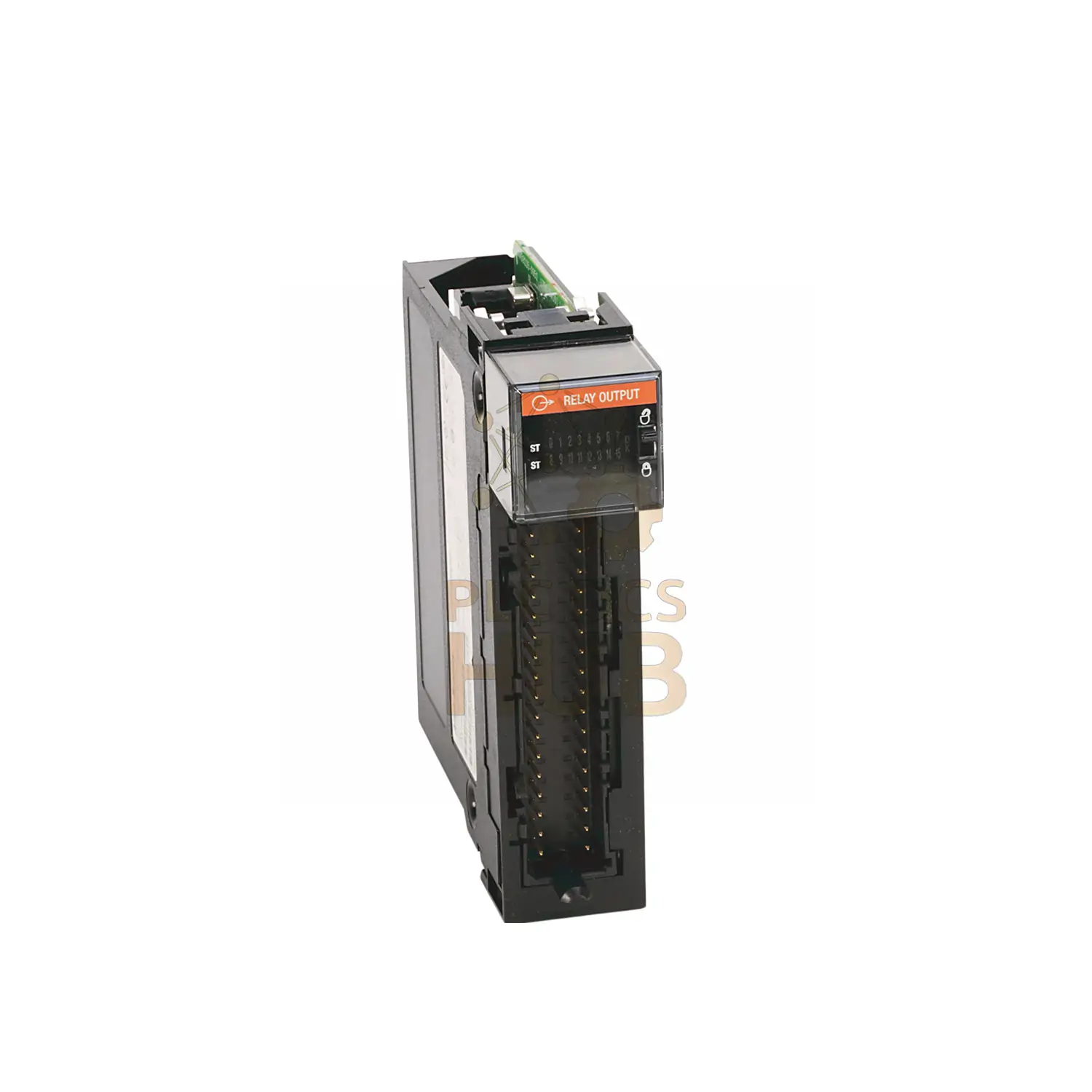

ControlLogix 1756-OW16I Digital Relay Module
Reliable 16-point relay control for industrial automation. This Rockwell Automation module fits ControlLogix systems. It offers isolated outputs and flexible voltage handling for harsh environments.
???? Technical Data
- Brand & Series
- Rockwell Automation | ControlLogix
- Model
- 1756-OW16I
- Output Type
- 16 N.O. Relay Points
- Voltage Range
- 5-125V DC | 10-240V AC
- Response Time
- ≤10ms ON/OFF delay
- Operating Temp
- 0°C to 60°C (32°F to 140°F)
- Power Use
- 4.4W backplane | 150mA @5.1V/24V
- Isolation
- 250V continuous (output to backplane)
⚙️ Installation Guide
- Use Category 1 wiring
- Ensure ambient temp ≤60°C
- Allow 1 slot width in chassis
- Apply screw terminal connections
- Maintain 5-95% non-condensing humidity
???? Diagnostics & Maintenance
- Check contact resistance (<100mΩ)
- Monitor thermal dissipation (15.35 BTU/h max)
- Verify output delay times
- Test isolation voltage annually
???? Package Includes
- 1756-OW16I module
- Terminal blocks
- Mounting hardware
- Installation manual
✈️ Shipping Options
FedEx | UPS | DHL – Global delivery available
❓ FAQ
Q: Contact lifespan?
A: 300k operations (resistive loads)
Q: Shock resistance?
A: 30G operating / 50G non-operating
Q: Short-circuit protection?
A: Not available – use external protection
0.0 Average Rating Rated (0 Reviews)
