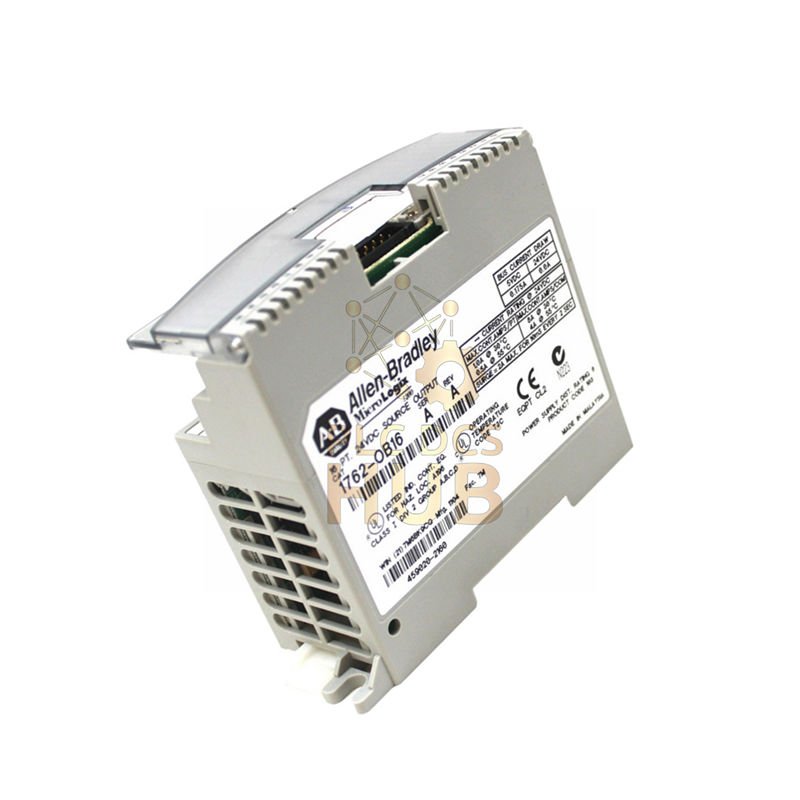

Allen-Bradley 1762-OB16 MicroLogix 24VDC Output Module
The Allen-Bradley 1762-OB16 is a solid-state output expansion module for MicroLogix controllers. It provides sixteen 24VDC sourcing outputs to control various industrial devices. This Rockwell Automation module works with MicroLogix 1100, 1200, and 1400 controllers.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1762-OB16
- Module Type: 24VDC Sourcing Output
- Number of Outputs: 16 channels
- Output Groups: 1 group (outputs 0-15)
- Operating Voltage: 20.4-26.4 VDC
- On Delay Time: 0.1 ms
- Off Delay Time: 1.0 ms
- Max Surge Current: 2.0 A per point
- Continuous Current: 0.5A @ 55°C, 1.0A @ 30°C per point
- Total Module Current: 4.0A @ 55°C, 8.0A @ 30°C
- 5V DC Bus Current Draw: 175 mA maximum
- Compatible Controllers: MicroLogix 1100, 1200, 1400
Installation Guidelines
- Mount the module on a standard DIN rail
- Maintain 2 inches (50.8 mm) clearance on all sides for ventilation
- Maximum operating altitude: 2000 meters (6561 feet)
- Operating humidity: 5% to 95% non-condensing
- MicroLogix 1100 supports up to 4 expansion modules
- MicroLogix 1200 supports up to 6 expansion modules
- MicroLogix 1400 supports up to 7 expansion modules
Packaging & Delivery Information
- Package includes one 1762-OB16 module
- We ship worldwide via FedEx, UPS, and DHL
- Fast and reliable delivery to your location
Comparison With Other MicroLogix Modules
- The 1762-OB16 offers 16 digital outputs
- Compare with the 1762-IQ16 input module
- Or the 1762-IF4 analog input module
- This module is ideal for 24VDC switching applications
