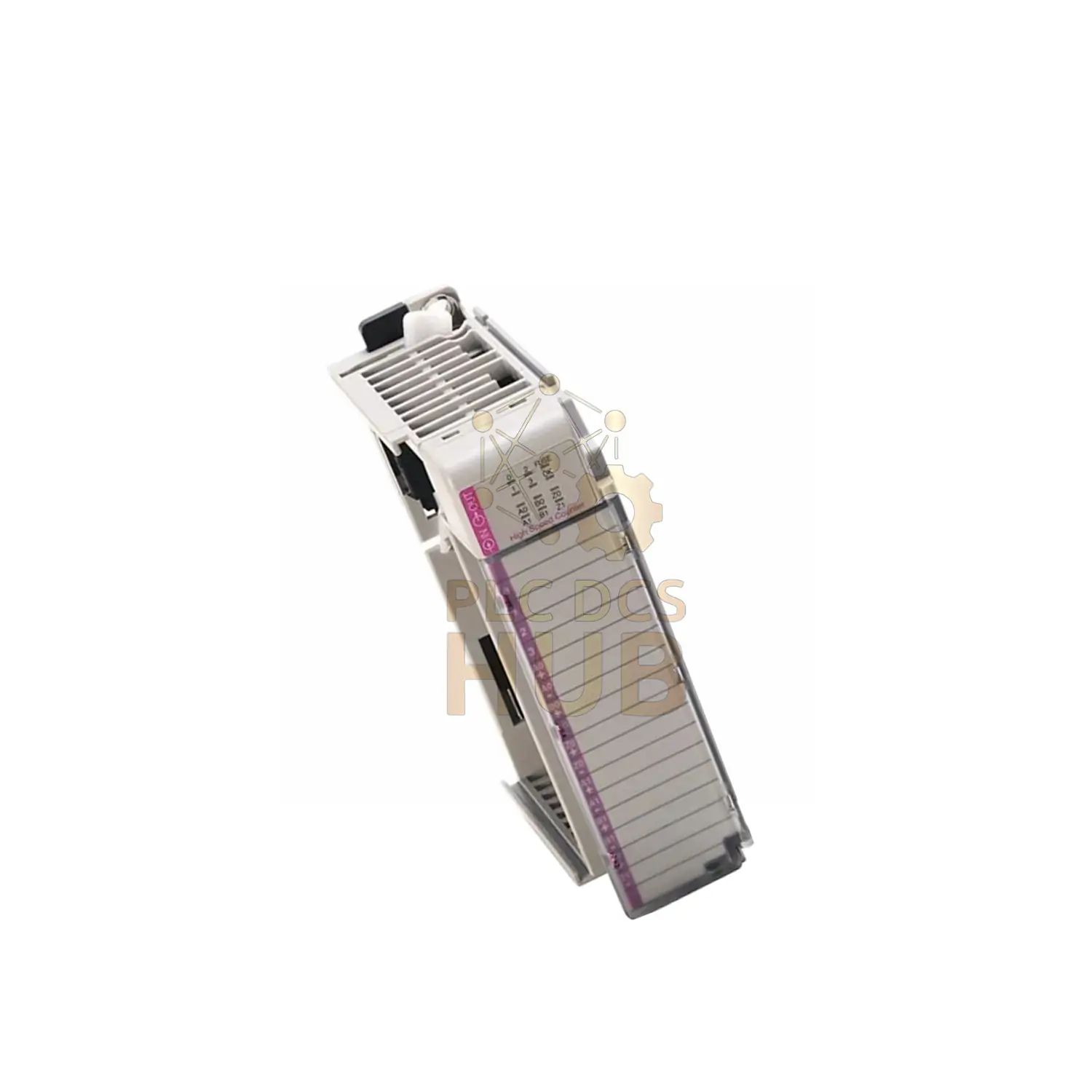

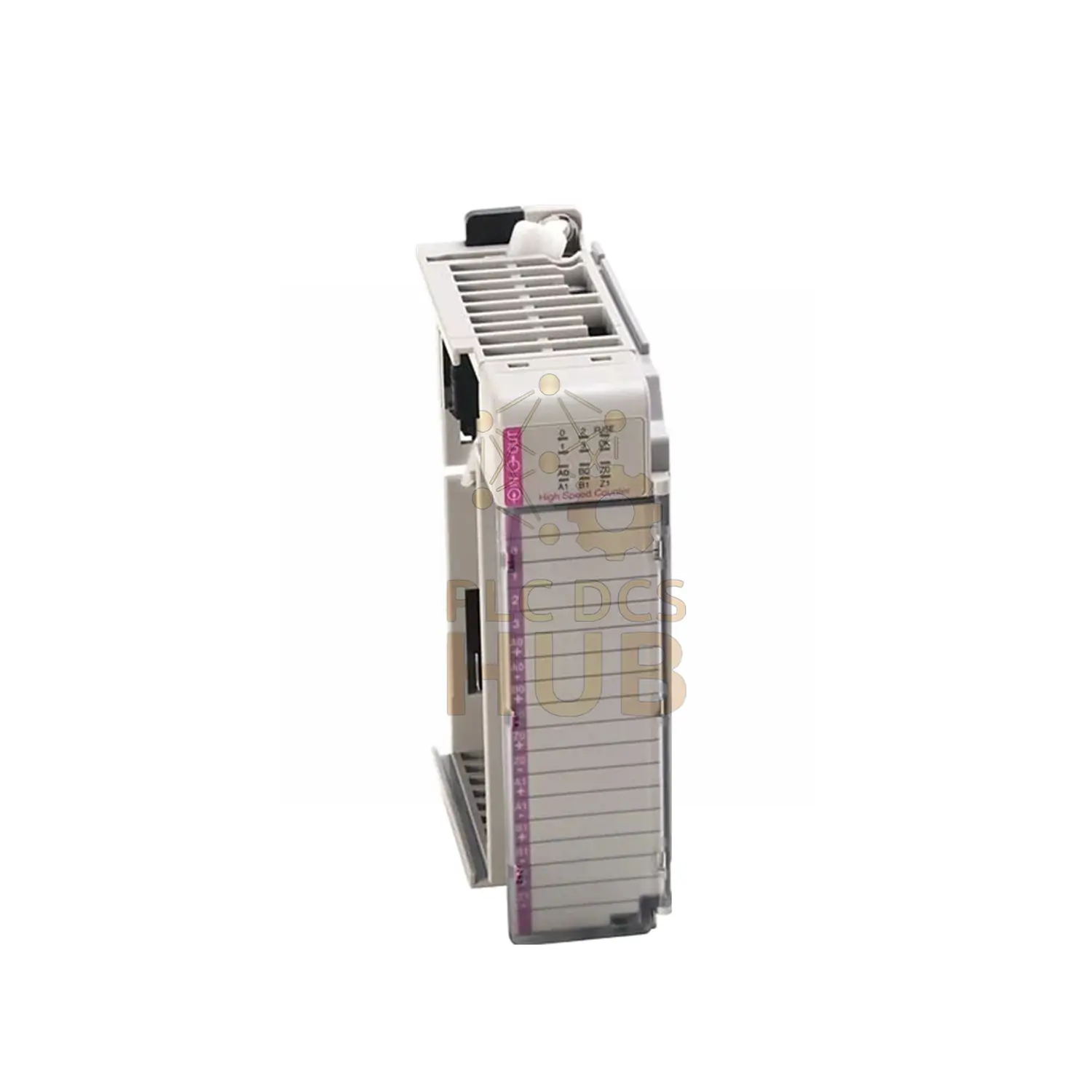

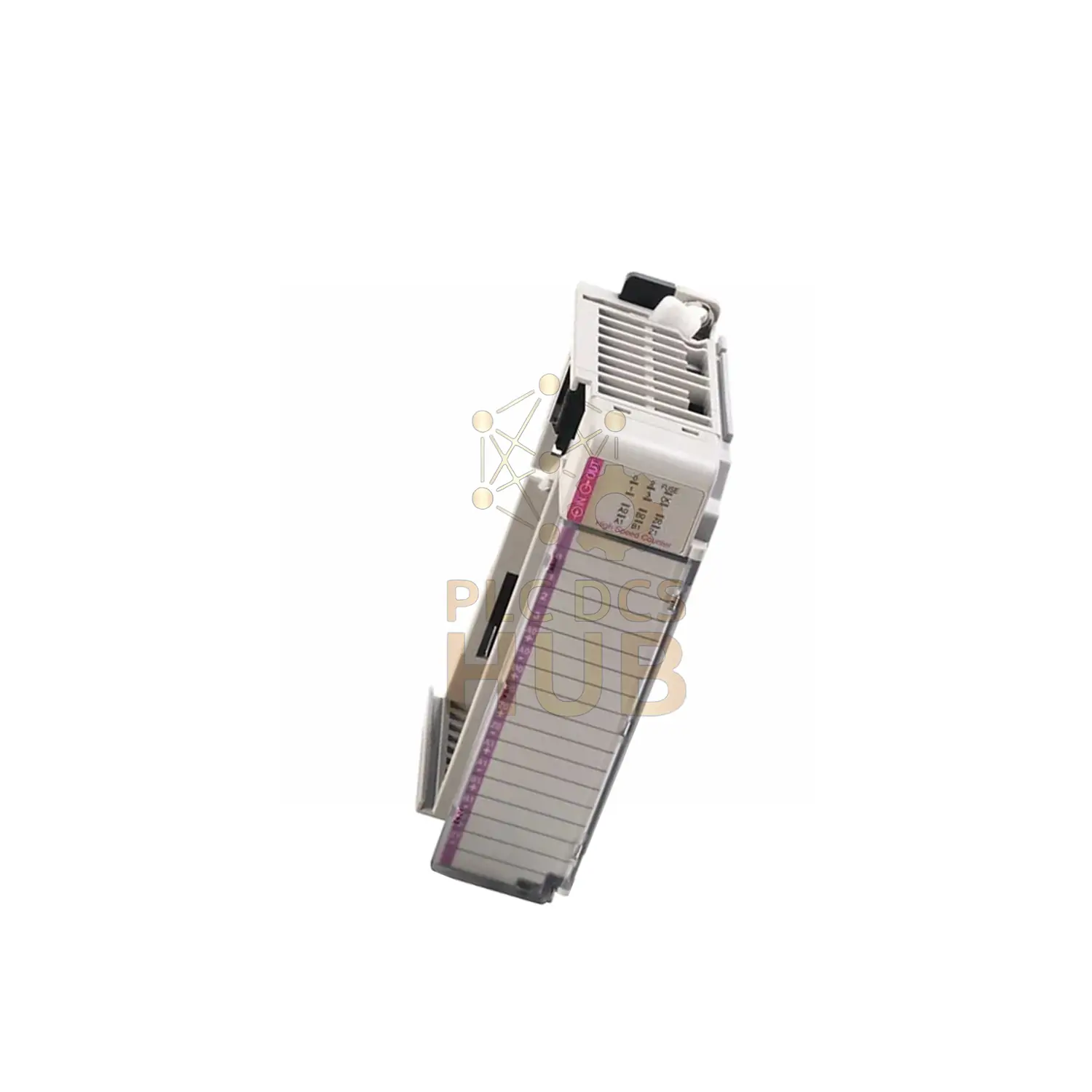

CompactLogix 1769-IF16V: Precision Analog Input Module
Capture 16 voltage signals with Allen-Bradley’s industrial-grade input module. Features ±0.35% accuracy and flexible ±10.5V range. Perfect for CompactLogix control systems.
???? Core Specifications
| Brand/Series | Allen-Bradley CompactLogix |
| Model | 1769-IF16V |
| Inputs | 16 single-ended |
| Voltage Range | ±10.5V DC |
| Resolution | 16-bit |
| Accuracy | ±0.35% @ 25°C |
⚡ Power & Dimensions
- Power Use: 33.6 Watts (7.5W dissipation)
- Current Draw: 190mA @5.1V | 70mA @24V
- Size: 118x87x35 mm (4.6×3.4×1.4 in)
- Weight: 0.91 kg (2 lbs)
???? Installation Features
- Mounting: DIN rail or panel
- Terminal Blocks: 1756-TBCH/TBSH
- Controllers: MicroLogix 1500, CompactLogix
- Cable: Shielded Belden™ 8761
???? Shipping Details
Package: Module only
Carriers: FedEx, UPS, DHL
Box Size: 8x8x5 inches
???? Industry Applications
- Motor speed monitoring
- Tank level sensing
- Production line QA testing
- Energy management systems
❗ Key Diagnostics
- Over/under-range detection
- Process alarms
- Bit-level fault reporting
❓ FAQ
Q: Minimum voltage reading?
A: -0.5V DC (full range)
Q: Compatible controllers?
A: MicroLogix 1500 and CompactLogix
Q: ADC type?
A: Sigma-Delta converter
