Description

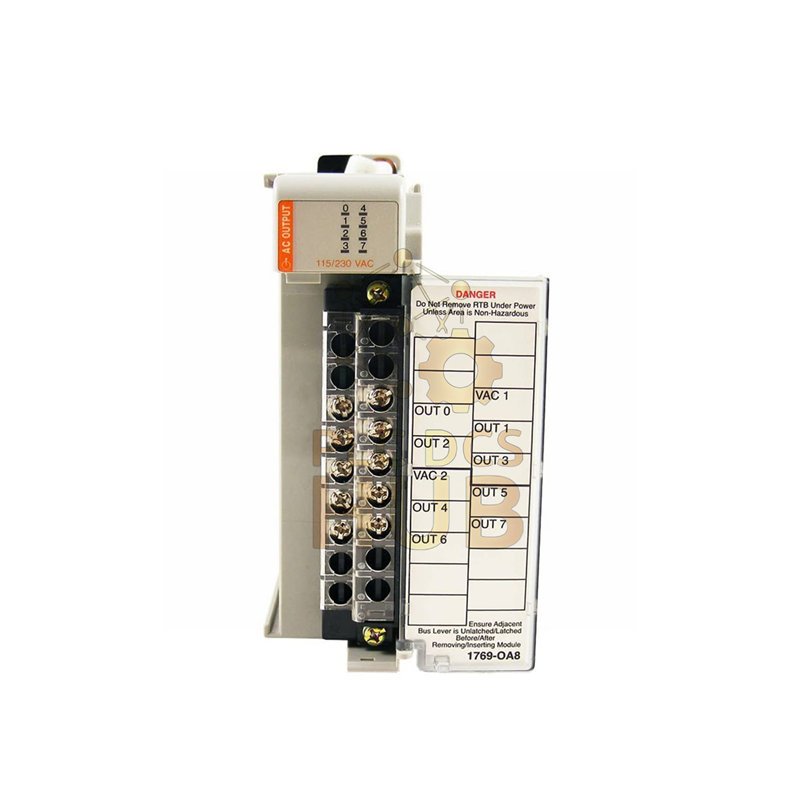

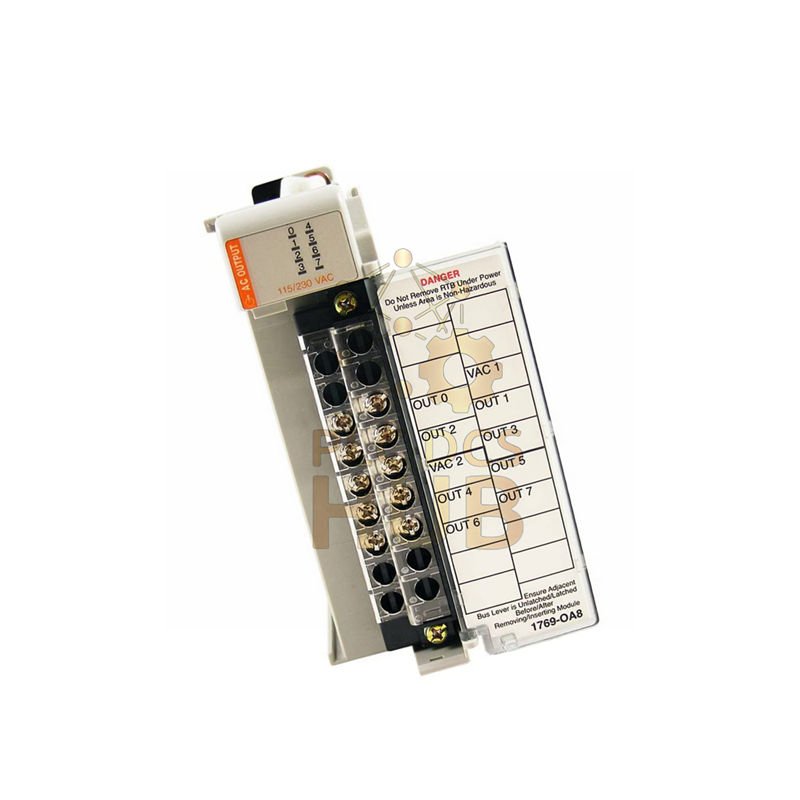

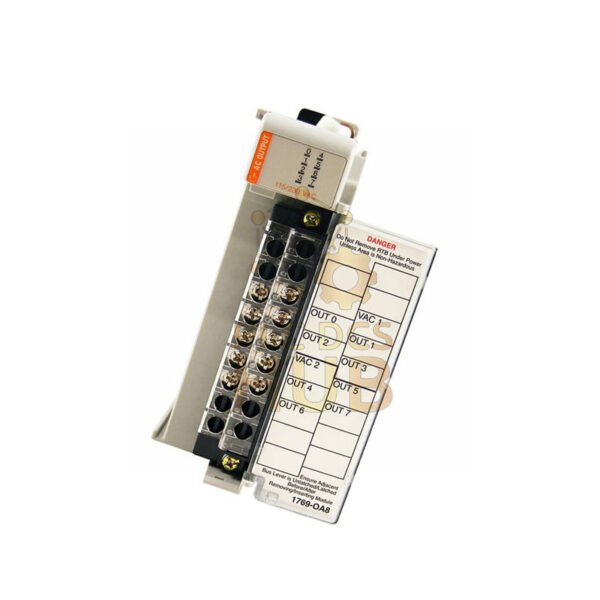

Allen-Bradley 1769-OA8 CompactLogix 8-Point AC Output Module
The Allen-Bradley 1769-OA8 delivers reliable AC output control for industrial automation systems. This robust module integrates seamlessly with CompactLogix and MicroLogix controllers.
Technical Specifications
- Brand & Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: 1769-OA8
- Output Type: 8-point solid state AC output module
- Voltage Range: 85-265V AC with auto-sensing capability
- Operating Frequency: 47-63 Hz with ±2% stability
- Current Rating: 0.5A per point, 2A total module maximum
- Switching Speed: Turn-on: 1ms max, Turn-off: 1/2 cycle
- Isolation Voltage: 1500V AC between field and logic sides
- Power Consumption: 145mA @ 5V DC (1.125W), 2.12W heat dissipation
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Group Configuration: 2 independent groups of 4 outputs each
- Wire Compatibility: 22-14 AWG solid, 22-16 AWG stranded copper
- Status Indicators: Per-point LED status, module health indicator
- Surge Protection: 1000V peak transient voltage protection
- MTBF Rating: 500,000 hours at 40°C operating temperature
- Certifications: UL 508, CSA 22.2, CE, ATEX Zone 2
Packaging & Shipping
- Factory-sealed package includes one 1769-OA8 module
- Installation documentation and specification sheet included
- Shipping dimensions: 8 x 8 x 5 inches, weight: 2 pounds
- Global express shipping via FedEx, UPS, and DHL available
- 12-month warranty against manufacturing defects
