Description

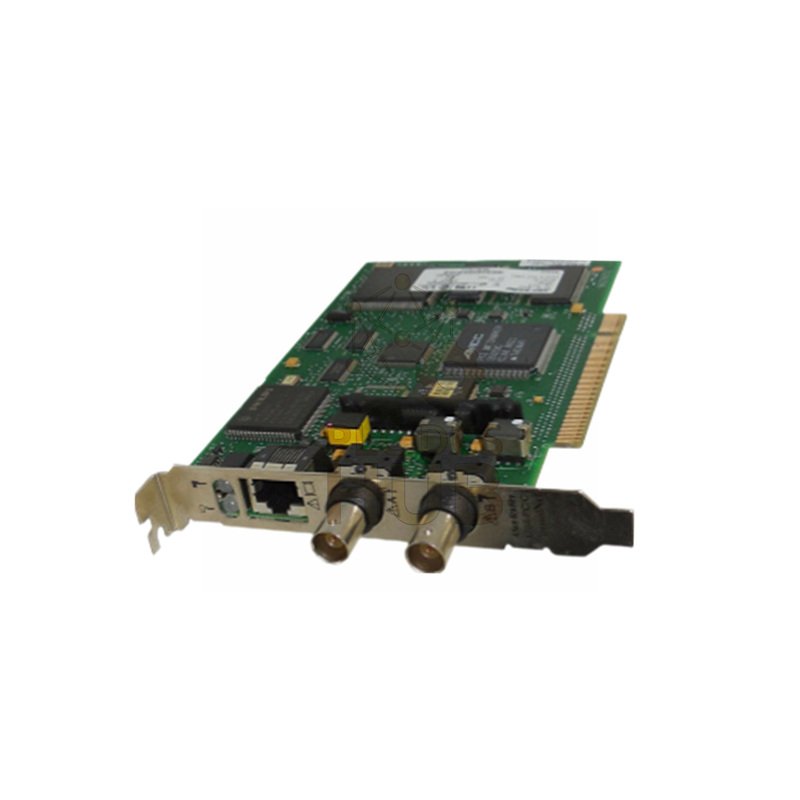

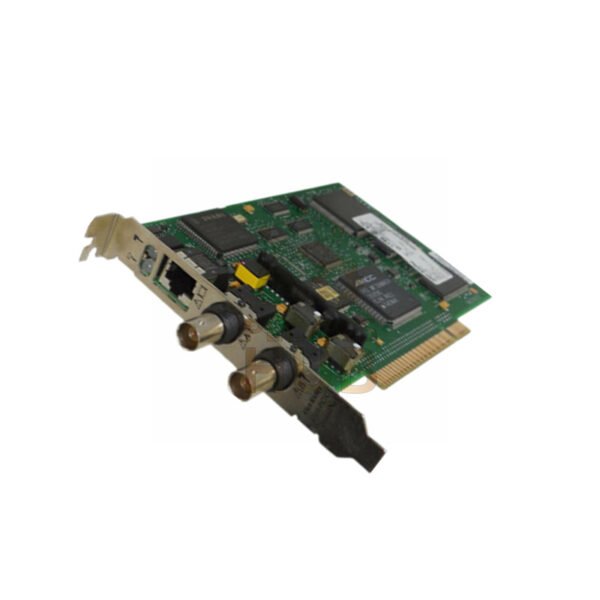

Allen-Bradley 1784-PCICS ControlNet PCI Communication Card
- Get fast and reliable ControlNet connectivity for your computer.
- Easy to install in standard PCI slots.
- Includes status LEDs for network diagnostics.
- Comes with a full 12-month warranty.
- We ship worldwide via FedEx, UPS, and DHL.
Product Overview
The Allen-Bradley 1784-PCICS card lets your computer talk to ControlNet networks. This 1784-PCICS card is perfect for programming and monitoring. It is sensitive to static electricity. Please handle it with care.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Series: PLC-5
- Model: 1784-PCICS
- Product Type: ControlNet PCI Card
- Compatible Slots: PCI-X, 32/64 bit PCI, 3.3V/5V PCI
- Card Dimensions: 107 x 165 mm (4.2 x 6.5 in)
- Network Port: RJ45
- ControlNet Port: BNC Connector
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Power Consumption: 3.5 Watts (Max)
- Isolation Voltage: 50V DC
Installation Guide
Turn off your computer. Open the case. Find a free PCI slot. Remove the slot cover. Carefully push the 1784-PCICS card into the slot. Secure it with a screw. Close the computer case. Power on the computer.
Frequently Asked Questions
- What computers can use this card?
It works in computers with PCI, PCI-X, 32-bit, or 64-bit slots. - How do I connect to the network?
Use the BNC port for ControlNet. Use the RJ45 port for a programming terminal. - What do the LED lights mean?
The LEDs show network status and card health. They only work when using the BNC port. - Can I connect two networks to this card?
No. Connecting two different networks can cause problems. - How do I protect the card from static?
Use a grounded wrist strap. Work on a static-safe surface. Keep the card in its bag until use. - Warranty & Shipping
- This product has a 12-month warranty. We ship quickly using FedEx, UPS, or DHL.
