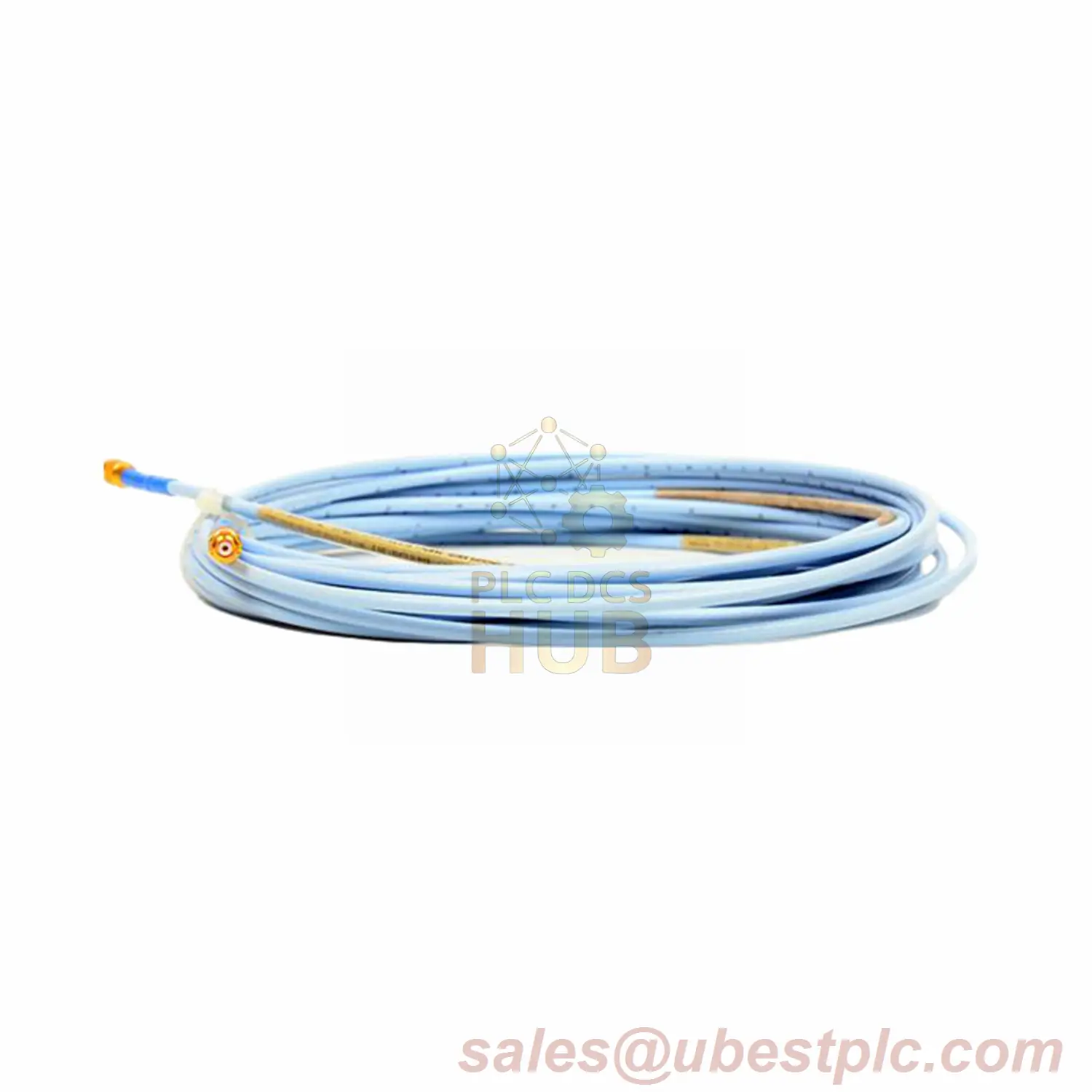

Bently Nevada 330130-070-10-05: 7m FluidLoc Extension Cable with Hazardous Area Certifications
Product Overview
Industrial-grade extension cable with FluidLoc technology preventing oil leakage in critical machinery. Certified for explosive environments (CSA, ATEX, IECEx). Features gold-plated ClickLoc connectors and 330N pull strength. Made in USA.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330130-070-10-05
- Suffix Breakdown:
070=7.0m length |
10=FluidLoc cable |
05=CSA/ATEX/IECEx - DC Resistance:
Core: 1.54Ω ±0.23Ω
Jacket: 0.46Ω ±0.09Ω
- Capacitance: 69.9pF/m (21.3pF/ft)
- Voltage Range: -17.5Vdc to -26Vdc
- Output Impedance: 50Ω
- Temp Range: +18°C to +27°C
- Humidity Resistance: <3% ASF change (93% humidity)
Critical Applications
Solves these industrial challenges:
- Oil contamination in turbine systems
- Cable failure in explosive atmospheres
- Signal loss in high-vibration zones
- Connector corrosion in harsh environments
FluidLoc advantage: Seals cable interior against fluid ingress while maintaining signal integrity up to 305m.
Installation Guide
- Total cable length (probe + extension) must match Proximitor requirements
- Use 3-conductor shielded triad cable (0.2-1.5mm²)
- Never use silicone tape in oil-exposed connections
- Maintain 1.27mm probe-to-target gap
Compatibility
Works with all 3300 XL 8mm Proximitor Sensors. Requires AISI 4140 steel target for calibrated performance. Not compatible with non-XL series components.
Package Contents
- 1× FluidLoc extension cable (7.0m)
- Silicone tape kit
- Installation manual
Global Shipping
Express delivery via: FedEx | UPS | DHL
Model Comparison
| Model | Length | Key Feature | Approvals | Details |
|---|---|---|---|---|
| 330130-070-10-05 | 7.0m | FluidLoc | CSA/ATEX/IECEx | Current Product |
| 330130-040-01-05 | 4.0m | Armored | CSA/ATEX/IECEx | Shorter armored solution |
| 330130-075-12-CN | 7.5m | Standard | Country Specific | Longer with CN approval |
| 330130-060-02-05 | 6.0m | Special Option | CSA/ATEX/IECEx | Mid-length with option 02 |
FAQ
Q: Does FluidLoc replace armored protection?
A: No – FluidLoc prevents internal fluid migration while armored protects against physical damage.
Q: Certification documentation included?
A: ATEX/IECEx certificates ship with product – CSA available on request.
Q: Minimum voltage for barrier installations?
A: Requires -23Vdc minimum when using intrinsic safety barriers.
Q: Pressure testing available?
A: Not standard – contact for custom pressure validation services.
