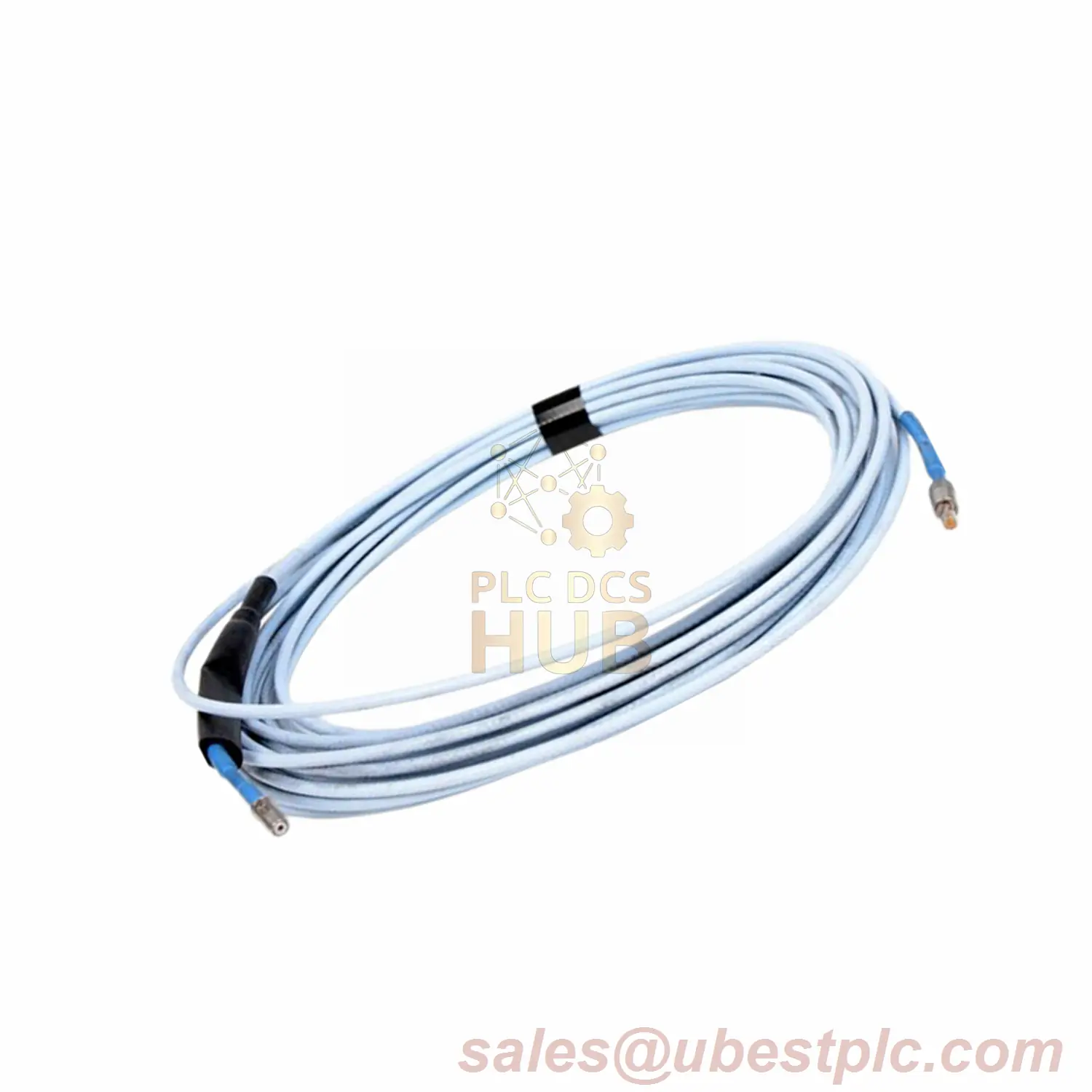

Bently Nevada 3300 XL FluidLoc® Extension Cable: Heavy-Duty Sensor Connectivity
Description
Premium armored extension cable for industrial proximity sensors. Made in USA. Optional Certificate of Origin (COO) available. FluidLoc® technology prevents oil leaks in turbines and machinery. Gold-plated ClickLoc® connectors ensure corrosion resistance.
Technical Data
| Brand | Bently Nevada |
| Model | 330130-070-10-00 |
| Series | 3300 XL |
| Length | 7.0 meters (22.9 ft) |
| Compatibility | 3300-series 5mm/8mm & XL 8mm probes |
| Power | -17.5 to -26 VDC (12mA max) |
| Output | 50 Ω resistance |
| Capacitance | 69.9 pF/m |
| Pull Strength | 330N (75 lbf) |
Key Features
- ????️ FluidLoc® seals against oil leaks
- ⚡ Gold ClickLoc® connectors
- ????️♂️ TipLoc® molding for durability
- ???? 2mm linear measurement range
- ???? Withstands 93% humidity (IEC 68-2-3)
Installation Guide
Do NOT use silicone tape in oil-exposed areas. Use included connector protectors. Max wiring: 305m (1,000 ft). Requires shielded triad cable (16-24 AWG).
Diagnostics & Maintenance
Check voltage stability (must stay below -23.5VDC). Test pull resistance annually. Inspect connectors for corrosion.
Packaging Includes
- Extension cable with connectors
- Silicone tape (alternative to protectors)
Shipping
Global delivery via: FedEx | UPS | DHL. Tracking provided.
Problem Solutions
| Issue | Fix |
|---|---|
| Reduced signal range | Verify voltage > -23.5VDC |
| Oil leakage | Ensure FluidLoc® seals are intact |
| Connection failure | Clean gold contacts with alcohol |
Industry Applications
- ⚙️ Gas turbine monitoring
- ???? Power generation equipment
- ????️ Oil refinery rotating machinery
- ????️ Heavy industrial compressors
FAQ
Q: Pressure rating?
A: Viton® O-ring seals. Contact us for pressure testing.
Q: Humidity tolerance?
A: <3% ASF change after 56 days at 93% humidity.
Q: Cable weight?
A: 0.618 kg (armored version)
