Description

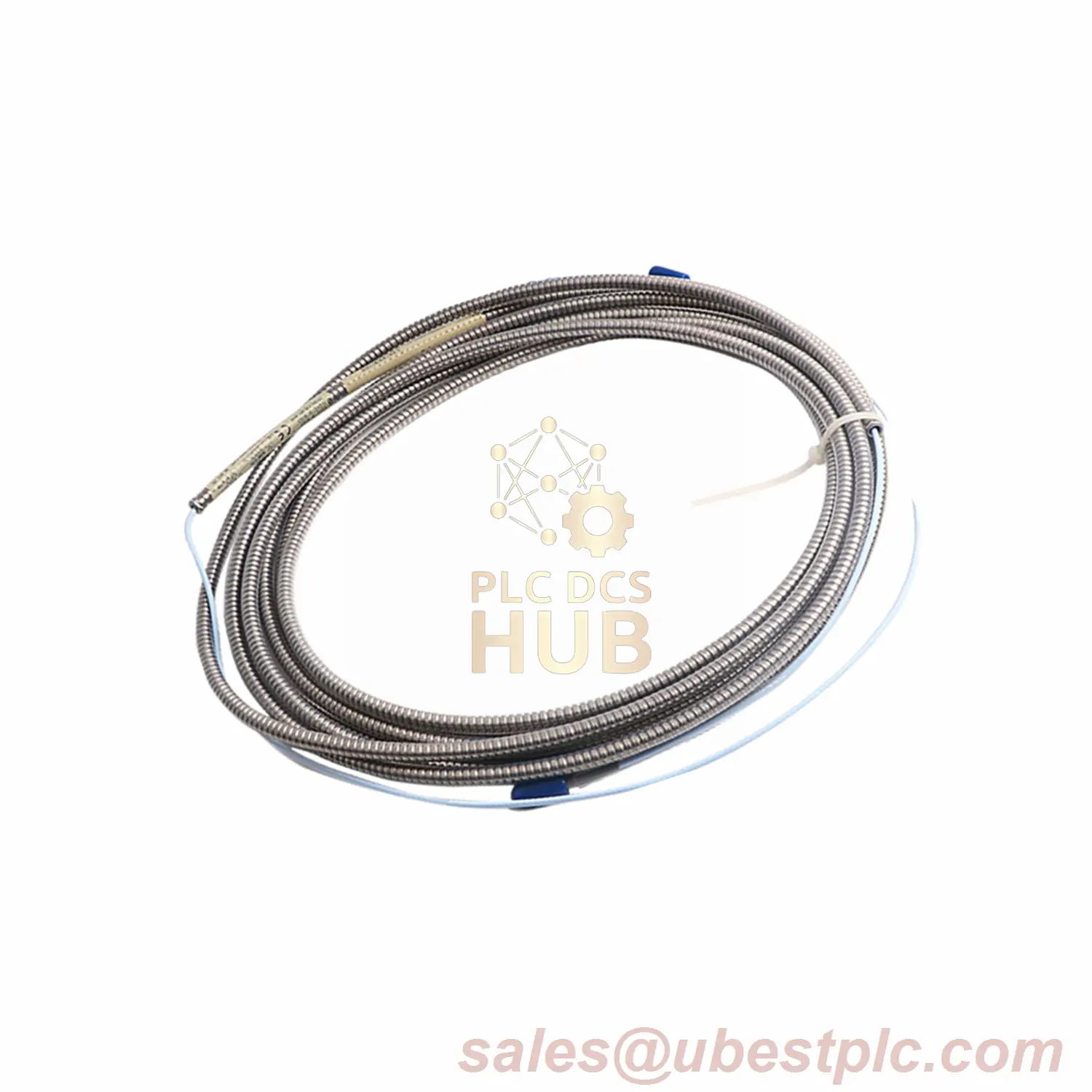

Bently Nevada Armored FluidLoc® Extension Cable
Product Overview
Industrial-grade armored cable with FluidLoc® technology prevents oil migration in critical machinery applications. Made in USA with gold-plated connectors.
Technical Specifications
| Manufacturer | Bently Nevada |
| Model Number | 330130-070-11-00 |
| Product Series | 3300 XL |
| Cable Type | Armored FluidLoc |
| Length | 7.0 meters (22.9 feet) |
| Weight | 0.721 kg (armored) |
| Core Resistance | 1.54 Ω ±0.23 |
| Jacket Resistance | 0.46 Ω ±0.09 |
| Temperature Range | +18°C to +27°C |
| Humidity Resistance | <3% ASF change at 93% humidity |
Performance Characteristics
- Operating voltage: -17.5 Vdc to -26 Vdc
- Current consumption: 12 mA maximum
- Voltage sensitivity: <2 mV/V change
- Capacitance: 69.9 pF/m typical
- Output impedance: 50 Ω
- Meets IEC 68-2-3 humidity standards
Installation Requirements
Maximum field wiring distance: 305 meters (1,000 feet). Use 16-24 AWG shielded triad cable. Avoid silicone tape in oil-exposed environments. Maintain voltage below -23.5 Vdc for optimal linear range.
Packaging Contents
- Extension cable assembly
- Silicone tape for non-oil applications
Shipping Methods
FedEx International Priority | UPS Worldwide Express | DHL Express
Common Solutions
| Issue | Resolution |
|---|---|
| Signal attenuation | Check cable capacitance values |
| Voltage instability | Verify power supply within -23Vdc to -26Vdc range |
| Connection failure | Inspect gold-plated ClickLoc connectors |
Industrial Applications
- Power generation turbines
- Offshore oil platform machinery
- High-pressure compressors
- Marine propulsion systems
