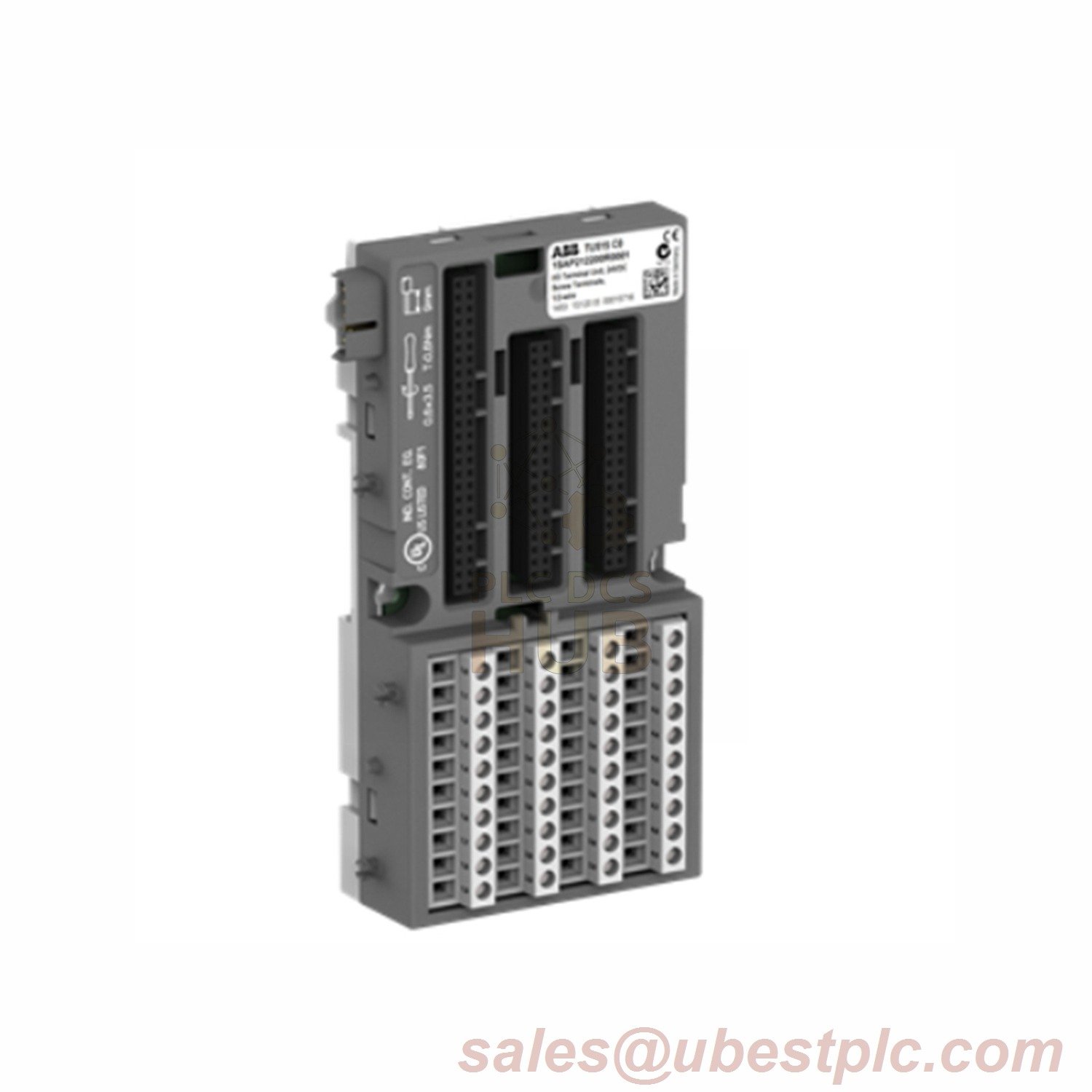

1SAP212200R0001 TU515 – I/O Terminal Unit ABB

Description

Product Overview

The ABB TU515 I/O terminal unit provides flexible connectivity for analog and 24V DC digital modules, featuring screw terminals for secure wiring in industrial automation systems. Designed for DIN rail mounting, its compact 67.5x135x28 mm footprint simplifies integration into control cabinets while supporting harsh operational conditions (0°C to +60°C). With IP20 protection and a 24V DC supply voltage, it ensures reliable signal transmission in environments with dust or limited moisture exposure.

Technical Specifications

• Brand: ABB
• Model: TU515 | Product ID: 1SAP212200R0001
• Function: Terminal unit for analog/digital 24V DC modules (screw terminals)
• Analog I/Os: 0 (configurable for digital only)
• Protection: IP20-rated
• Voltage: 24V DC
• Temperature Range:
  • Operation: 0°C to +60°C
  • Storage: -40°C to +70°C
• Dimensions (WxHxD): 67.5 mm x 135 mm x 28 mm
• Weight: 0.232 kg (net) | 0.262 kg (gross)
• Packaging: 147x78x40 mm carton (1 unit)

Ordering Information

• Order Code: TU515
• MOQ: 1 piece
• eClass: 27-24-22-92 | ETIM 8: EC000810 (PLC mounting rack)
• UNSPSC: 32151703

Environmental Compliance

• WEEE Category: 5 (Small Equipment, B2B)

Dimensions & Weight

Contact Information
For ordering, technical queries, or compliance documentation, contact sales team at sales@ubestplc.com
