Description

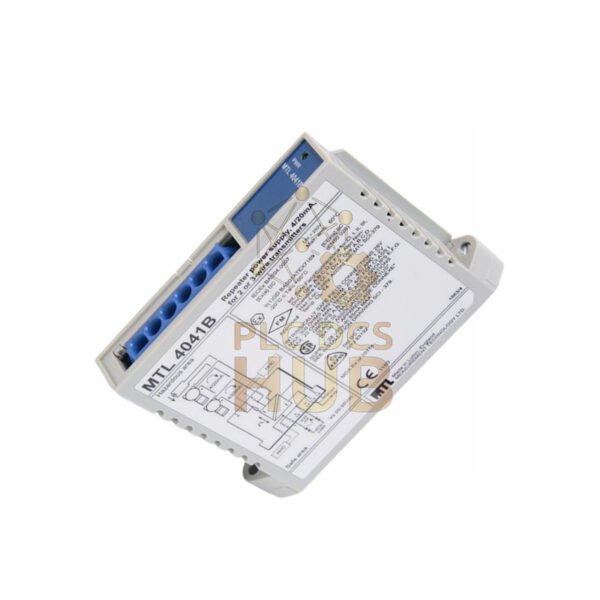

MTL4041B Single-Channel Isolator & Repeater for Hazardous Areas
The MTL4041B provides a fully floating DC power supply for 2- or 3-wire 4–20mA transmitters, including smart/HART® devices, located in hazardous areas. It safely repeats the analog signal to a safe-area load. This module supports bi-directional digital communication, allowing you to interrogate smart transmitters from a control system or a handheld communicator (HHC).
Technical Data
| Brand | MTL |
| Model | 4041B (Please check suffix for specific approvals) |
| Channels | One |
| Input/Output Signal | 4 to 20mA |
| Over/Under Range | 1.0mA to 21.5mA |
| Output Resistance | >1MΩ |
| Transfer Accuracy | Better than 20µA at 20°C |
| Temperature Drift | < 1µA/°C |
| Voltage for Transmitter | 15V min. at 20mA (28V max open-circuit) |
| Load Resistance (Safe Area) | 0–650Ω (Conv.), 250Ω±10% (Smart) |
| Digital Bandwidth | 10Hz to 8kHz |
| Response Time | Within 20ms |
| Isolation | 250V ac |
| Power Supply (Vs) | 20–35V dc |
| Power Consumption | 50–75mA |
Certification & Safety
Approved for use in Zone 0, IIC, T4–6 hazardous areas and Div. 1, Group A hazardous locations. FM Entity Parameters apply (see datasheet).
Packaging & Warranty
Each unit is shipped with the module and a data sheet. We ship via FedEx, UPS, and DHL for fast delivery. This product is covered by a 12-month warranty from the date of purchase.
