21000-28-10-20-050-04-02 Proximity Probe – Housing Assembly

Description

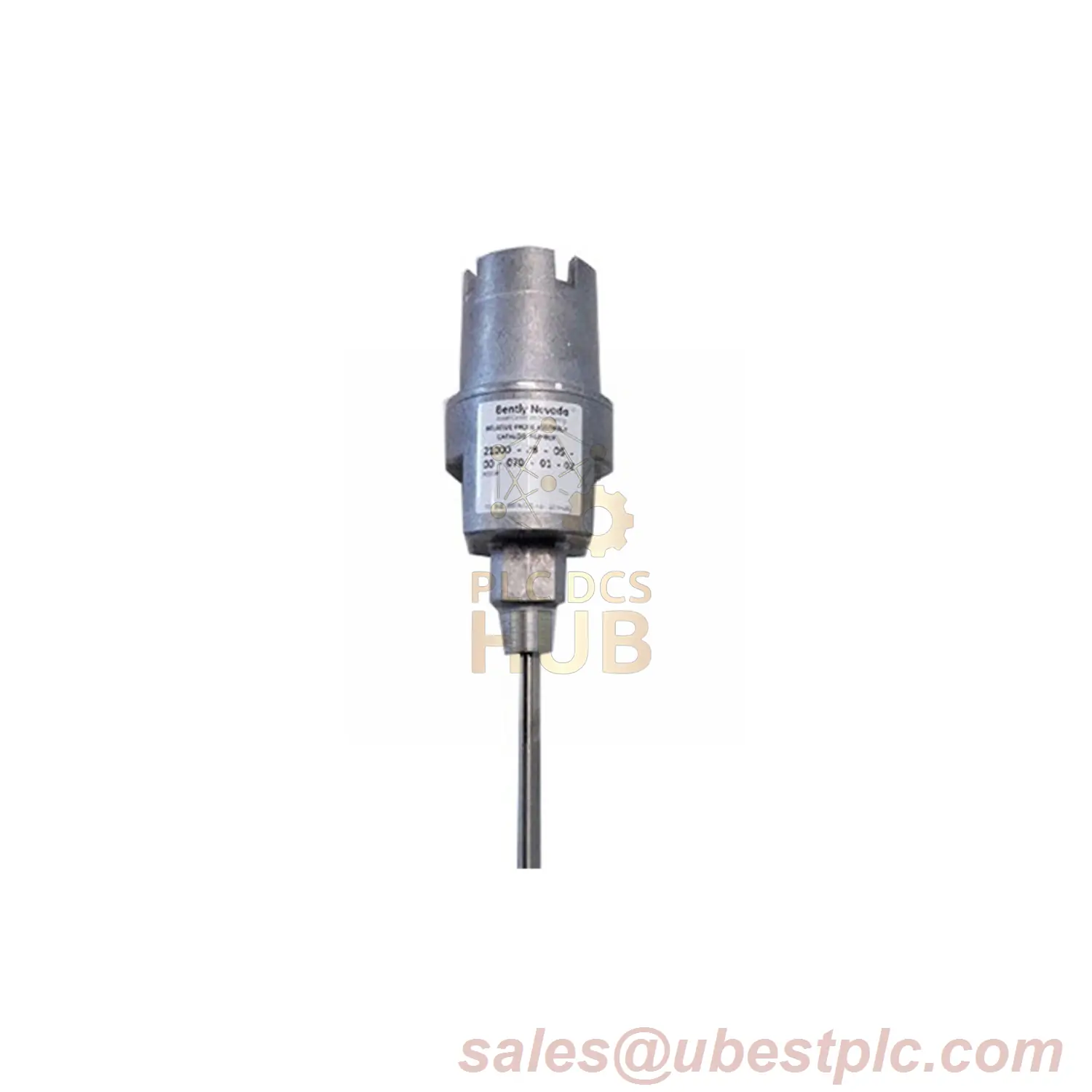

Bently Nevada 21000 Explosion-Proof Proximity Probe Housing

21000-28-10-20-050-04-02: Factory-Sealed & Warranty: New original unit with 12-month protection. Built for harsh industrial environments.

Critical Specifications

• Part No.: 21000-28-10-20-050-04-02
• Probe: 3300 XL 8 mm (ATEX/IECEx ready)
• Cable: 1.0 m (39 in) high-flex jacket
• Max. Installation Depth: 17 in (43.18 cm)
• Thread Type: 3/4-14 NPT (anti-corrosion)
• Housing Material: Aluminum + 304 SS
• Certified Temp: -58°F to +176°F (-50°C to +80°C)

Suffix Details (Customizable)

• 28: 8 mm probe with hazardous area connector
• 10: 1.0 m extended cable (39 in)
• 20: 2 in standoff for clearance
• 050: 5 in adjustable probe depth
• 04: 3/4-14 NPT plug included
• 02: NPT mounting thread

Industrial Use Cases

• Power Generation: Monitor turbine shaft vibration trends in coal/gas plants
• Oil Refineries: Detect pump cavitation in Zone 1 explosive areas
• Wastewater Systems: Track motor imbalance in humid, corrosive settings

Certifications

• CSA Class I Div 1/2 (Groups C, D)
• API 670 Compliance for machinery protection
• RoHS 2011/65/EU
• Non-incendive circuit (DWG 140979)

What’s in the Box?

• Pre-assembled housing
• Explosion-proof dome cover
• Sealing O-rings & NPT plug
• Installation manual

Expert Support: Contact sales@ubestplc.com for OEM bulk orders or custom configurations.

Check official datasheet to know more detailed information: 21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
