Description

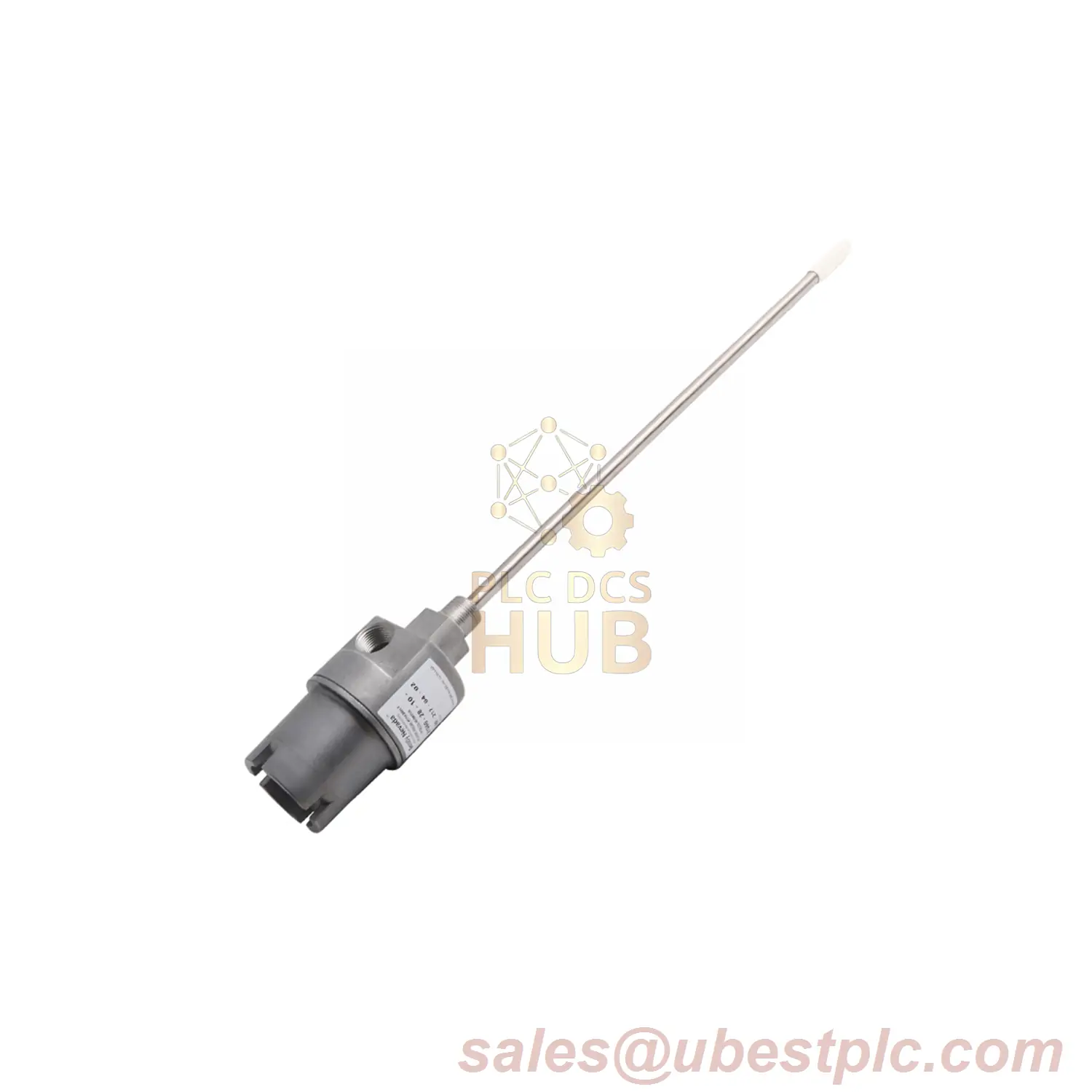

Bently Nevada 21000-28-10-00-180-00-02 Proximity Sensor Assembly
21000-28-10-00-180-00-02 Brand: Bently Nevada | Condition: New Original | 12-Month Warranty
Core Specifications
- Probe Model: 3300 XL 8 mm (Code 28)
- Cable Length: 1.0 m (39 in) (Code 10)
- Penetration Depth: 18 in (457 mm) (Code 180)
- Mounting: 3/4-14 NPT Thread (Code 02)
- Temperature: -50°C to +80°C operation
- Weight: 1.1 kg (2.4 lb) without fittings
Suffix Code Breakdown
28: 8 mm probe with CSA/ATEX/IECEx approvals
10: Long 1.0 m industrial automation cable
00: No standoff adapter needed
180: 18 in shaft penetration for heavy machinery
00: Basic fitting configuration
02: Standard NPT thread for easy installation
Industrial Use Cases
- Chemical processing pump vibration analysis
- Paper manufacturing roll alignment systems
- Wastewater treatment plant motor monitoring
- Food processing conveyor belt RPM tracking
Key Certifications
- CSA Type 4 explosion-proof housing
- RoHS 2011/65/EU compliant
- API 670 machinery protection standard
- Class I/II/III hazardous area approvals
Package Includes
- Dome cover & stainless steel probe sleeve
- O-rings and thread seal components
- Factory test documentation
