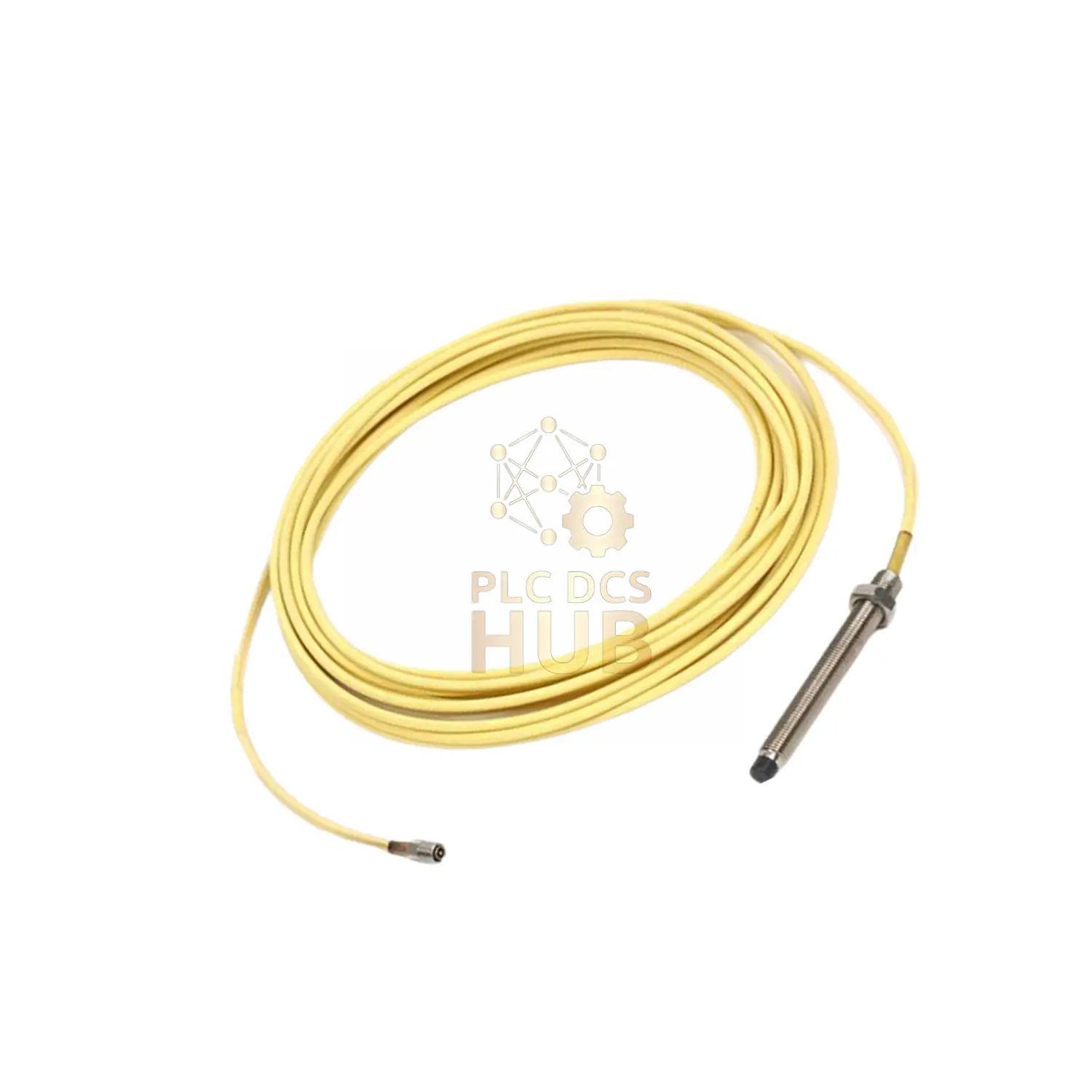

Bently Nevada 21500 Proximity Probe: Machinery Health Monitor
New original vibration sensor with 5mm tip for precise gap measurement. Detects shaft movement before damage occurs. Factory packed with 12-month warranty.
CORE SPECS
| Part Number | 21500-00-12-10-02 |
| Tip Diameter | 5 mm |
| Cable Length | 1.0 metre (39″) ±0.25m |
| Measurement Range | 0.25-2.0 mm |
| Accuracy | ±4% (system calibrated) |
| Response Speed | 0-10,000 Hz |
ELECTRICAL PERFORMANCE
- 200 mV/mil output sensitivity
- Power: -17.5 to -26V DC
- Max current: 12 mA
- Linearity: ±0.02 mm
EXTREME ENVIRONMENT READY
| Probe Temp Range | -34°C to +177°C |
| Electronics Temp | -51°C to +100°C |
| Humidity | 95% non-condensing |
| Weight | 0.59 kg |
INDUSTRY APPLICATIONS
Power Plants: Monitor turbine shaft position
Paper Mills: Detect roller misalignment
Water Pumps: Prevent seal failure
INSTALL GUIDE
1. Mount 1/4-28 threaded probe
2. Position 0.25-2.0mm from shaft
3. Connect coaxial cable
4. Verify 200mV/mil output
PACKAGE CONTENTS
- 21500-00-12-10-02 vibration probe
- Miniature male coaxial connector
- 12-month coverage
GLOBAL SHIPPING
Express delivery via FedEx, UPS, DHL
Tracked from warehouse
FAQ
Q: Minimum gap distance?
A: 0.25mm (10 mils) from target
Q: Chemical resistance?
A: Resists oils, water, mild acids
Q: Calibration needed?
A> Pre-calibrated – ready to install
