21505-00-40-10-02 | 7200 Proximity Standard Mount Probe Bently Nevada

Description

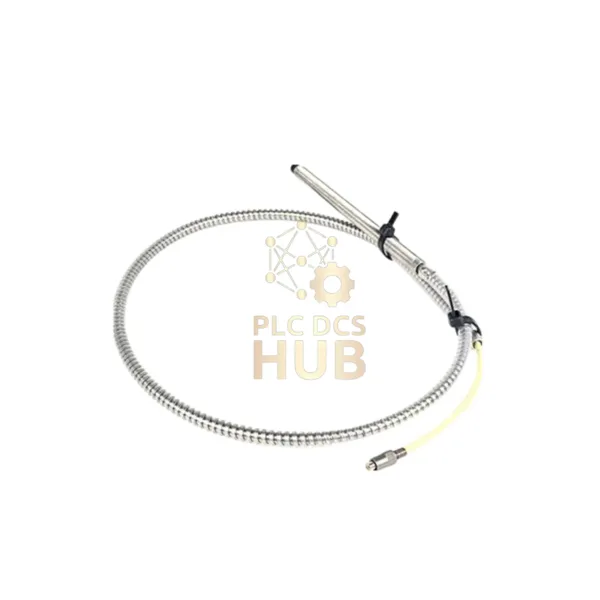

Bently Nevada 21505-00-40-10-02 – Armored Vibration Probe for Harsh Environments

Key Specifications

• ????️ Armor: Stainless steel lead protection
• ???? Range: 0.25-2.0mm (80 mils) | Accuracy: ±0.02mm (calibrated)
• ????️ Temp: -34°C to +177°C (probe)

Full Part Number Structure

21505-00-40-10-02
├─ 00 = 0mm unthreaded
├─ 40 = 4-inch (101.6mm) case
├─ 10 = 1.0m cable (±10cm)
└─ 02 = Coaxial connector

Unique Industrial Applications

• ???? Semiconductor: Wafer handling robot vibration monitoring
• ???? Aerospace: Turbine blade clearance checks
• ⚙️ Steel Rolling Mills: Roller alignment in high-heat zones

Critical Technical Data for 21505-00-40-10-02

• ⚡ Power Input: -17.5V to -26V DC (12mA max)
• ???? Frequency: 0-10kHz (±5% @10kHz)
• ???? Chemical Proof: Resists MEK, DMF, 10% sulfuric acid

Environmental Resilience

• ???? Heat Cycling: 500+ cycles @177°C tested
• ???? Salt Spray: 1000hrs salt fog test passed (ASTM B117)
• ⚡ EMI Resistance: 30V/m RF field immunity (IEC 61000-4-3)
