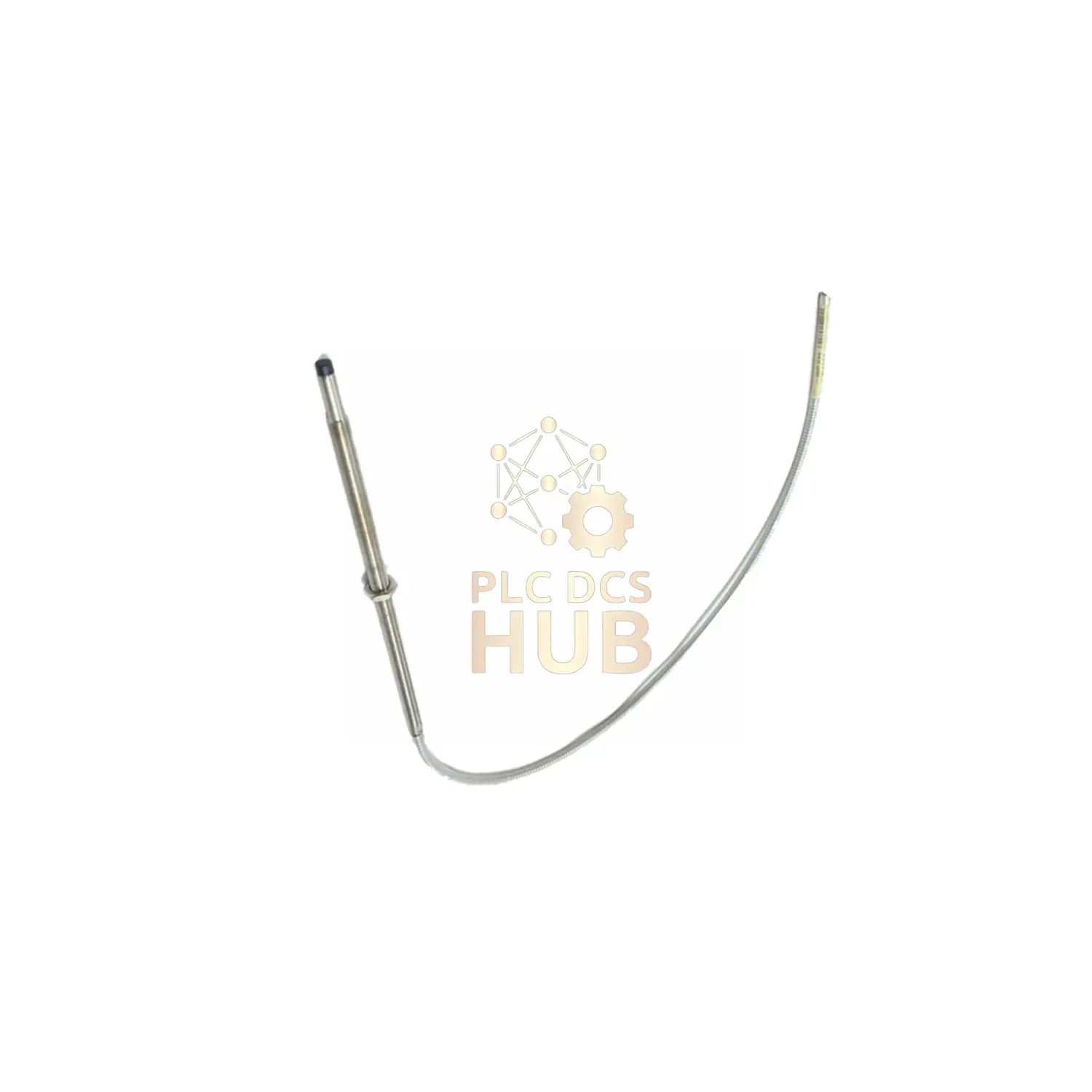

22810-00-05-10-02 Bently Nevada 7200 Series Proximity Probe

Description

Bently Nevada 7200 Series 5mm Proximity Probe – Precision Monitoring for Compact Machinery

Technical Specifications

• Part Number: 22810-00-05-10-02
• Probe Tip: 5mm diameter | 3/8-24 UNF thread
• Range: 0-80 mils (2.0mm) | Output: 7.87mV/µm linear voltage
• Survival Kit: -35°C to +177°C operation | 10m cable

Part Number Breakdown

• 22810-00-05-10-02:
  • -00: Standard 5mm probe configuration
  • -05: 5-meter probe length
  • -10: 10-meter triaxial cable
  • -02: 3/8-24 UNF threaded design

Installation Mastery

• Thread Lock: Apply 18 N·m torque for vibration resistance
• Cable Routing: Use 150mm minimum bend radius
• Grounding: Mandatory for API 670 compliance

Expert FAQ

• Q: Can this probe monitor high-speed spindles?
  A: Yes – 10kHz response captures 600,000 RPM data
• Q: Compatible with non-Bently monitors?
  A: Requires HN-SIG-CONV voltage-to-4mA converter
