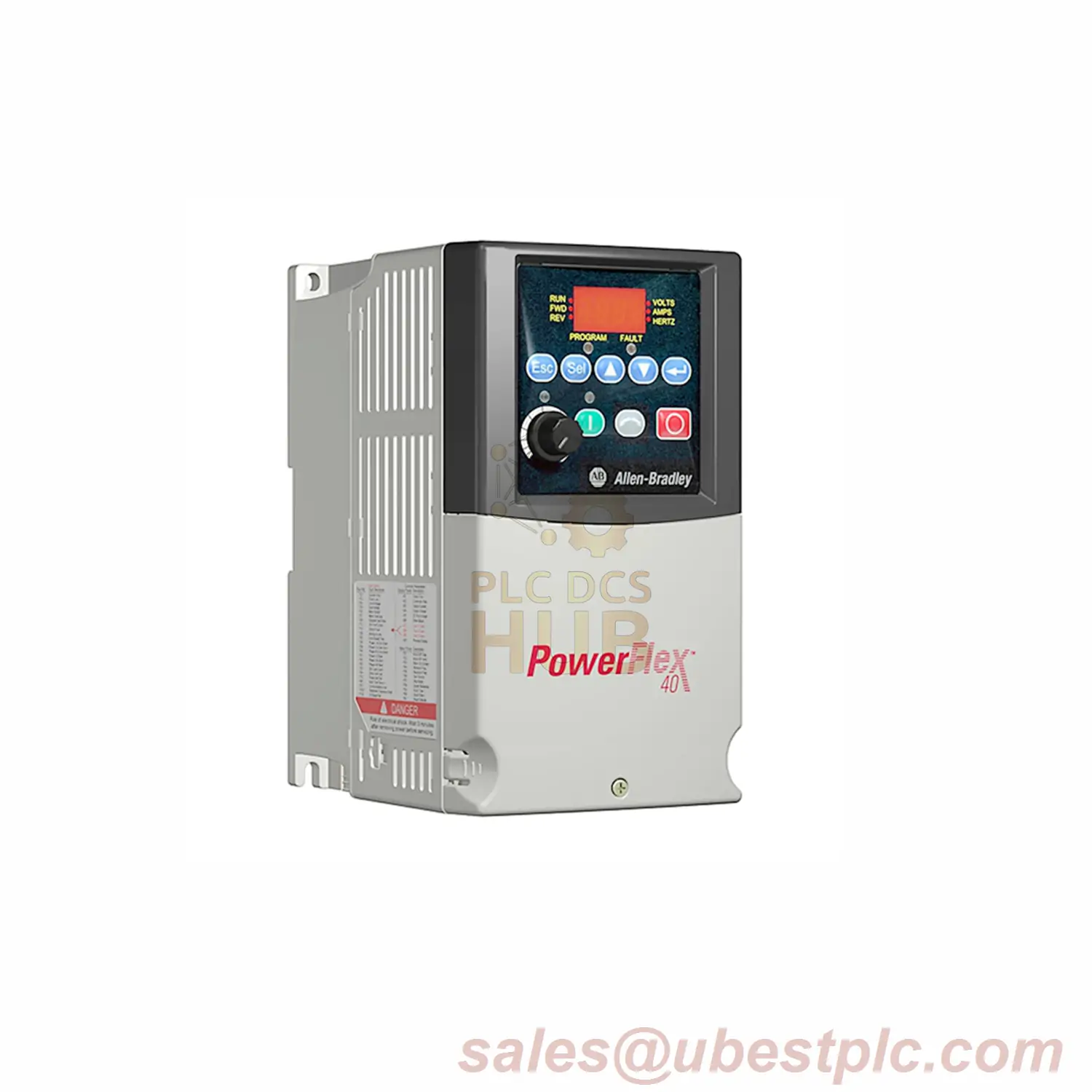

Allen-Bradley PowerFlex 40 Drive – 22B-D010H204
Powerful 5 HP motor control with the 22B-D010H204 variable frequency drive. Perfect for 480V industrial systems needing 10A output. Compact design with sensorless vector control for smooth operation.
Key Benefits
- 5 HP (3.7 kW) power output
- 10A current capacity
- Works with 380-480V AC, 3-phase
- IP20 open enclosure (no heatsink)
- Built-in RS-485 communication
- Easy keypad programming
Technical Details
- Model: 22B-D010H204
- Dimensions: 125 x 204 x 97.5 mm (4.92″ x 8.03″ x 3.84″)
- Weight: 1.68 kg (3.7 lbs)
- Cooling Fan: 2410ML-05W-B30-B00 (replaceable)
- Operating Temp: 32°F to 140°F (0°C to 60°C)
- Storage Temp: -40°F to 185°F (-40°C to 85°C)
- Humidity: Up to 95% (non-condensing)
- Shock Resistance: 30g operating / 50g non-operating
FAQ
- What’s the fan replacement part number? Use 2410ML-05W-B30-B00.
- Can this drive work in wet areas? No, IP20 means no water protection.
- What’s the maximum ambient temperature? 60°C (140°F).
- Does it include a CE filter? No, this is a filterless model.
- What’s the warranty period? 12 months from purchase date.
Shipping & Support
- 12-month warranty
- Fast worldwide shipping via FedEx, UPS, or DHL
- Technical support available
Similar Models
- 22B-V2P3N104 – 2.3A, IP20
- 22B-D017N104 – 17A, 480V
