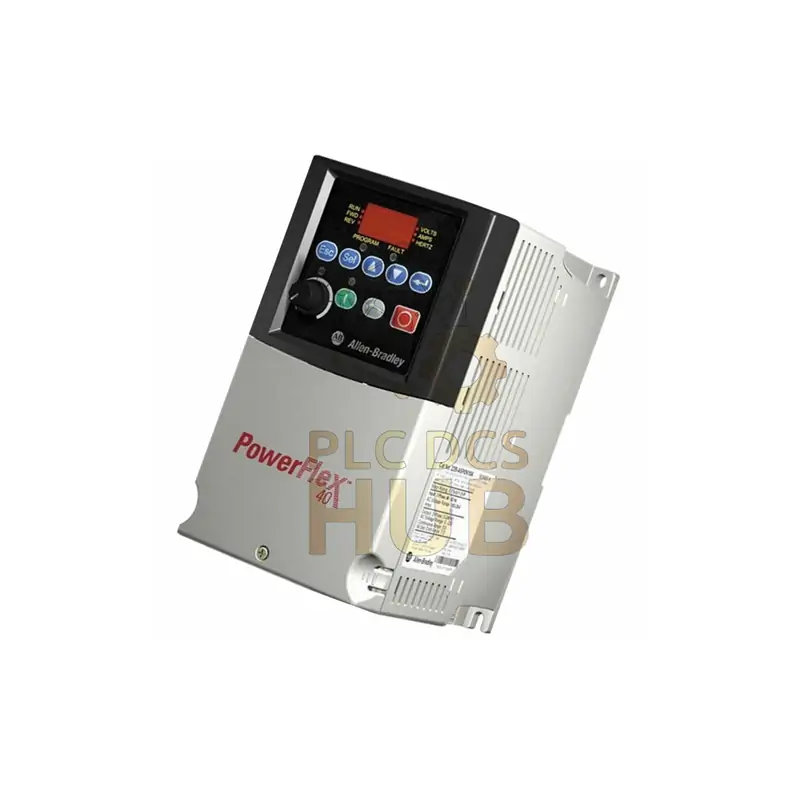

Allen-Bradley PowerFlex 40 Adjustable Frequency Drive – 22B-D4P0C104
Description
The Allen-Bradley 22B-D4P0C104 is a 3-phase AC drive from the PowerFlex 40 series, designed for industrial automation. With 480V AC input and 4.0A output current, it delivers 2 HP motor control. The IP66/NEMA 4X enclosure protects against dust and water jets, making it ideal for harsh environments. Features include an LCD keypad, RS-485 communication, and ESD protection. No built-in EMC filter – external filter required for CE compliance.
Technical Data
- Brand: Allen-Bradley (Rockwell Automation)
- Model: PowerFlex 40 – 22B-D4P0C104
- Voltage: 480V AC, 3-Phase
- Current: 4.0A Output
- Power: 2 HP (1.5 kW)
- Enclosure: IP66/NEMA 4X (Panel Mount)
- Communication: RS-485 (Internal)
- Input Control: Digital Keypad
- Filter: No CE-Compliant EMC Filter
- Operating Temp: -20°C to 50°C
- Storage Temp: -40°C to 85°C
Installation Guide
Mount in a ventilated panel. Disconnect MOV ground if used on ungrounded systems. Follow ESD precautions. For detailed wiring, download the manual here.
Compatibility
Works with 3-phase motors up to 2 HP. Compatible with Rockwell Automation PLCs via RS-485.
Shipping & Warranty
Shipped via FedEx, UPS, or DHL. Includes a 12-month warranty against defects.
Package Includes
- PowerFlex 40 Drive (22B-D4P0C104)
- Installation Guide
- Mounting Hardware
