22B-D6P0C104 | Allen Bradley Drive PowerFlex 40P

Description

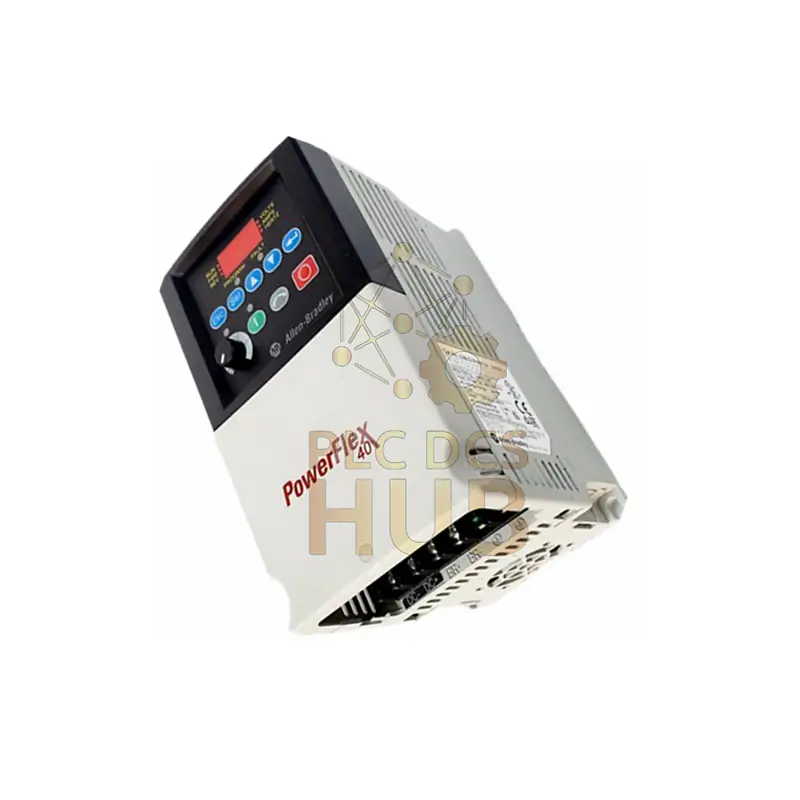

Allen-Bradley 22B-D6P0C104 PowerFlex 40 Drive – 3HP, 480V, IP66 Protection

The 22B-D6P0C104 is a rugged 3HP AC drive with 480V input and IP66 waterproof enclosure. Perfect for harsh environments. Features RS-485 communication and easy keypad control. Download the manual here.

Key Features

• 3HP power (6.0A output)
• 480V AC, 3-phase input
• IP66 / NEMA 4X waterproof enclosure
• RS-485 communication
• Keypad control for easy setup

Technical Specs

• Model: 22B-D6P0C104
• Voltage: 480V AC (±10%)
• Frequency: 50/60Hz
• Current: 6.0A
• Enclosure: Panel Mount (IP66)
• Operating Temp: -10°C to 50°C
• Storage Temp: -40°C to 85°C
• Humidity: 0-95% (non-condensing)

Safety Notes

• Wait 3+ minutes after power-off (high-voltage capacitors)
• Use ESD protection when handling
• Check wiring to avoid motor damage

Warranty & Shipping

• 12-month warranty
• Fast shipping via FedEx, UPS, DHL

FAQ

• Q: Can this drive run on single-phase power?
  A: No, it requires 3-phase 480V AC.
• Q: Is the keypad removable?
  A: Yes, for flexible mounting.
• Q: Does it include a cooling fan?
  A: No, the IP66 enclosure is fanless.
• Q: Can I daisy-chain multiple drives?
  A: Yes, via RS-485.
• Q: What’s the weight?
  A: Approx. 4.5 kg.

Need setup help? Download the full manual here.
