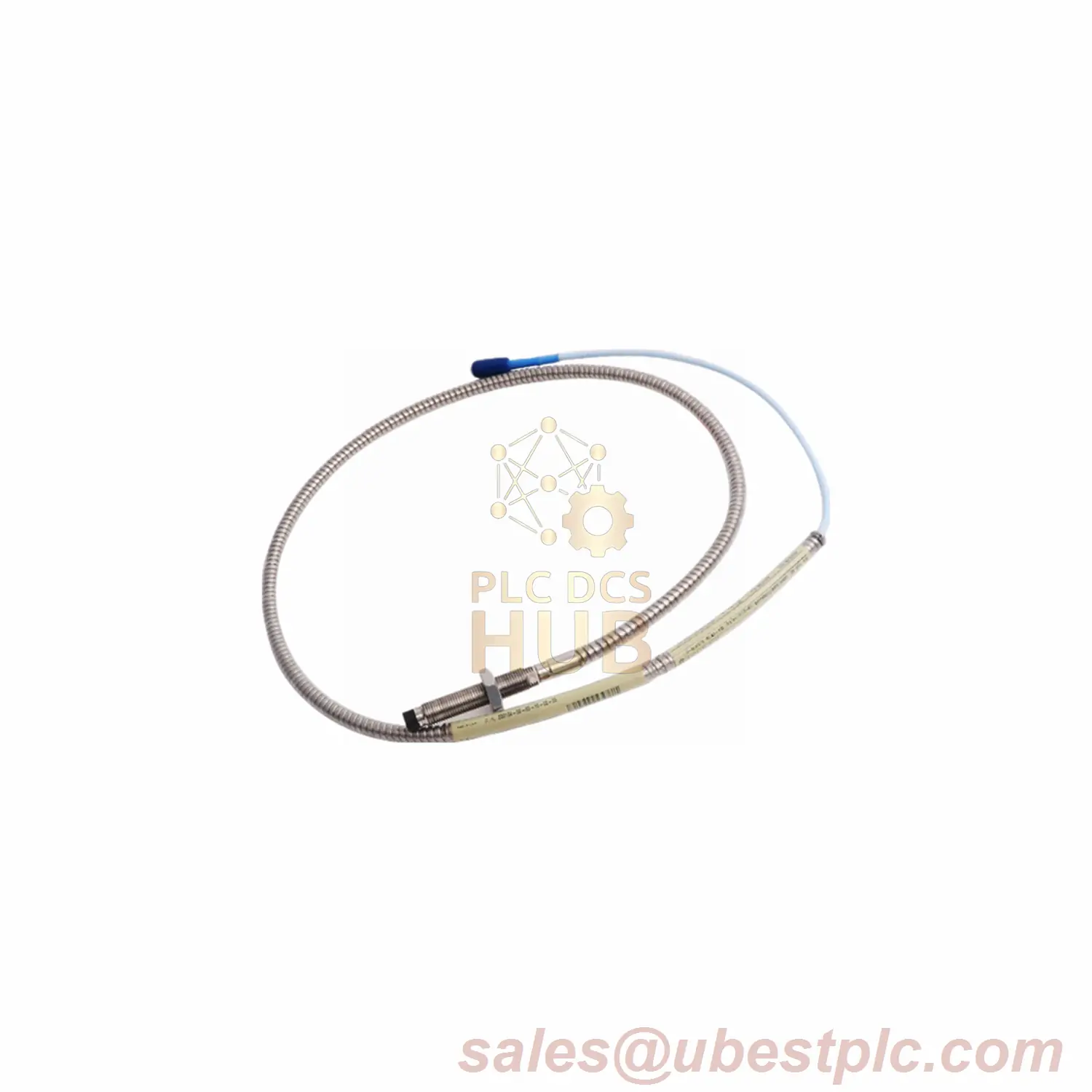

330708-00-10-10-02-05: Compact Vibration Probe for Tight Spaces
1-inch short body probe with 1-meter cable. Perfect for crowded machinery areas. Made in USA with Bently Nevada quality.
SUFFIX MEANING
- 330708 – Base Model (11mm Probe)
- 00 – 0in Unthreaded
- 10 – 1.0in Case
- 10 – 1.0m Cable
- 02 – Standard Cable
- 05 – Multiple Approvals
CORE SPECS
- Size: 11mm sensing tip
- Cable: 1m triaxial FEP
- Temp: -52°C to +177°C
- Thread: 5/8-18 UNF
- Weight: 0.17kg
ELECTRICAL DATA
- Resistance: 5.9Ω ±0.5
- Impedance: 75Ω
- Signal Type: Triaxial
MOUNTING GUIDE
- Hand tighten plus 1/4 turn
- Max torque: 15.2 N•m
- Thread max: 0.938in
- Min install temp: -34°C
WORKS WITH
All Bently Nevada 3300 XL systems. Optional COO available.
CERTIFIED
Multiple agency approvals (option 05). Meets industrial standards.
IN THE BOX
- 1x Probe (330708-00-10-10-02-05)
- 12-month warranty
SHIPPING
Global delivery via FedEx, UPS, DHL. Ships same day.
SHORT PROBE BENEFITS
- Fits where long probes can’t
- Lighter weight (0.17kg)
- Easier routing in tight areas
FAQ
Q: Minimum space needed?
A: 1in clearance for installation
Q: Cable length options?
A: 1m, 5m, or 9m available
Q: Works in cold areas?
A: Yes, down to -52°C
