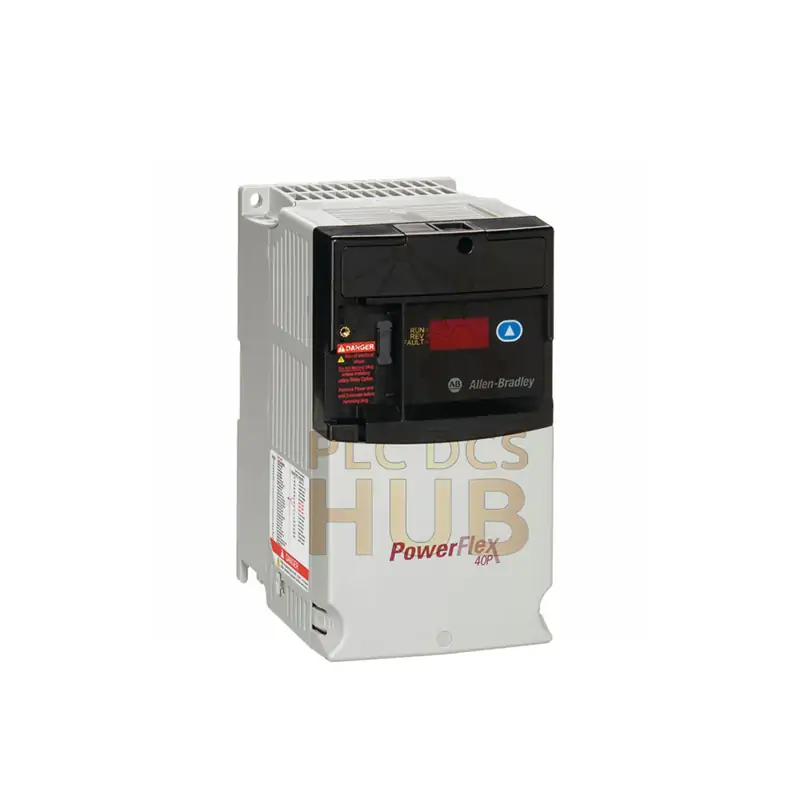

Allen-Bradley PowerFlex 40P AC Drive – 22D-B012F104
Precision motor control for industrial applications. This 3 HP drive offers 12A output, multiple control modes, and robust protection features in a compact flange-mount design.
Product Description
The Allen-Bradley 22D-B012F104 is a PowerFlex 40P variable frequency drive for three-phase motors. It features:
- 208-240V AC input range
- Multiple control methods: V/Hz, Sensorless Vector, PWM
- Built-in PID controller and auto-tuning
- Compact Frame Size B with flange mount (IP20)
- 4-digit LCD display with Run/Fault/Rev LEDs
Technical Specifications
| Brand | Allen-Bradley |
| Model | 22D-B012F104 |
| Output Current | 12A |
| Horsepower | 3 HP (2.2 kW) |
| Voltage | 208-240V AC 3-Phase |
| Enclosure | IP20 (NEMA Open) |
| Operating Temp | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 125 x 204 x 113 mm (4.92 x 8.03 x 4.45 in) |
Installation & Compatibility
- Mounting: Flange mount only
- Compatible motors: 3-phase induction motors up to 3 HP
- Protection: Includes motor overload, ground fault, and 6kV transient protection
Package Includes
- PowerFlex 40P Drive (22D-B012F104)
- Installation manual
- 12-month warranty
Shipping Options
Available via FedEx, UPS, or DHL with worldwide shipping.
Similar Products
- 22D-D012N104 – NEMA 1 enclosure version
- 22D-D017F104 – Higher current (17A) version
