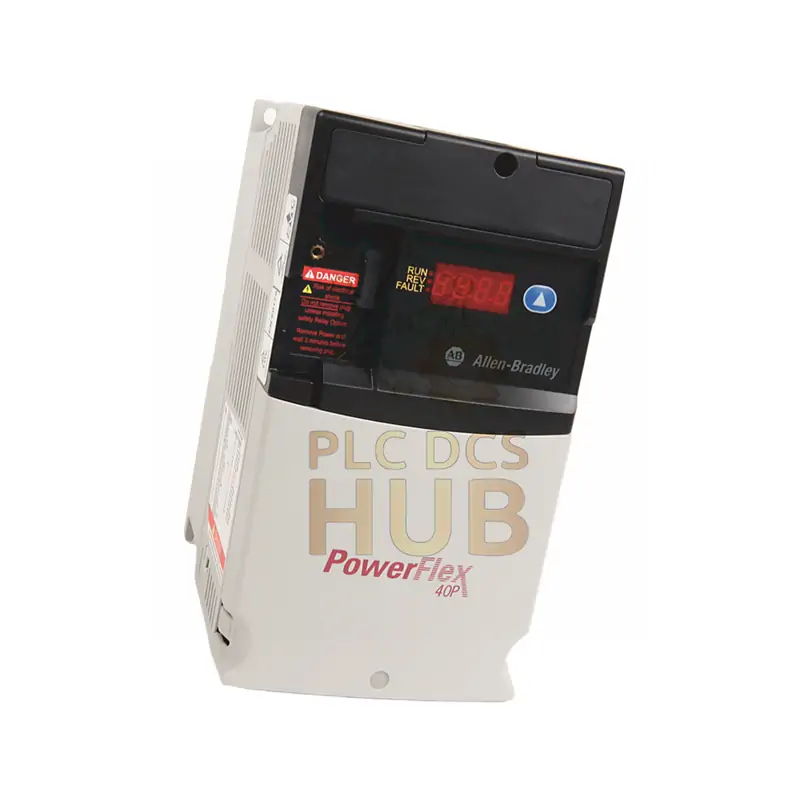

Allen-Bradley 22D-D024N104 PowerFlex 40P AC Drive
Control your motors with the Allen-Bradley 22D-D024N104. This PowerFlex 40P AC drive offers smooth speed control for 3-phase motors. It helps save energy and lower operating costs. The drive works with 380-480V AC systems and delivers 15 HP power. Its compact design saves panel space. The built-in display shows status and diagnostics.
Key Features
- Brand: Allen-Bradley
- Series: PowerFlex 40P
- Model: 22D-D024N104
- Power Rating: 15 HP (11 kW)
- Voltage: 380-480V AC 3-Phase
- Current: 24 Amps Output
- Enclosure: IP20 / NEMA Open
Technical Specifications
- Input Voltage: 380-480V AC 3-Phase
- Output Power: 11 kW (15 HP)
- Output Current: 24.0 Amps
- Output Frequency: 0-500 Hz
- Control Methods: V/Hz, Sensorless Vector
- Digital Inputs: 7 programmable
- Analog Inputs: 1 (0-10V DC/0-20mA)
- Communication: RS485 built-in
- Operating Temperature: 14-122°F (-10 to 50°C)
- Overload Capacity: 150% for 60 seconds
Installation Guide
- Panel mount installation
- Requires 3-phase power supply
- Use proper branch circuit protection
- Follow local electrical codes
Compatibility
- Works with 3-phase AC motors
- Supports multiple communication protocols
- Optional communication cards available
What’s Included
- One (1) Allen-Bradley 22D-D024N104 Drive
- Installation manual
Shipping Info
- We ship worldwide using FedEx, UPS, and DHL
- Fast delivery options available
Warranty
- 12-month quality guarantee
- Coverage for defects and malfunctions
