Description

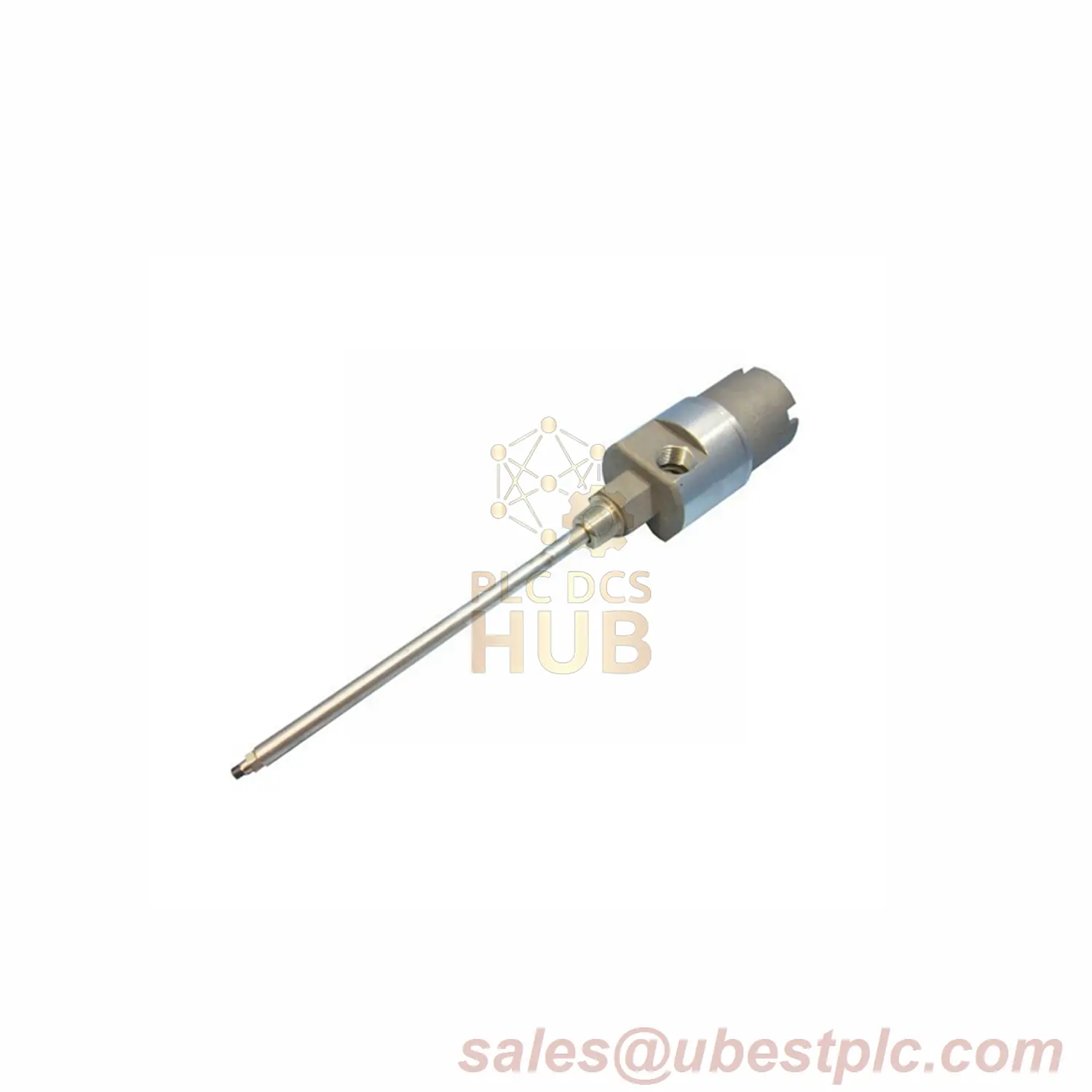

Bently Nevada 24701-00-00-20-060-00-02 Probe Housing Assembly
Basic housing assembly for proximity probe installations. Includes 2″ standoff adapter but no probe or cable.
Key Specifications
- Standoff Adapter: 2.0 inch (50.8 mm)
- Probe Penetration: 6.0 inch (152.4 mm)
- Mounting Thread: 3/4-14 NPT
- Material: 303/304 stainless steel
- Weight: 4.1 lbs (1.8 kg)
- Max Length: 13.5 inch (34.3 cm)
Part Number Structure
24701 - Base model -00 - No probe included -00 - No cable included -20 - 2" standoff adapter -060 - 6" probe penetration -00 - No fittings included -02 - 3/4-14 NPT thread
Industrial Applications
Food Processing Mixers
Used in stainless steel mixing tanks where probes are purchased separately to meet hygiene standards.
Pharmaceutical Equipment
Installed on tablet press machines where components must be certified separately.
Semiconductor Clean Rooms
Housing only used in wafer fabrication tools where probes are installed later.
Comparison With Similar Models
| Model | Key Differences | Link |
|---|---|---|
| 24701-00-00-20-060-00-02 | No probe/cable, 2″ standoff, 6″ penetration | Current Item |
| 24701-16-05-25-059-04-02 | Includes 8mm probe, 1.5m cable, 2.5″ standoff | View Details |
| 24701-16-05-00-035-04-02 | Includes 8mm probe, 1.5m cable, no standoff | View Details |
Technical Details
- Body Material: 303 stainless steel
- Sleeve Material: 304 stainless steel
- Pressure Rating: 1000 psi (69 bar)
- Temperature Range: -40°F to 250°F (-40°C to 121°C)
- Surface Finish: 32 Ra microinches
