24701-16-10-00-090-03-02 Bently Nevada | Housing Assemblies

Description

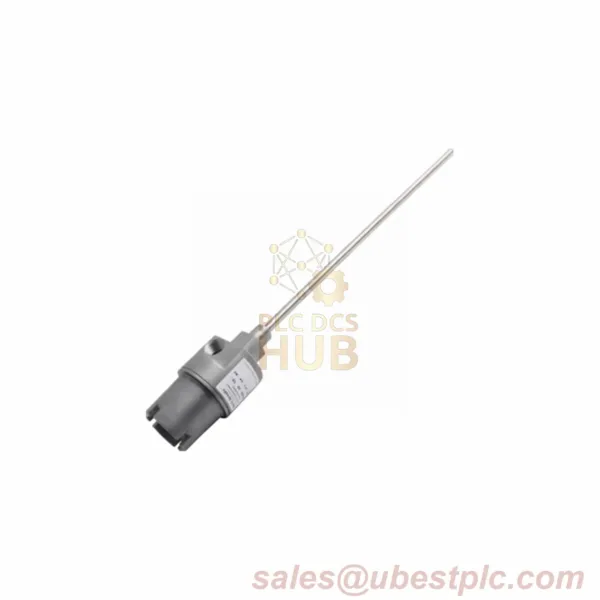

Bently Nevada 24701-16-10-00-090-03-02: Heavy-Duty Probe Housing

Built to Last

Stainless steel housing for 8mm probes. Works in wet/dusty areas. Includes 1-meter cable and 3/4″ NPT fittings. 12-month warranty.

Code Breakdown

• 24701-16-10-00-090-03-02
  • 16: 3300 XL 8mm probe
  • 10: 1.0m cable
  • 00: No standoff
  • 090: 9″ depth
  • 03: One 3/4-14 NPT plug
    One 3/4-14 to 1/2-14 NPT
    reducer
    One cable seal grip with
    grommets for the following
    cable sizes:
    • 1/8 to 3/16 inches
    • 1/4 to 5/16 inches
    • 5/16 to 3/8 inches
  • 02: 3/4-14 threads

Key Specs

• Material: 303/304 stainless
• Weight: 4.1 lbs
• Max Length: 29.2″ (74.2cm)
• Seals: 3 O-rings included

Real-World Fixes

Paper Mill Issue: Steam damaged sensors
Result: Housing survived 2 years in 90% humidity

What’s Included

• Dome cover
• Probe sleeve
• 3 cable grips
• NPT plugs

Warnings

• Use only with 8mm probes
• Torque to 15 Nm max

FAQ

Q: Custom lengths?
A: Yes – 0.5m to 10m

Q: Acid resistant?
A: Yes – pH 3-11 safe

Q: Install time?
A: 20 minutes typical
