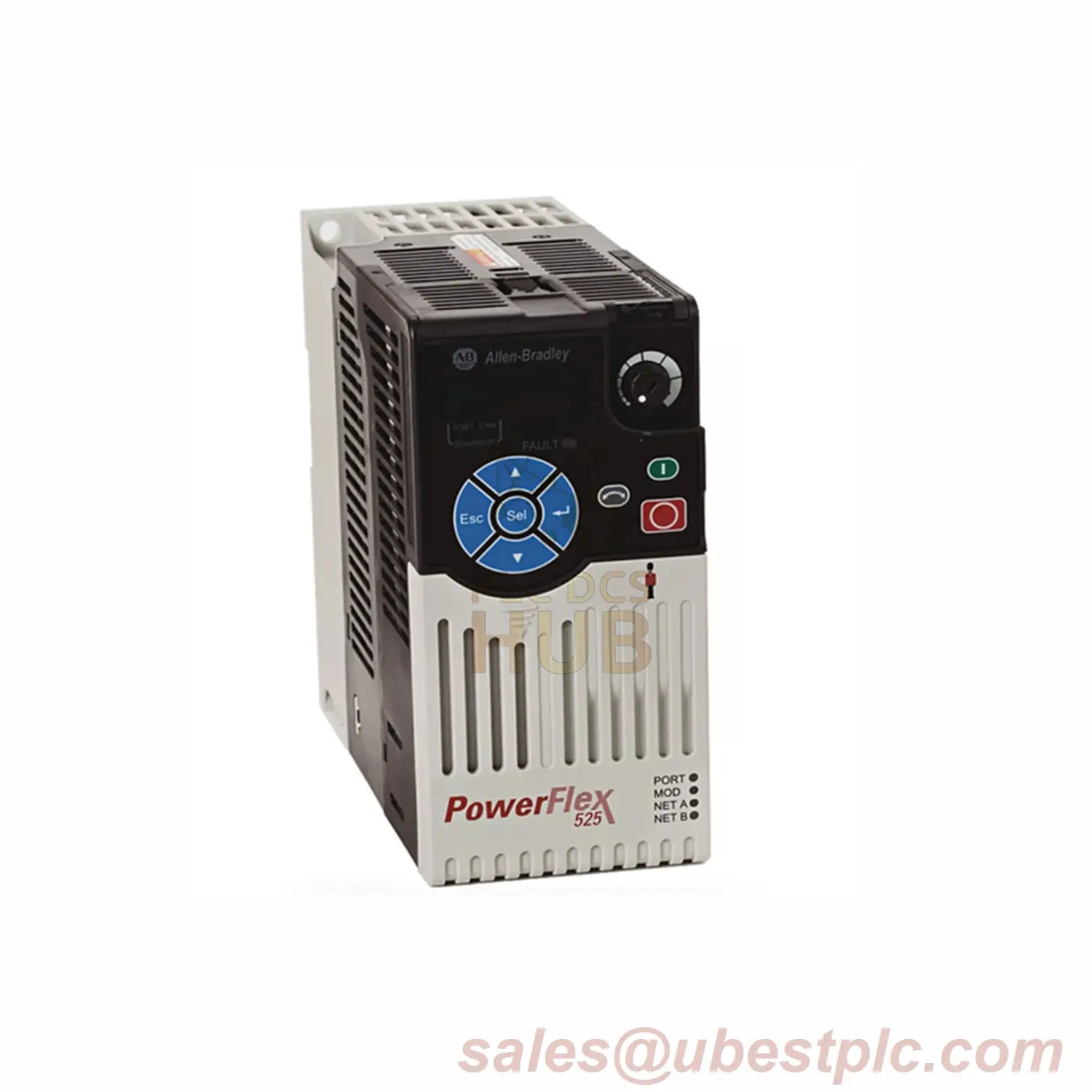

Allen-Bradley 25B-D043N114 PowerFlex 525 Drive – 30 HP Industrial VFD
Heavy-Duty Motor Control Solution
The Allen-Bradley 25B-D043N114 delivers 30 HP (22 kW) of reliable motor control. Perfect for demanding industrial applications with 380-480V AC power systems. Compact design saves panel space.
Top Features At A Glance
- 30 HP normal duty (25 HP heavy duty)
- Handles 43A output current
- Works with 380-480V AC, 3-phase
- Built-in Ethernet & RS485 communication
- Safe-Torque Off (STO) safety feature
- Zero-stack mounting saves space
Complete Technical Specifications
- Model: 25B-D043N114 (PowerFlex 525)
- Input: 380-480V AC (±15%), 3-phase, 47-63 Hz
- Output: 0-460V, 43A, 22 kW (30 HP)
- Frequency Range: 0-500 Hz programmable
- Frame Size: E
- I/O: 7 DI, 2 DO, 2 AI, 1 AO
- Overload Capacity: 150% for 3 sec (heavy duty)
- Braking: Built-in dynamic braking
- Mounting: Panel (IP20), zero-stack possible
- PID Control: 2 automatic control loops
Expert Answers to Your Questions
- What’s the difference between normal and heavy duty?
Normal duty allows 30 HP continuous, heavy duty limits to 25 HP but with higher overload capacity. - Can this drive stop quickly?
Yes, features dynamic braking and PointStop function for fast stopping. - How many motors can it control?
Controls one 3-phase motor up to 30 HP (22 kW). - Is programming difficult?
No, includes simple LCD interface and free software tools. - Can I add safety features?
Yes, supports STO and optional safety cards for extra protection.
Order With Confidence
- Fast worldwide shipping via FedEx, UPS, DHL
- 12-month warranty – guaranteed quality
Need installation help? Download the complete PowerFlex 525 manual here.
