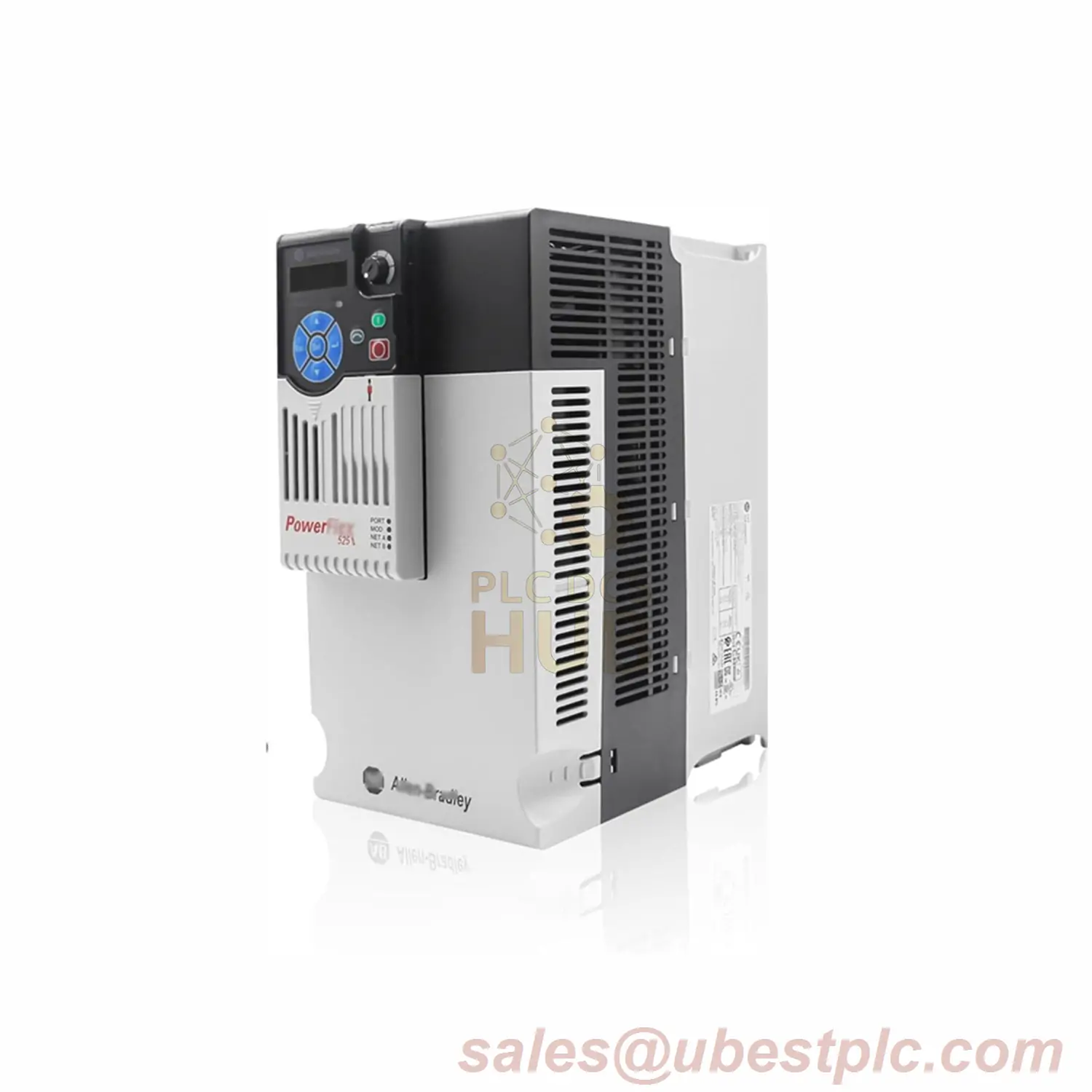

Allen-Bradley 25B-D1P4N114 PowerFlex 525 Drive – Compact 0.5HP Control
Precision motor control for small applications with the 25B-D1P4N114 – a space-saving 480V drive with big features.
Perfect For Small Power Needs
- Works with 480V 3-phase systems
- Ultra-compact Frame A design
- Built-in EMC filter included
- Easy DIN rail mounting
- Safe torque-off protection
Technical Specifications
- Model: 25B-D1P4N114
- Power: 0.5HP (0.4kW)
- Input: 323-528V AC (3-phase)
- Output: 0-460V AC (3-phase)
- Current: 1.4 Amps
- Frequency Range: 0-500Hz
- Weight: 2.2 lbs (1 kg)
- Size: 2.8″ x 5.9″ x 5.5″
Smart Features
- 7 digital inputs for flexible control
- 2 analog inputs (0-10V/4-20mA)
- Built-in Ethernet communication
- Zero stacking capability
- Works from 14°F to 122°F
Package Contents
- Drive unit
- Mounting clips
- Quick start guide
Warranty Protection
12-month coverage against defects.
Fast Shipping
Reliable delivery via FedEx, UPS or DHL.
Expert Answers
- Q: Can I use this for a small pump?
A: Yes, ideal for 0.5HP pumps. - Q: What’s the minimum cable size?
A: 18 AWG for runs under 50ft. - Q: Does it need a cooling fan?
A: No, passive cooling sufficient. - Q: Can I daisy-chain with Ethernet?
A: Yes, supports network connections. - Q: What’s the response time for STO?
A: Less than 20ms safety response.
For complete setup instructions: Download Full Manual Here
