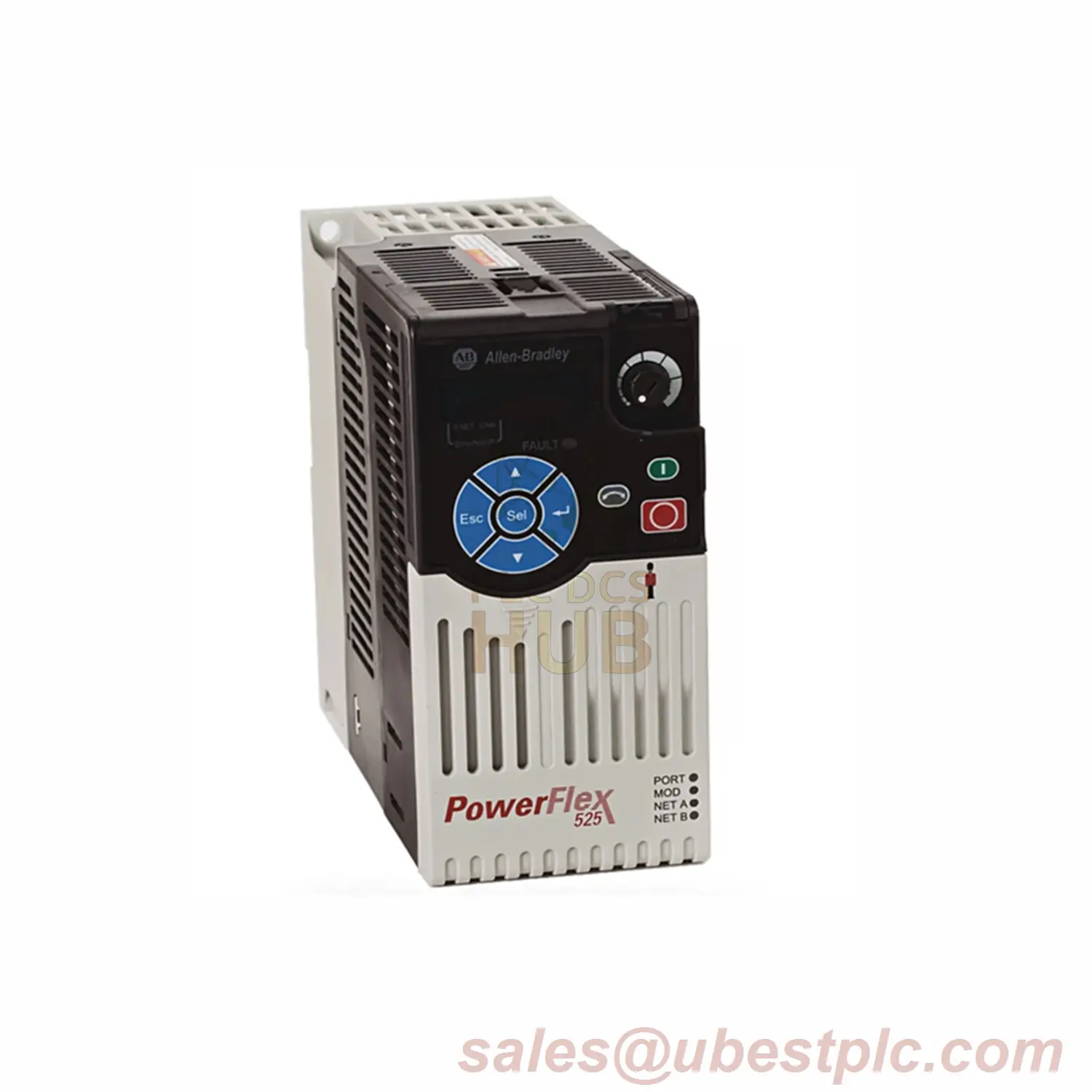

Allen-Bradley 25B-D2P3N314 PowerFlex 525 Drive – 1HP Compact VFD
Space-saving 1HP motor controller with built-in EMC filter. The 25B-D2P3N314 delivers 2.3A output for small industrial applications.
Top Features
- 1HP (0.75kW) motor control
- Works with 480V 3-phase power
- Built-in EMC filter reduces interference
- Compact Frame A design
- IGBT braking transistor included
Technical Specifications
- Model: PowerFlex 525 25B-D2P3N314
- Input: 480V AC, 3-phase, 50/60Hz
- Output: 0-480V AC, 2.3A
- Frequency Range: 0-500Hz adjustable
- Enclosure: IP20/NEMA Open
- Dimensions: 87 × 180 × 172 mm
- Weight: 1.4 kg
- Mounting: Panel or DIN rail
- Communication: EtherNet/IP, RS485
Advanced Capabilities
- 4 programmable acceleration/deceleration curves
- Safe Torque-Off safety function
- USB port for easy configuration
- LCD display with status monitoring
- Zero-stacking installation option
Warranty & Shipping
- 12-month product warranty
- Fast worldwide shipping via FedEx/UPS/DHL
Expert Questions
- What’s the overload capacity? 150% for 60 seconds
- Can it control PM motors? Yes, permanent magnet compatible
- What’s the operating temperature range? 0°C to 45°C
- Does it need external cooling? No, fanless design
- Can I daisy-chain multiple units? Yes, via RS485 network
Compare With
- 25B-B062N104 (Higher power 10HP model)
- 25B-CTMFC1 (Control module only)
