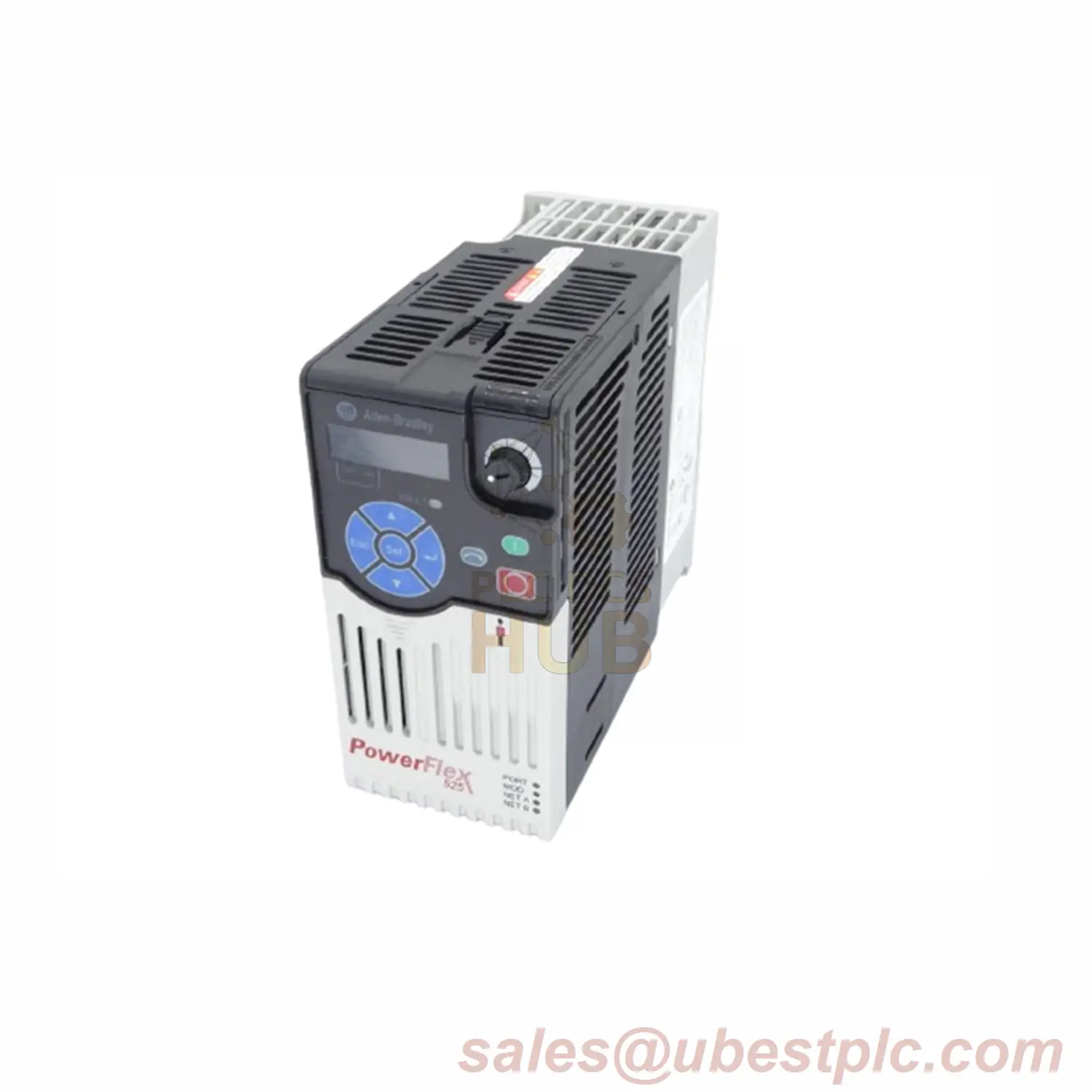

25B-D6P0N104 Allen-Bradley | PowerFlex525 AC Drive

Description

Allen-Bradley 25B-D6P0N104 PowerFlex 525 Drive – 3HP Industrial VFD

Reliable motor control for demanding applications. The 25B-D6P0N104 delivers 2.2kW power with advanced networking capabilities.

Key Features

• 6.0A output for 3HP motors
• Built-in EtherNet/IP connectivity
• Compact Frame A design
• Backlit LCD for easy monitoring
• Supports sensorless vector control

Technical Specifications

• Brand: Allen-Bradley
• Model: 25B-D6P0N104
• Input: 323-528V AC, 3-phase
• Output: 0-460V AC, 6.0A
• Power: 2.2kW (3HP)
• Frequency: 0-500Hz adjustable
• Dimensions: 172x152x165mm (HxWxD)
• Weight: 2.1kg
• Mounting: Panel or DIN rail
• Communication: EtherNet/IP, DeviceNet, Profibus
• Certifications: UL, RoHS, CE

Advanced Control

• 7 digital inputs + 2 analog inputs
• Closed loop control capability
• Built-in PID controller
• Dynamic braking support
• Device Level Ring (DLR) support

Frequently Asked Questions

• Q: What’s the maximum ambient temperature?
  A: Rated for 50°C (122°F) operation.
• Q: Does it include a cooling fan?
  A: Yes, includes integrated cooling.
• Q: Can I daisy-chain multiple drives?
  A: Yes, via EtherNet/IP DLR topology.
• Q: What’s the minimum motor size?
  A: Suitable for motors down to 0.5HP.
• Q: Is programming software included?
  A: Free software available for download.

Package Contents

• 25B-D6P0N104 drive unit
• Installation guide
• Mounting hardware kit

Warranty

12-month quality guarantee.

Shipping Options

Fast global delivery via FedEx, UPS or DHL.

Compare With

• 25B-D017N104 – 17A higher power model
• 25B-D017N114 – Alternative 17A version
