Description
Premium Extension Cable for High-Temp Monitoring

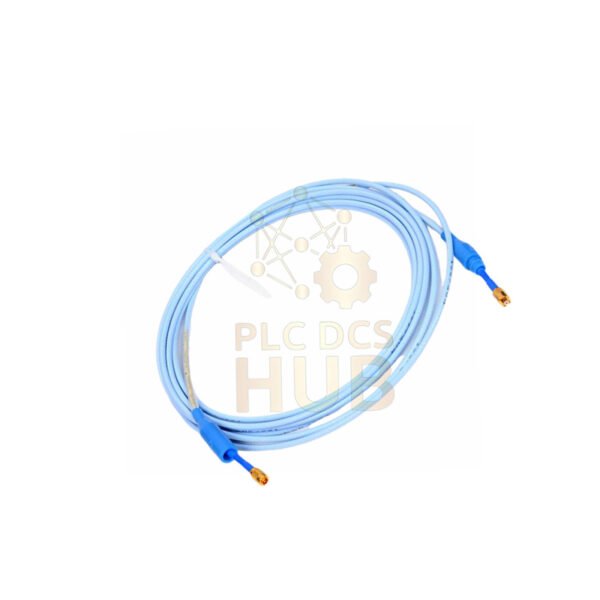

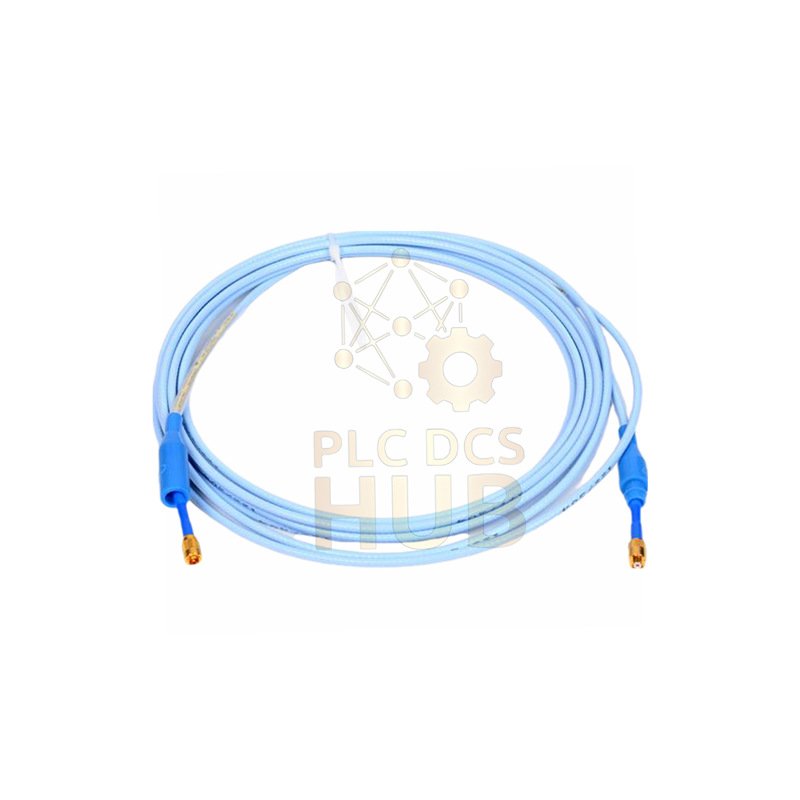

Extend your measurement range with the Bently Nevada 330190-035-00-00 cable. This Extended Temperature Range (ETR) cable is built for tough conditions. It ensures your vibration data stays accurate even in extreme heat. It connects your probe to the monitor perfectly.
Product Configuration & Specifications
- Full Product Identity
- Brand: Bently Nevada
- Core Model: 330190-035-00-00
- Series & Type: 3300 XL ETR Extension Cable
- Key Feature: Extended Temperature Range
- Detailed Build & Options
- Product No. 330190-035-00-00
- -035: Cable Length = 3.5 meters (13.1 feet)
- -00: Cable Type = Standard Triaxial
- -00: Agency Approval = Not Required
- Product No. 330190-035-00-00
- Electrical Performance Data
- DC Resistance (Center): 0.77 Ω ±0.12 Ω
- DC Resistance (Jacket): 0.23 Ω ±0.05 Ω
- Capacitance: ~69.9 pF/meter (Typical)
- Impedance: 75 Ω Triaxial Design
- Max Field Wiring: Up to 305m (1000 ft)
- System Linear Range: 2.0 mm (80 mils)
- Recommended Gap (Radial): 1.27 mm (50 mils) / -9 Vdc
- Physical & Environmental Specs
- Cable Length: 3.5m (13.1 ft) Total
- Cable Insulation: FEP (Fluoroethylene Propylene)
- Temperature Range (ETR): -52°C to +260°C (-62°F to +500°F)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Connector Material: Gold-Plated Brass/Beryllium Copper
- Max Connector Torque: 0.565 N•m (5 in-lbf)
- Cable Weight: 34 g/m (0.4 oz/ft) – Standard
- Compliance & Safety Certifications
- EMC: Complies with EU Directive 2014/30/EU
- Emissions/Immunity: EN 61000-6-4 & EN 61000-6-2
- RoHS: Complies with Directive 2011/65/EU
- Maritime: Meets ABS Classification Rules
- Functional Safety: Capable for use in SIL 2 / SIL 3 systems
- FCC: Part 15 Compliant for USA
Key Product Advantages
- Wide Heat Tolerance: Works from freezing -52°C up to +260°C.
- Stable Signal: Low resistance and capacitance keep your readings accurate.
- Durable Build: FEP insulation and gold connectors fight corrosion and wear.
- Easy to Install: Clear 75 Ω design and flexible cable simplify setup.
- Globally Approved: Meets EMC, RoHS, and marine standards for worldwide use.
Installation & System Fit
This cable links 3300 XL ETR probes to their monitors. It is physically and electrically compatible with standard 3300 XL 8mm systems. Always follow the minimum bend radius during installation to protect the internal wires.
Warranty & Fast Global Shipping
All products come with a 12-month warranty. We ship quickly and reliably worldwide using FedEx, UPS, and DHL. Tracking details are provided for every order.
Frequently Asked Questions
What does the “ETR” in the name mean for me?
ETR means Extended Temperature Range. This cable can handle much higher ambient heat near furnaces or turbines without failing.
Can I use this 3.5m cable to replace a shorter one?
Yes, you can. The system calibrates based on total cable length from probe to monitor. Using a longer extension cable is generally fine, but avoid coiling excess tightly.
Why is the bend radius specification important?
Bending the cable too sharply can damage the internal shielding. This can cause signal noise or calibration errors. Always maintain at least a 1-inch curve.
My site has strong electrical interference. Is this cable shielded?
Yes. It is a triaxial cable with two layers of shielding. This provides excellent protection against common plant electrical noise.
Do I need special tools to attach the connector?
No special tools are needed. The connectors are designed for hand-tightening. Use a torque wrench if available, but do not exceed 5 in-lbf to avoid damage.
