323073-01 Bently Nevada Shutdown Module | Emergency Trip Device

Description

Product Overview

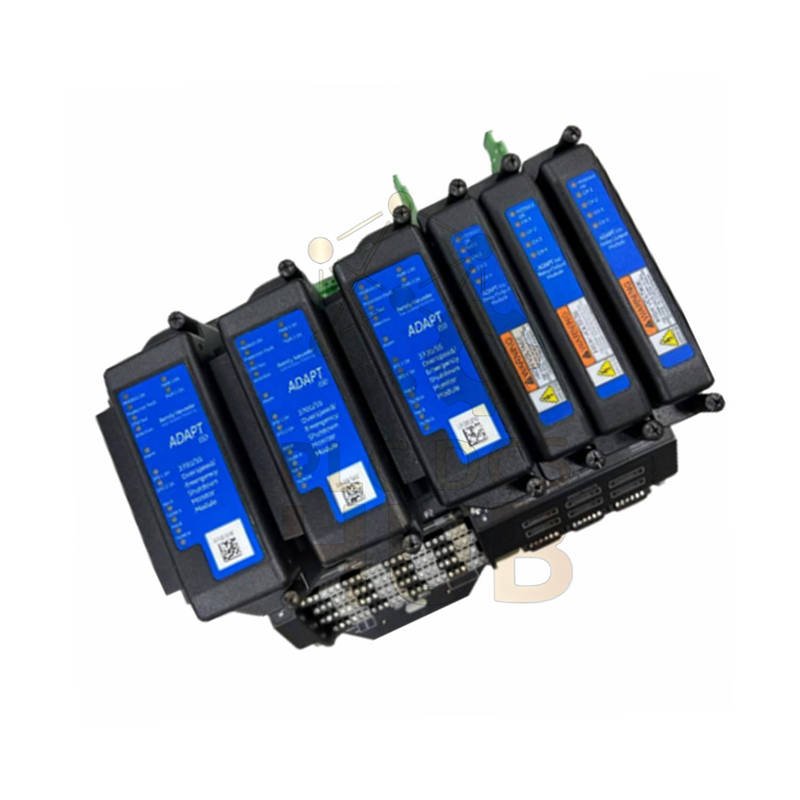

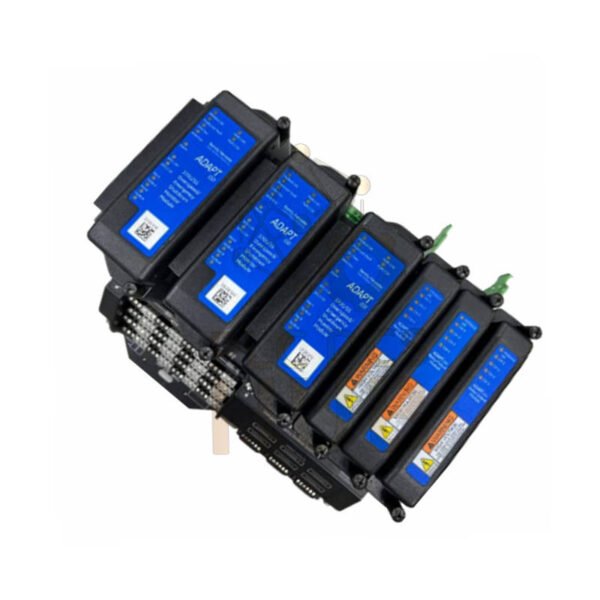

Bently Nevada 323073-01 is an emergency shutdown device for fast stop response. It supports safe trip action in risk zones. It suits turbines, compressors, reactors, and high-value assets. And it works with 24V DC systems and low power demand. It helps reduce damage during fault events.

• Fast shutdown logic for emergency states.
• Clear wiring and simple setup reduce install time.
• Stable relay output for control circuits.
• Low heat build-up for longer device life.
• Made for harsh plant conditions with shock compliance.

Technical Specifications

• Brand: Bently Nevada
• Model: 323073-01
• Category: Emergency shutdown device
• Dimensions: 15.8 cm x 2.8 cm x 15.8 cm
• Weight: 0.6 kg
• Operating Temp: -30°C to +65°C
• Storage Temp: -45°C to +85°C
• Humidity: 0% to 95% non-condensing
• Vibration: 3 g @ 3-57 Hz / 5 g @ 57-500 Hz
• Shock: 15 g for 11 mS per IEC 60068-2
• Relay Load: 5A at 250VAC
• Minimum Load: 10mA at 24VDC
• Power Input: 24V DC
• Power Draw: <5W

Additional Performance Values

• Response Time: Under 50 mS typical
• Isolation Strength: 1.5 kV internal path rating
• Noise Immunity: Built for EMI and plant interference
• Contact Life: 100k mechanical cycles (typical)
• Service Interval: Basic check during shutdown windows

Product Advantages

• Supports rapid event containment.
• Small form factor saves panel space.
• Low power keeps system load small.
• Works with classic and modern control racks.
• Clear terminal layout for fast wiring.

Shipping

• Global delivery: FedEx, UPS, DHL
• Protective export packing for transport safety

Warranty

• 12-month coverage for hardware issues
• Replacement support for confirmed failures

Professional FAQ

Can it link with shutdown solenoids?

Yes. Confirm coil current and relay match.

What if panel noise affects signals?

Use shielded cable and proper grounding path.

Does it support retrofit projects?

Yes. Check space, relay style, and I/O match.

Will cold weather change performance?

It works within the rated temperature span listed.

How do I avoid false trips?

Check wiring, stable DC supply, and clean relay loads.

Purchase Guidance

• Check control voltage and relay load before ordering.
• Confirm panel depth for correct mounting.
• Ask for advice on retrofitting older racks.
• Share device list for batch order matching.
