3300 NSv Extension Cable Bently Nevada | 330930-045-03-05

Description

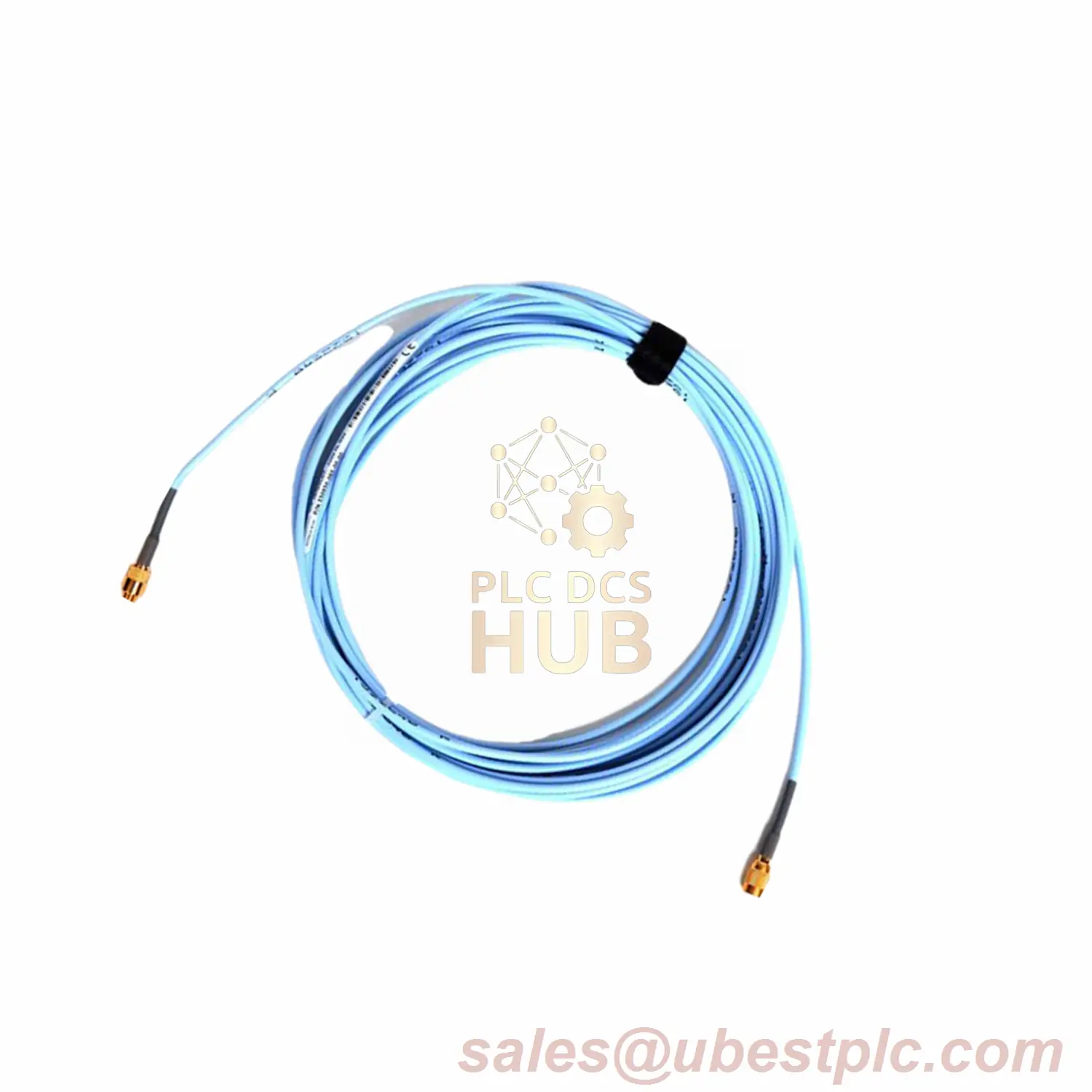

Bently Nevada 330930-045-03-05: Precision NSv Extension Cable

High-performance 4.5m cable for vibration monitoring with connector protection. Made in USA for industrial reliability.

Model Number Breakdown

• ⚡ 330930: 3300 NSv Series
• ???? 045: 4.5 meter length
• ????️ 03: Unarmored with connector protector
• ???? 05: Multiple international approvals

Technical Specifications

• Electrical Properties:
  • Capacitance: 69.9 pF/m
  • Center conductor: 0.220 Ω/m
  • Shield: 0.066 Ω/m
• Measurement Range:
  • Linear: 0.25-1.75mm
  • Recommended gap: 1.0mm
• Physical Properties:
  • Weight: 1.5kg (shipping)
  • Pull strength: 220N at all points

Connection System

• Gold-plated brass connectors
• 75Ω coaxial design
• FEP insulation for chemical resistance
• Optional stainless steel armor available

Shipping & Support

• 12-month warranty
• Fast global shipping: FedEx, UPS, DHL
• Includes: Connector protector, documentation

Technical FAQs

• Q: What’s the difference between NSv and XL cables?
  A: NSv has smaller linear range (1.5mm vs 4mm)
• Q: Can I add armor later?
  A: No, armor must be ordered with cable
• Q: What approvals does “05” include?
  A: Multiple international standards (contact for details)
• Q: Maximum system length?
  A: 305 meters including probe cable
• Q: Is this waterproof?
  A: Connector protector provides moisture resistance
