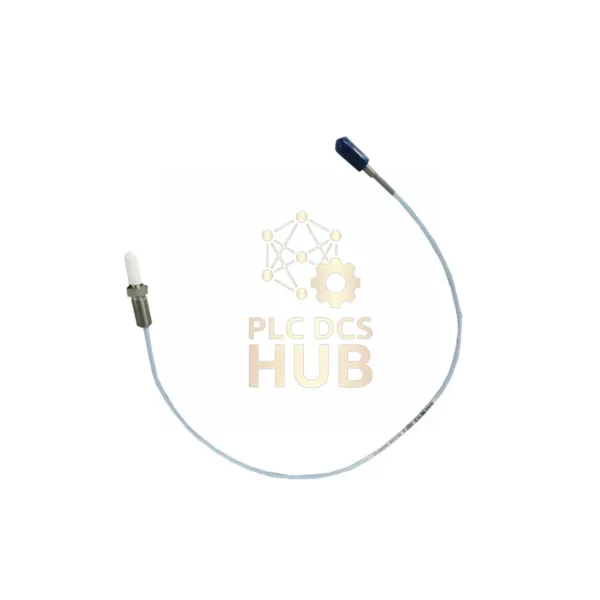

3300 NSv Reverse Mount Probe 330906-02-12-50-02-CN Bently Nevada

Description

Bently Nevada 3300 NSv Reverse Mount Probe: Compact Vibration Monitoring

5-meter industrial probe for space-constrained installations. U.S.-manufactured stainless steel construction. Withstands extreme temperatures from -52°C to +177°C. Country-specific certified.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Part Number: 330906-02-12-50-02-CN
• Suffix Configuration:
  • 02 = 3/8-24 UNF thread
  • 12 = FEP-insulated 75Ω cable
  • 50 = 5.0m (16.4 ft) length
  • 02 = ClickLoc connector
  • CN = Country-specific approvals
• Electrical Characteristics:
  • DC Resistance: 5.3Ω ±0.7Ω @25°C
  • Capacitance: 18pF/meter ±2pF
  • Shielding Effectiveness: >90dB @100MHz
• Mechanical Performance:
  • Vibration Resistance: 10g @ 50-2000Hz
  • Impact Rating: 100g @ 11ms duration
  • Cable Bend Radius: 30mm minimum
• Environmental Ratings:
  • IP68 when connector protected
  • UV Resistance: 1000+ hours sunlight
  • Chemical Exposure: Resists oils/solvents

Unique Technical Data

• Thermal Shock Performance: Withstands 50 cycles (-52°C ↔ +177°C) in <5 minutes
• Signal Stability: <0.5% output deviation after 1000+ thermal cycles
• Cable Flex Endurance: 250,000+ bends at 90° angle
• Thread Torque Rating: 12 N·m maximum installation torque

FAQ

Q: What does “50” mean in the part number?
A: Indicates 5.0 meter cable length (16.4 feet)

Q: Difference between CN and other approvals?
A: CN suffix indicates country-specific certifications (e.g., China GB, Russia TR CU)

Q: Minimum bend radius for cable?
A: 30mm (1.2 inches) to prevent internal damage

Q: Can I cut the cable to custom length?
A: No – cutting voids calibration and warranty

Q: Chemical resistance of FEP insulation?
A: Resists acids, bases, solvents up to 200°C

Q: Thread compatibility with metric fittings?
A: Requires adapter for M10x1.0 threads
