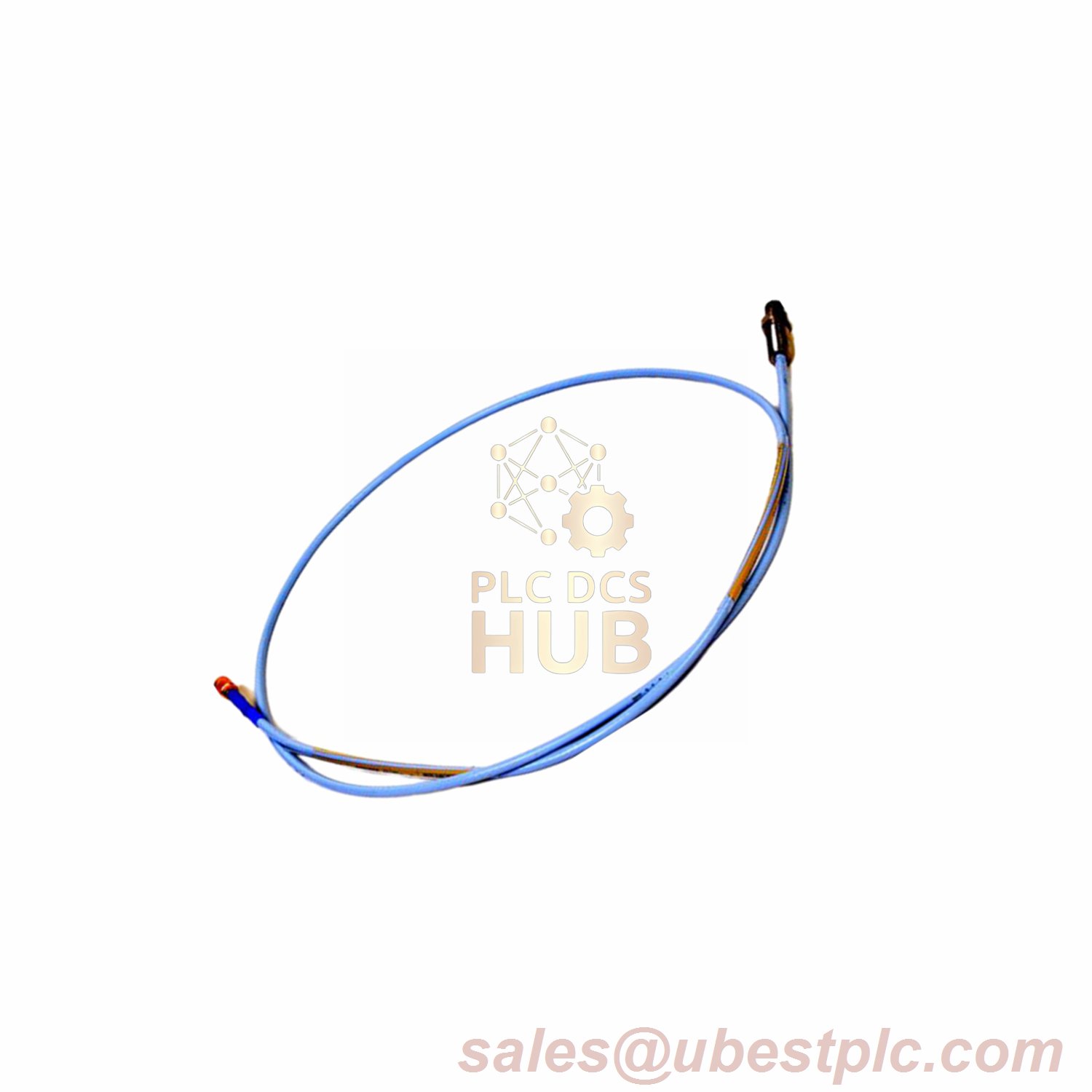

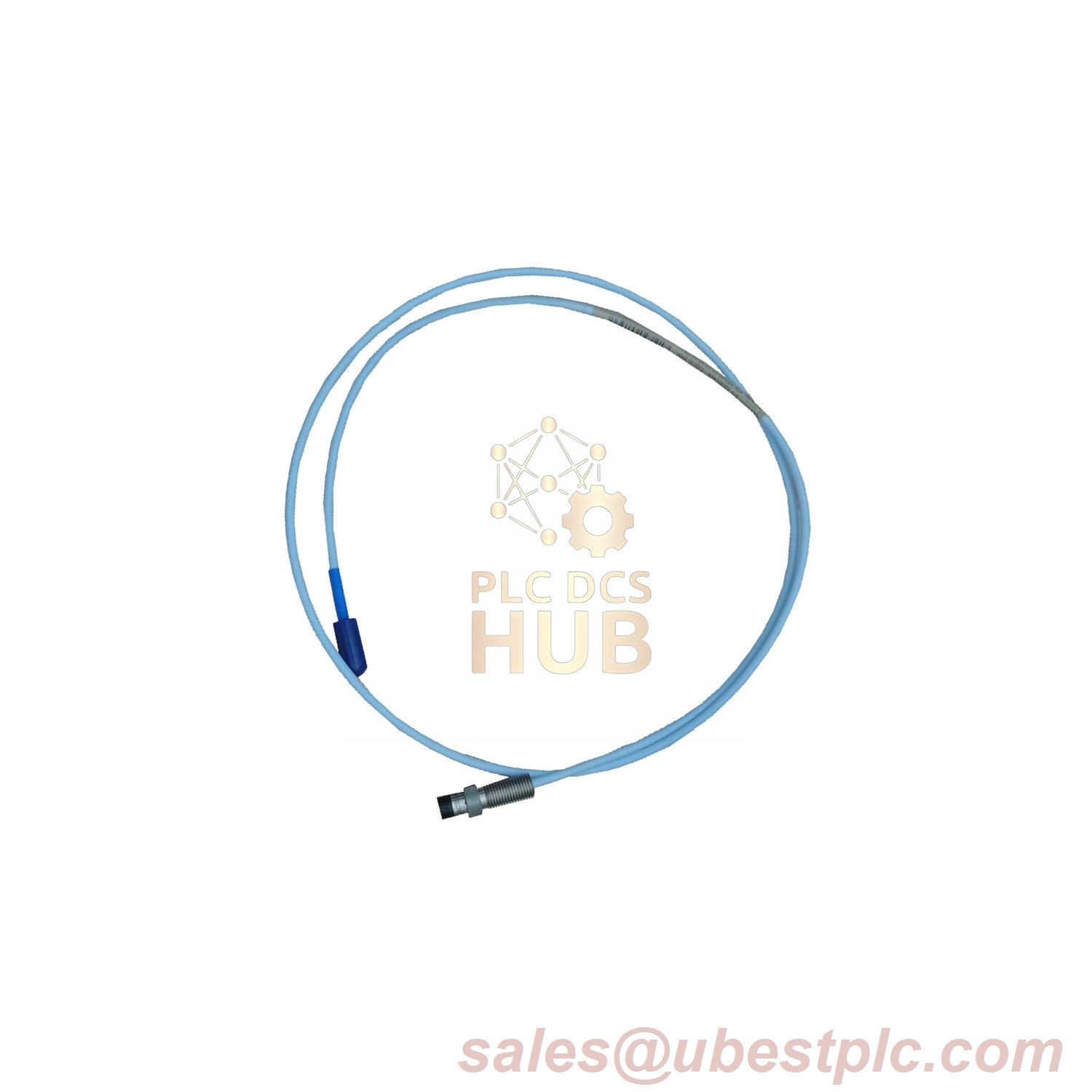

The 330105-02-12-15-12-00 is a reverse-mount proximity probe engineered for precision measurements in confined spaces. Featuring a 1.5-meter FluidLoc cable and 3/8-24 UNF threads, it operates in extreme temperatures (-52°C to +177°C) with Viton® pressure sealing. Ideal for industrial machinery requiring reliable gap detection and vibration monitoring.
Technical Specifications
| Model | 330105-02-12-15-12-00 |
|---|---|
| Thread Type | 3/8-24 UNF |
| Cable Length | 1.5 m (4.9 ft) with Miniature ClickLoc connector |
| Resistance | 7.73 Ω ±0.50 Ω (center to outer conductor) |
| Temperature Range | -52°C to +177°C (standard) / +260°C (cable, extended) |
| Weight | 323 g/m (11.4 oz/ft) |
Environmental Compliance
- Pressure Seal: Viton® O-ring rated for differential pressure (not pre-tested).
- Humidity Resistance: <3% ASF variation at 93% humidity (IEC 68-2-3).
- Agency Approvals: None (00 suffix) – general industrial use.
Installation Notes
- FluidLoc Advisory: Typically unnecessary due to probe sleeve protection.
- Thread Engagement: Max 0.563 in (14.3 mm) for 3/8-24 UNF threads.
Contact Information
For high-temperature customization or pressure seal testing:
Email: sales@ubestplc.com
