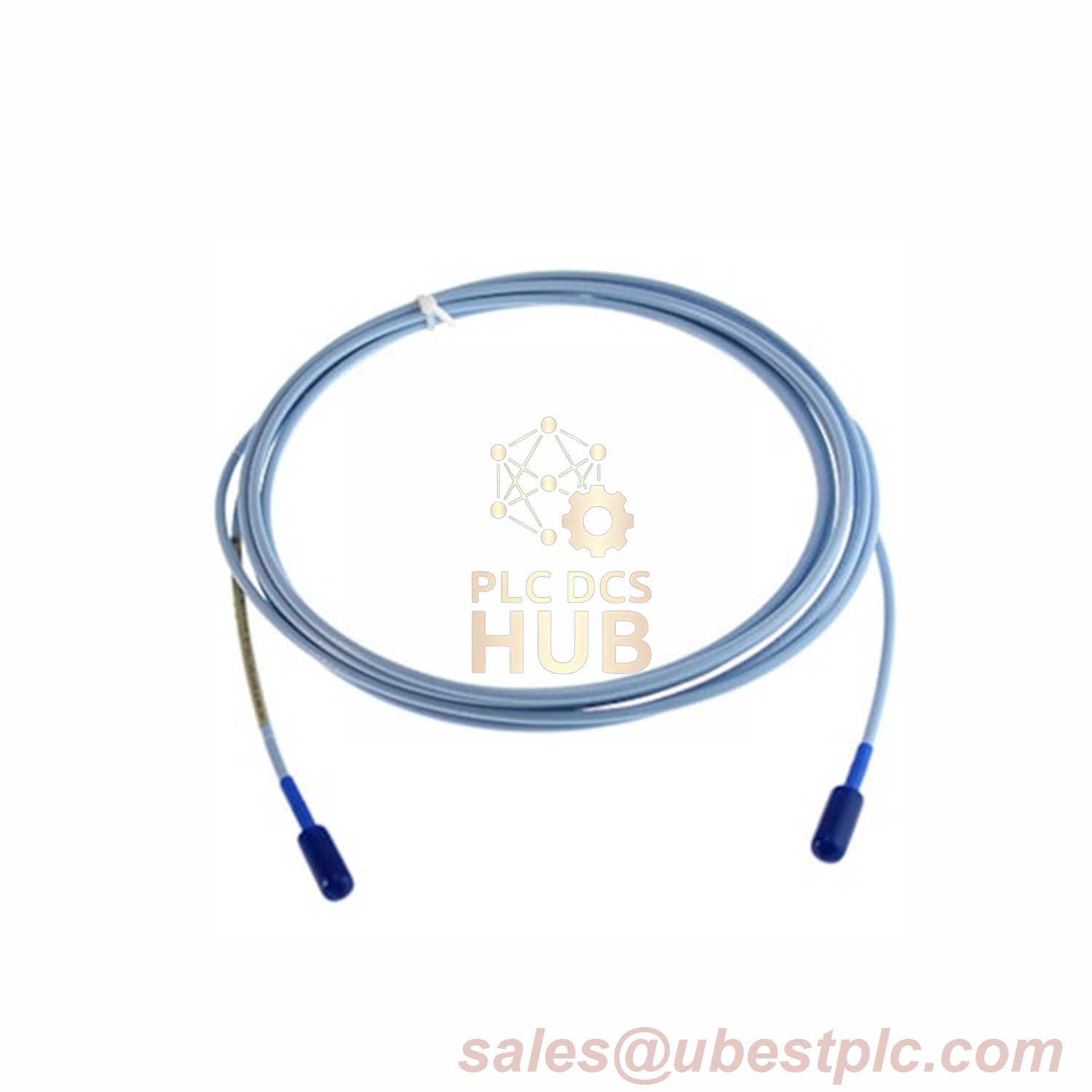

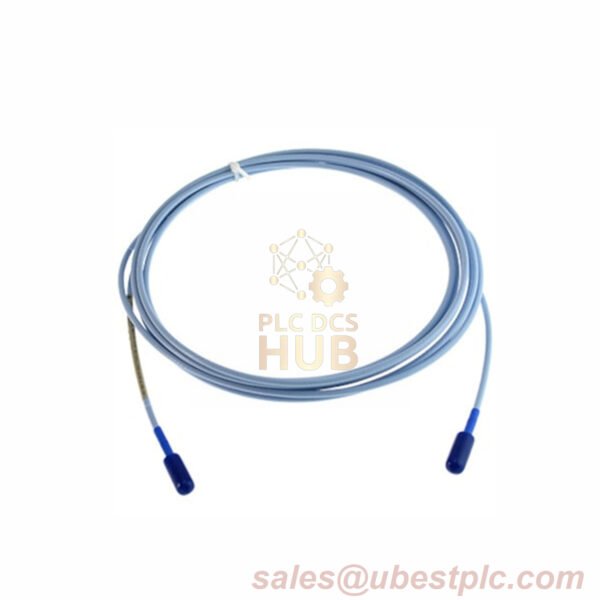

The Bently Nevada 330907-05-30-05-02-05 is a 3300 NSv Reverse Mount Probe designed for multi-certified hazardous environments. Featuring M10x1 threads, 0.5m standard cable, and global approvals, this probe combines chemical resistance with explosion-proof reliability. Engineered for process compressors, it delivers precision monitoring from -52°C to +177°C while maintaining secure connections through gold-plated ClickLoc™ technology.
Technical Specifications
- Model: 330907-05-30-05-02-05
- Suffix Code Breakdown:
- 05-30: M10x1 reverse-mount threads
- 05: 0.5 m (20″) cable length
- 02: Standard ClickLoc™ connector
- 05: CSA/ATEX/IECEx certified
- Electrical:
- DC Resistance: 4.0 Ω ±0.5 (0.5m length)
- Field Wiring: Triad shielded cable (16-24 AWG)
- Linear Range: 1.5 mm (60 mils) | Gap: 1.0 mm (40 mils)
- Output: -1 to -13 Vdc
- Mechanical:
- Tip Material: PPS (NACE MR0175 compliant)
- Housing: AISI 304 stainless steel
- Torque: 7.5 N·m (66 in·lb) recommended / 22.6 N·m max
- Weight: 14-150 g (0.5-5.3 oz)
- Environmental:
- Temperature: -52°C to +177°C (-62°F to +351°F)
- Certifications: CSA, ATEX II 3G, IECEx Ex ec IIC T4
- Sealing: Viton® O-ring (500 psi differential pressure)
