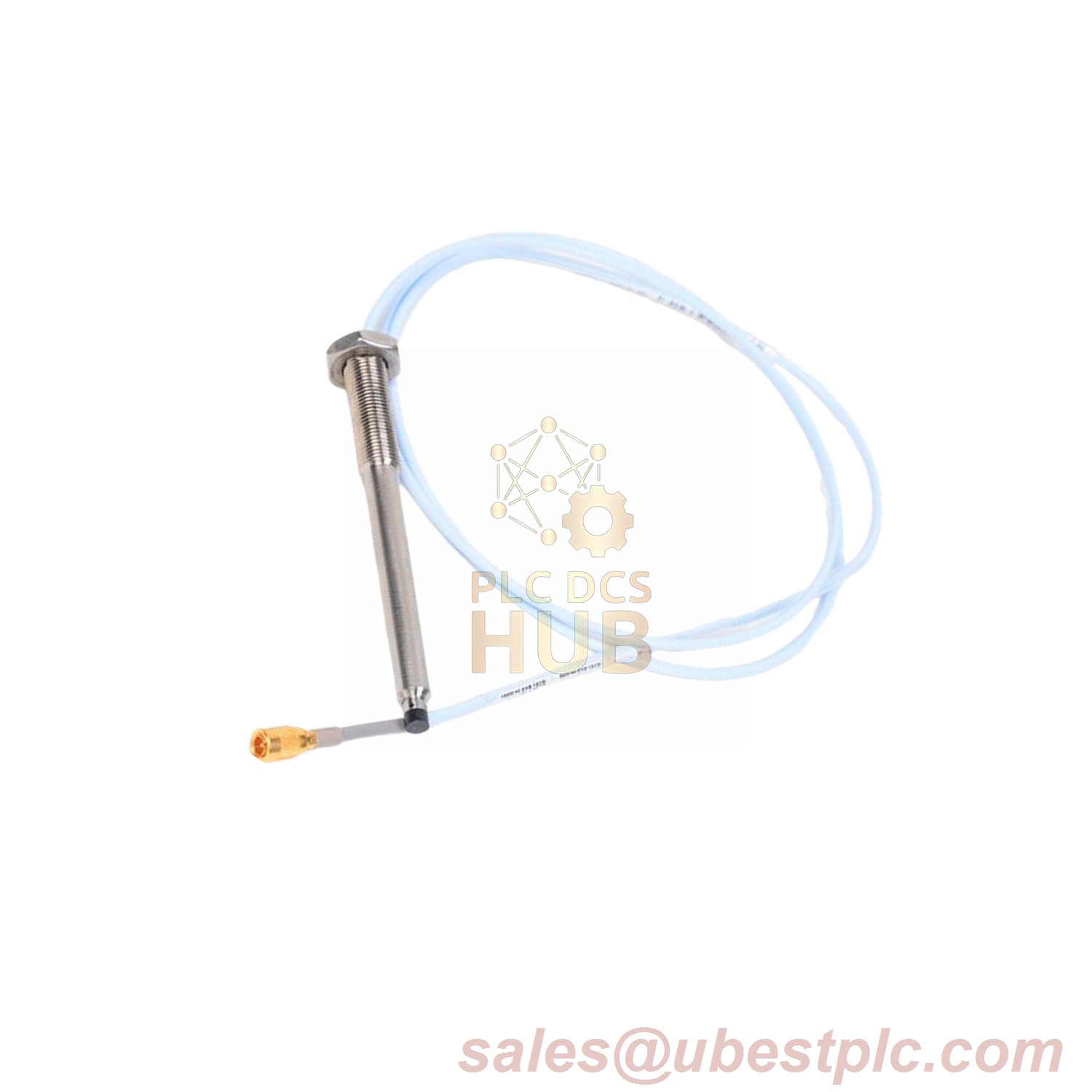

330905-00-15-05-02-00 Bently Nevada Proximity Probe

Description

Description

The Bently Nevada 330905-00-15-05-02-00 is a 3300 NSv Proximity Probe designed for precision vibration monitoring in extreme industrial environments. Featuring M10X1 threads and a 150 mm stainless steel case, this probe offers superior chemical resistance and signal stability compared to legacy 3300 RAM probes. Its reverse-mount design and Viton® O-ring ensure reliable performance in process compressors and other high-demand applications.

Technical Specifications

• Model: 330905-00-15-05-02-00
• Part Number Breakdown:
  • 330905: NSv Probe Base Model
  • -00: 0 mm Unthreaded Length
  • -15: 150 mm (5.9″) Case Length
  • -05: 0.5 m (20″) Total Cable Length
  • -02: ClickLoc™ Connector + Standard Cable
  • -00: No Agency Certifications Required
• Electrical:
  • Probe DC Resistance: 4.0 Ω ±0.5 (0.5m length)
  • Extension Cable Resistance: 0.220 Ω/m (Center), 0.066 Ω/m (Shield)
  • Capacitance: 69.9 pF/m
  • Linear Range: 1.5 mm (60 mils) | Gap Setting: 1.0 mm (40 mils)
  • Scale Factor: 7.87 V/mm ±12.5%/-20%
  • Frequency Response: 0-10 kHz (±3 dB)
• Mechanical:
  • Thread: M10X1 | Case Material: AISI 304 Stainless Steel
  • Torque Settings:
    • Full Thread Engagement: 33.9 N·m (300 in·lb) max / 11.3 N·m (100 in·lb) recommended
    • First 3 Threads: 22.6 N·m (200 in·lb) max / 7.5 N·m (66 in·lb) recommended
  • Bend Radius: 25.4 mm (1.0″)
  • Weight: 14-150 g (0.5-5.3 oz)
• Environmental:
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (500 psi differential)
  • Target Requirements: Min. 8.9 mm (0.35″) diameter

Key Applications

• Process gas compressors with H₂S/CO₂ exposure
• High-speed turbomachinery vibration monitoring
• API 670-compliant machinery protection systems
