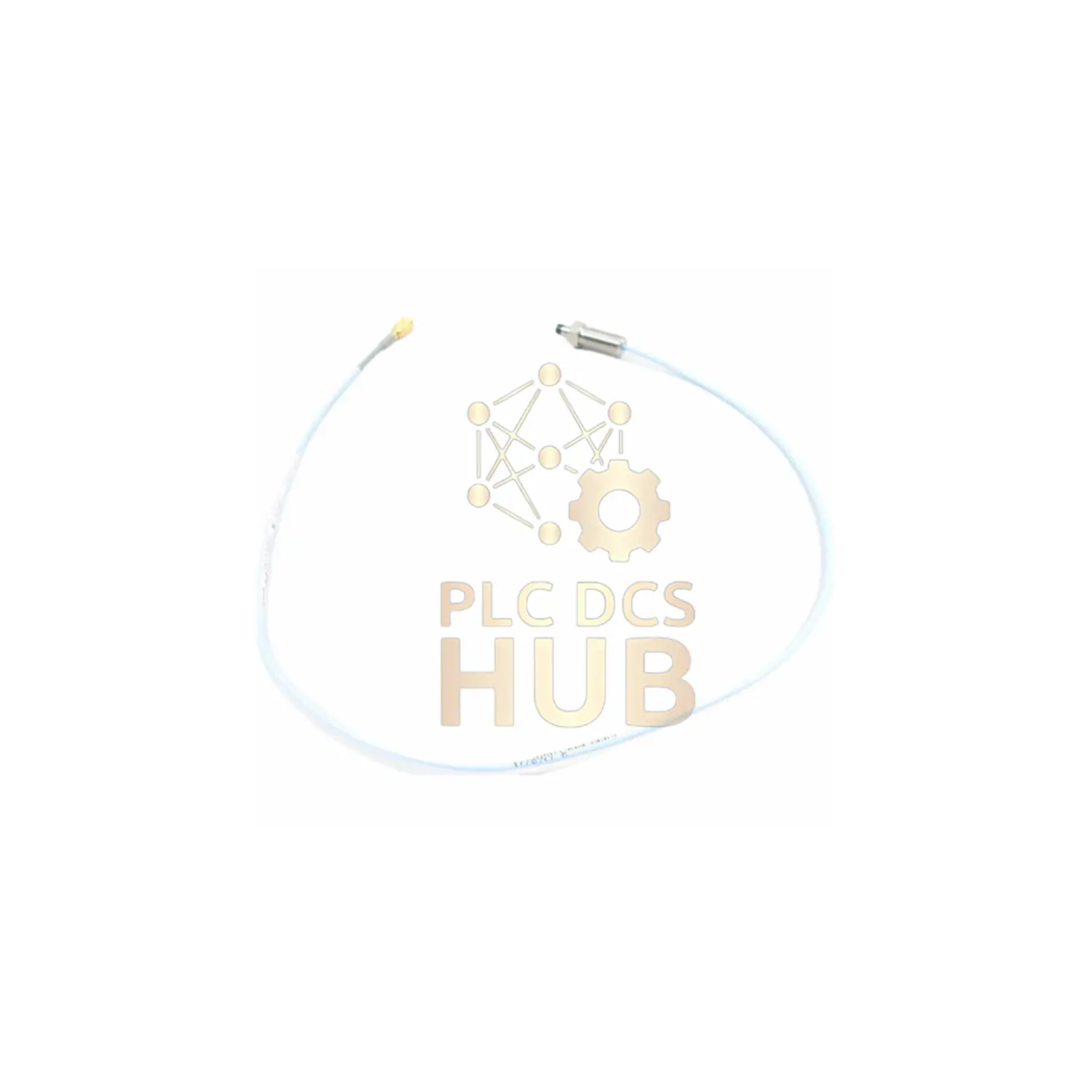

Bently Nevada 3300 NSv Reverse Mount Probe: Precision for Harsh Environments
Product Overview
Industrial-grade reverse-mount vibration probe for process compressors. Features enhanced chemical resistance and superior side-view performance vs. older models. Gold-plated ClickLoc connectors ensure secure wiring. Made in USA.
Key Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Reverse Mount
- Full Suffix: 330907-05-30-50-12-05
- Range: 0.25-1.75mm (10-70 mils)
- Output: -1 to -13 Vdc linear signal
- Temp Range: -52°C to +177°C
- Thread: M10x1 (15mm max engagement)
- Cable: 5.0m FluidLoc with ClickLoc connector
Critical Technical Data
- Probe Resistance: 5.3Ω ±0.7
- Recommended Gap: 1.0mm (40 mils)
- Housing Material: AISI 304 Stainless Steel
- Tip Material: PPS (Chemical-resistant)
- Max Torque: 22.6 N·m | Recommended: 7.5 N·m
Installation Guide
- Use shielded triad cable (max 305m)
- Wire gauge: 0.2-1.5mm² (16-24 AWG)
- Avoid sustained temps below -34°C to prevent seal damage
Compatibility
Works with 3300 XL NSv Proximitor Sensors. Fits M8x1, M10x1, 1/4-28, and 3/8-24 thread systems.
Certifications
Multiple agency approvals (Option 05). Certificate of Origin available.
Packaging & Warranty
- 1 x Probe assembly
- 12-month manufacturer warranty
Shipping Options
FedEx | UPS | DHL (Global delivery)
FAQ
Q: Minimum safe distance from target?
A: 0.25mm (10 mils)
Q: Pressure sealing method?
A: Viton O-ring for differential pressure
Q: Cable upgrade option?
A: FluidLoc cable prevents fluid ingress
